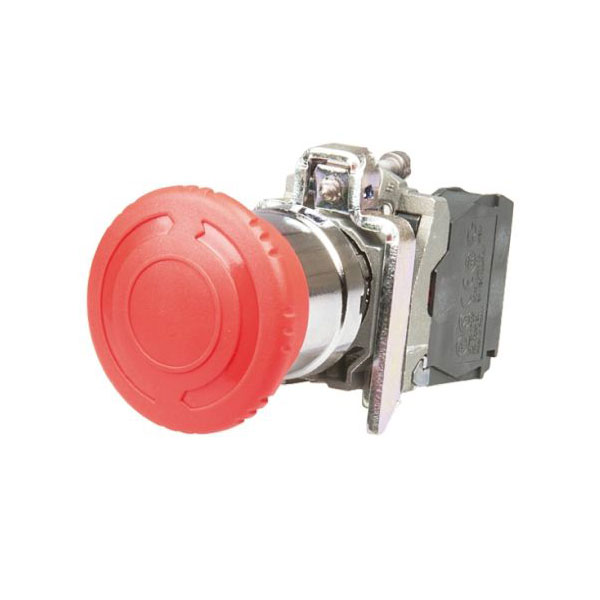

Voltage Protector Adjustable Over Under Voltage Protector Electric Power Protector

XB2 XB4 XB5 XB7 range optional IP65 IP67 waterproof Mushroom head Pushbutton Emergency stop switching off Push Button Switch

Brand Name:Newtrend or OEM brand
LED:Other
Place of Origin:China
Max. Current:15A
Model Number:XB2 XB4 XB5 XB7 range
Max. Voltage:400V
Certification:CCC, CE
Protection Level:indoor, IP65, IP67
SKU: 1770411095450722304 Category:
Description

XB2 XB4 XB5 XB7 range optional IP65 IP67 waterproof Mushroom head Pushbutton Emergency stop switching off Push Button Switch



Indoor type, IP65 type, IP67 type (optional)



Description Model Reference Number
XB2 range XB4 range XB5 range XB7 range
Spring return push button switch
NO flush white pushbutton switch XB2-BA11 XB4-BA11 XB5-AA11 XB7-NA11
NO flush black pushbutton switch XB2-BA21 XB4-BA21 XB5-AA21 XB7-NA21
NO flush green pushbutton switch XB2-BA31 XB4-BA31 XB5-AA31 XB7-NA31
NO flush yellow pushbutton switch XB2-BA51 XB4-BA51 XB5-AA51 XB7-NA51
NO flush blue pushbutton switch XB2-BA61 XB4-BA61 XB5-AA61 XB7-NA61
NC flush red pushbutton switch XB2-BA42 XB4-BA42 XB5-AA42 XB7-NA42
NO+NC flush green pushbutton switch XB2-BA35 XB4-BA35 XB5-AA35 XB7-NA35
NO+NC flush red pushbutton switch XB2-BA45 XB4-BA45 XB5-AA45 XB7-NA45
NO projecting black pushbutton switch XB2-BL21 XB4-BL21 XB5-AL21 XB7-NL21
NO projecting green pushbutton switch XB2-BL31 XB4-BL31 XB5-AL31 XB7-NL31
NO projecting yellow pushbutton switch XB2-BL51 XB4-BL51 XB5-AL51 XB7-NL51
NO projecting blue pushbutton switch XB2-BL61 XB4-BL61 XB5-AL61 XB7-NL61
NC projecting red pushbutton switch XB2-BL42 XB4-BL42 XB5-AL42 XB7-NL42
NO+NC projecting green pushbutton switch XB2-BL35 XB4-BL35 XB5-AL35 XB7-NL35
NO+NC projecting red pushbutton switch XB2-BL45 XB4-BL45 XB5-AL45 XB7-NL45
NO booted black pushbutton switch XB2-BP21 XB4-BP21 XB5-AP21 XB7-NP21
NO booted green pushbutton switch XB2-BP31 XB4-BP31 XB5-AP31 XB7-NP31
NO booted yellow pushbutton switch XB2-BP51 XB4-BP51 XB5-AP51 XB7-NP51
NO booted blue pushbutton switch XB2-BP61 XB4-BP61 XB5-AP61 XB7-NP61
NC booted red pushbutton switch XB2-BP42 XB4-BP42 XB5-AP42 XB7-NP42
NC+NC booted green pushbutton switch XB2-BP35 XB4-BP35 XB5-AP35 XB7-NP35
NC+NC booted red pushbutton switch XB2-BP45 XB4-BP45 XB5-AP45 XB7-NP45
NO flush green pushbutton switch, with symbol “I" XB2-BA3311 XB4-BA3311 XB5-AA3311 XB7-NA3311
NO flush white pushbutton switch, with symbol black arrow XB2-BA3341 XB4-BA3341 XB5-AA3341 XB7-NA3341
NO flush black pushbutton switch, with symbol white arrow XB2-BA3351 XB4-BA3351 XB5-AA3351 XB7-NA3351
NC flush red pushbutton switch, with symbol "O" XB2-BA4322 XB4-BA4322 XB5-AA4322 XB7-NA4322
NC flush red pushbutton switch, with symbol "Stop" XB2-BA4342 XB4-BA4342 XB5-AA4342 XB7-NA4342
NC projecting red pushbutton switch, with symbol "O" XB2-BL4322 XB4-BL4322 XB5-AL4322 XB7-NL4322
NC projecting red pushbutton switch, with symbol "Stop" XB2-BL4342 XB4-BL4342 XB5-AL4342 XB7-NL4342

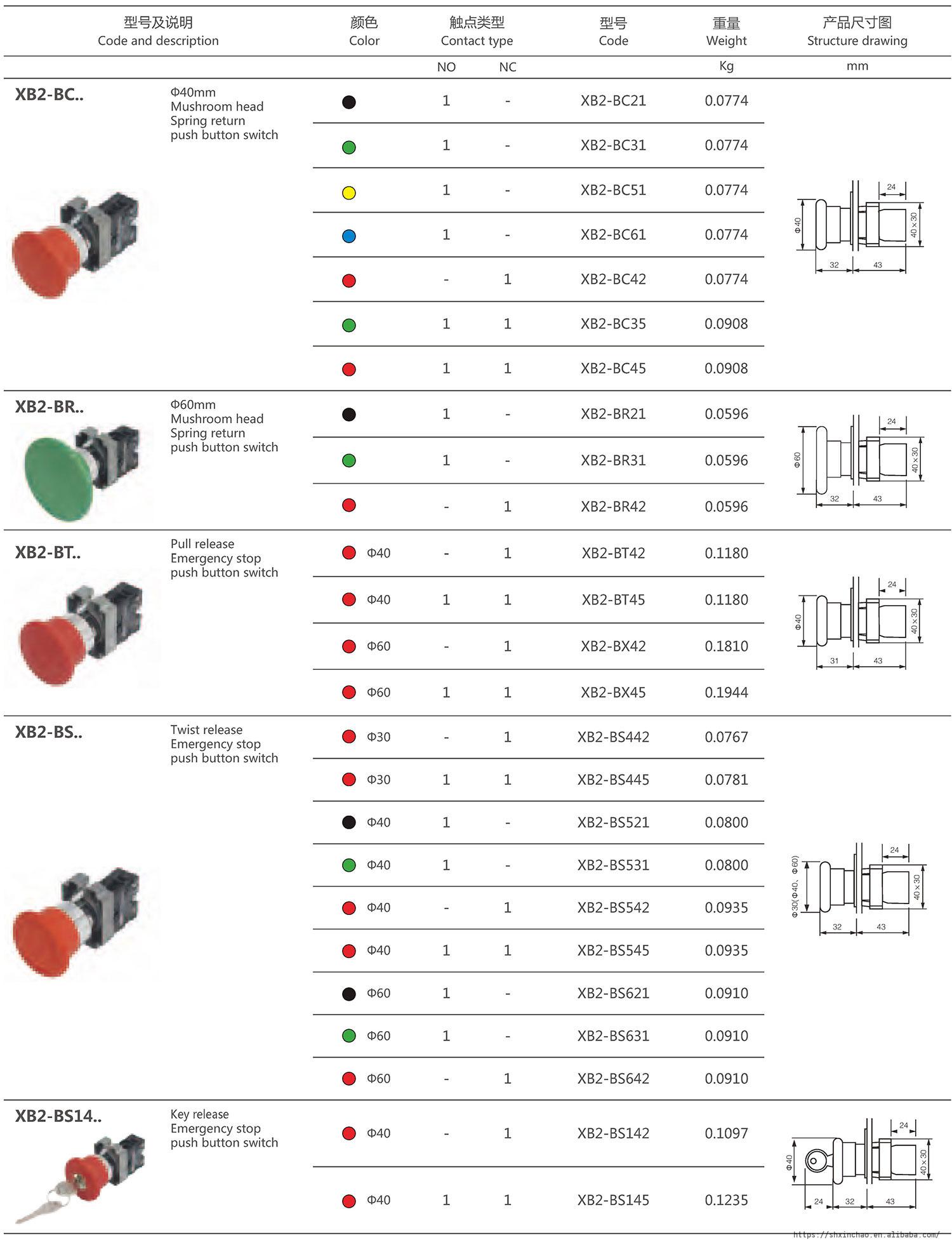

NO 40mm mushroom head black pushbutton switch XB2-BC21 XB4-BC21 XB5-AC21 XB7-NC21
NO 40mm mushroom head green pushbutton switch XB2-BC31 XB4-BC31 XB5-AC31 XB7-NC31
NO 40mm mushroom head yellow pushbutton switch XB2-BC51 XB4-BC51 XB5-AC51 XB7-NC51
NO 40mm mushroom head blue pushbutton switch XB2-BC61 XB4-BC61 XB5-AC61 XB7-NC61
NC 40mm mushroom head red pushbutton switch XB2-BC42 XB4-BC42 XB5-AC42 XB7-NC42
NO+NC 40mm mushroom head green pushbutton switch XB2-BC35 XB4-BC35 XB5-AC35 XB7-NC35
NO+NC 40mm mushroom head red pushbutton switch XB2-BC45 XB4-BC45 XB5-AC45 XB7-NC45
NO 60mm mushroom head black pushbutton switch XB2-BR21 XB4-BR21 XB5-AR21 XB7-NR21
NO 60mm mushroom head green pushbutton switch XB2-BR31 XB4-BR31 XB5-AR31 XB7-NR31
NC 60mm mushroom head red pushbutton switch XB2-BR42 XB4-BR42 XB5-AR42 XB7-NR42
NO+NC 60mm mushroom head green pushbutton switch XB2-BR35 XB4-BR35 XB5-AR35 XB7-NR35
NO+NC 60mm mushroom head red pushbutton switch XB2-BR45 XB4-BR45 XB5-AR45 XB7-NR45
Emergency stop push button switch
NC pull release 40mm mushroom head emergency stop pushbutton XB2-BT42 XB4-BT42 XB5-AT42 XB7-NT42
NO+NC pull release 40mm mushroom head emergency stop pushbutton XB2-BT45 XB4-BT45 XB5-AT45 XB7-NT45
NC pull release 60mm mushroom head emergency stop pushbutton XB2-BX42 XB4-BX42 XB5-AX42 XB7-NX42
NO+NC pull release 60mm mushroom head emergency stop pushbutton XB2-BX45 XB4-BX45 XB5-AX45 XB7-NX45
NC twist release 30mm mushroom head emergency stop pushbutton XB2-BS442 XB4-BS442 XB5-AS442 XB7-NS442
NO+NC twist release 30mm mushroom head emergency stop pushbutton XB2-BS445 XB4-BS445 XB5-AS445 XB7-NS445
NC twist release 40mm mushroom head emergency stop pushbutton XB2-BS542 XB4-BS542 XB5-AS542 XB7-NS542
NC twist release 60mm mushroom head emergency stop pushbutton XB2-BS642 XB4-BS642 XB5-AS642 XB7-NS642
NC key release 30mm mushroom head emergency stop pushbutton XB2-BS742 XB4-BS742 XB5-AS742 XB7-NS742
NC key release 40mm mushroom head emergency stop pushbutton XB2-BS142 XB4-BS142 XB5-AS142 XB7-NS142
NC key release 60mm mushroom head emergency stop pushbutton XB2-BS242 XB4-BS242 XB5-AS242 XB7-NS242
Selector Switches (standard handle)
NO 2 position stay put selector switch XB2-BD21 XB4-BD21 XB5-AD21 XB7-ND21
NO+NC 2 position stay put selector switch XB2-BD25 XB4-BD25 XB5-AD25 XB7-ND25
NO 2 position spring return selector switch XB2-BD41 XB4-BD41 XB5-AD41 XB7-ND41
NO+NC 2 position spring return selector switch XB2-BD45 XB4-BD45 XB5-AD45 XB7-ND45
2NO 3 position stay put selector switch XB2-BD33 XB4-BD33 XB5-AD33 XB7-ND33
2NO 3 position spring return selector switch XB2-BD53 XB4-BD53 XB5-AD53 XB7-ND53
2NO 3 position left spring return right stay put selector switch XB2-BD73 XB4-BD73 XB5-AD73 XB7-ND73
2NO 3 position left stay put right spring return selector switch XB2-BD83 XB4-BD83 XB5-AD83 XB7-ND83
Selector Switches (long handle)
NO 2 position stay put selector switch XB2-BJ21 XB4-BJ21 XB5-AJ21 XB7-NJ21
NO+NC 2 position stay put selector switch XB2-BJ25 XB4-BJ25 XB5-AJ25 XB7-NJ25
NO 2 position spring return selector switch XB2-BJ41 XB4-BJ41 XB5-AJ41 XB7-NJ41
NO+NC 2 position spring return selector switch XB2-BJ45 XB4-BJ45 XB5-AJ45 XB7-NJ45
2NO 3 position stay put selector switch XB2-BJ33 XB4-BJ33 XB5-AJ33 XB7-NJ33
2NO 3 position spring return selector switch XB2-BJ53 XB4-BJ53 XB5-AJ53 XB7-NJ53
2NO 3 position left spring return right stay put selector switch XB2-BJ73 XB4-BJ73 XB5-AJ73 XB7-NJ73
2NO 3 position left stay put right spring return selector switch XB2-BJ83 XB4-BJ83 XB5-AJ83 XB7-NJ83
Key Switches
NO 2 position stay put left removal key selector XB2-BG21 XB4-BG21 XB5-AG21 XB7-NG21
NO 2 position stay put left & right removal key selector XB2-BG41 XB4-BG41 XB5-AG41 XB7-NG41
NO+NC 2 position stay put left removal key selector XB2-BG25 XB4-BG25 XB5-AG25 XB7-NG25
NO+NC 2 position stay put left & right removal key selector XB2-BG45 XB4-BG45 XB5-AG45 XB7-NG45
NO 2 position spring return left removal key selector XB2-BG61 XB4-BG61 XB5-AG61 XB7-NG61
NO+NC 2 position spring return left removal key selector XB2-BG65 XB4-BG65 XB5-AG65 XB7-NG65
2NO 3 position stay put center removal key selector XB2-BG33 XB4-BG33 XB5-AG33 XB7-NG33
2NO 3 position stay put left & right removal key selector XB2-BG53 XB4-BG53 XB5-AG53 XB7-NG53
2NO 3 position stay put left & center & right removal key selector XB2-BG63 XB4-BG63 XB5-AG63 XB7-NG63
2NO 3 position spring return center removal key selector XB2-BG73 XB4-BG73 XB5-AG73 XB7-NG73



XB2 range Emergency stop push button switches:





XB4 range Emergency stop push button switches:

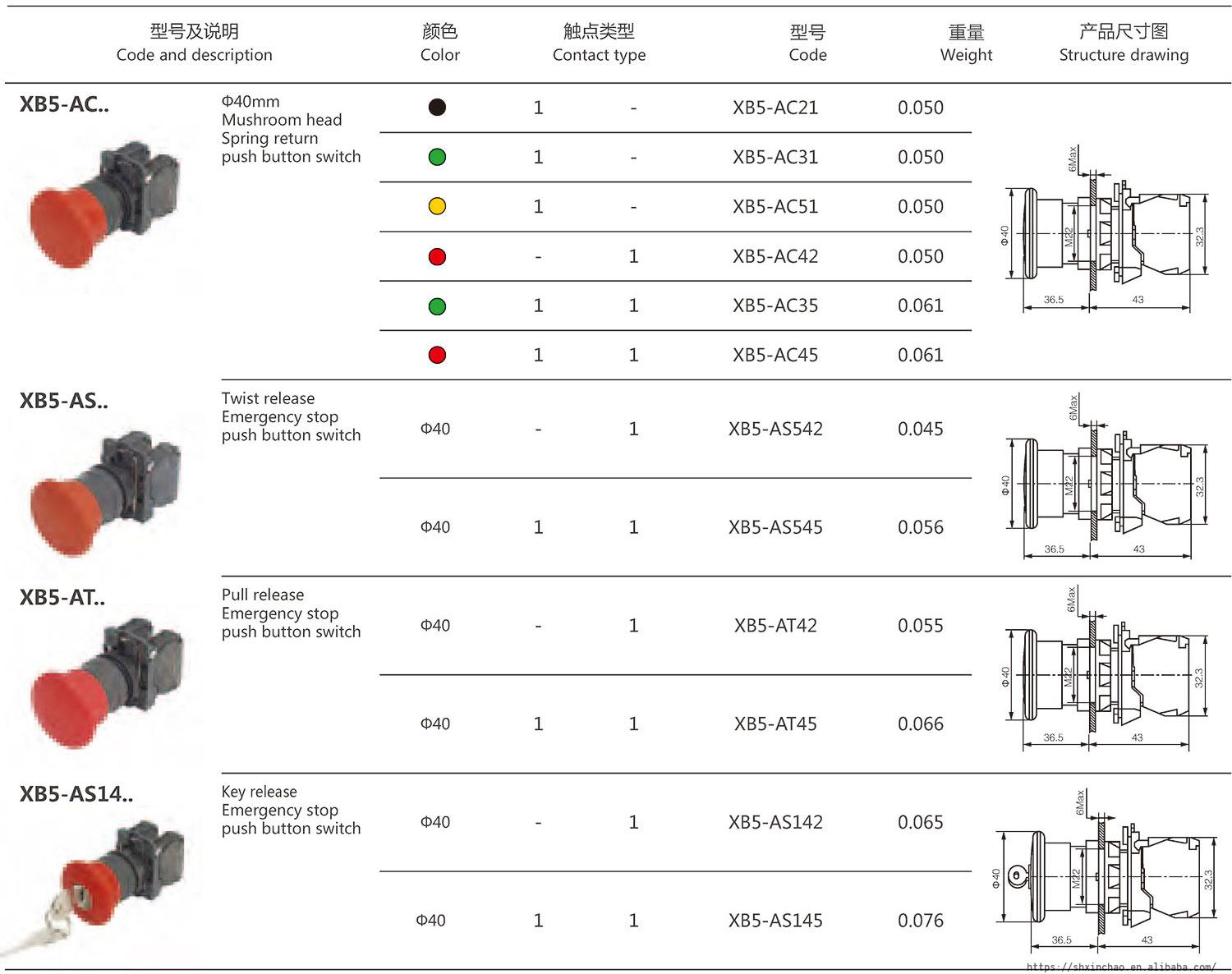

XB5 range Emergency stop push button switches:
