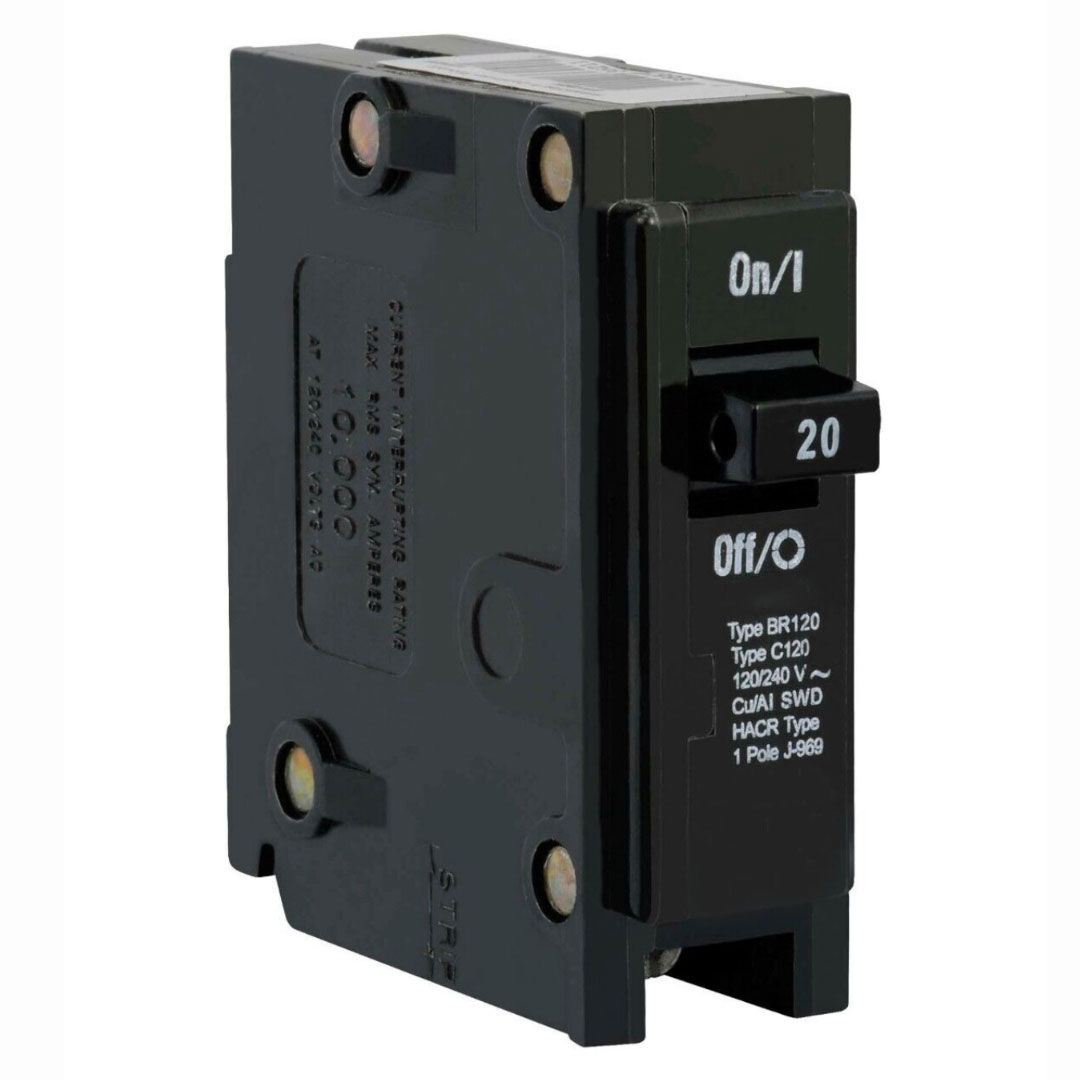

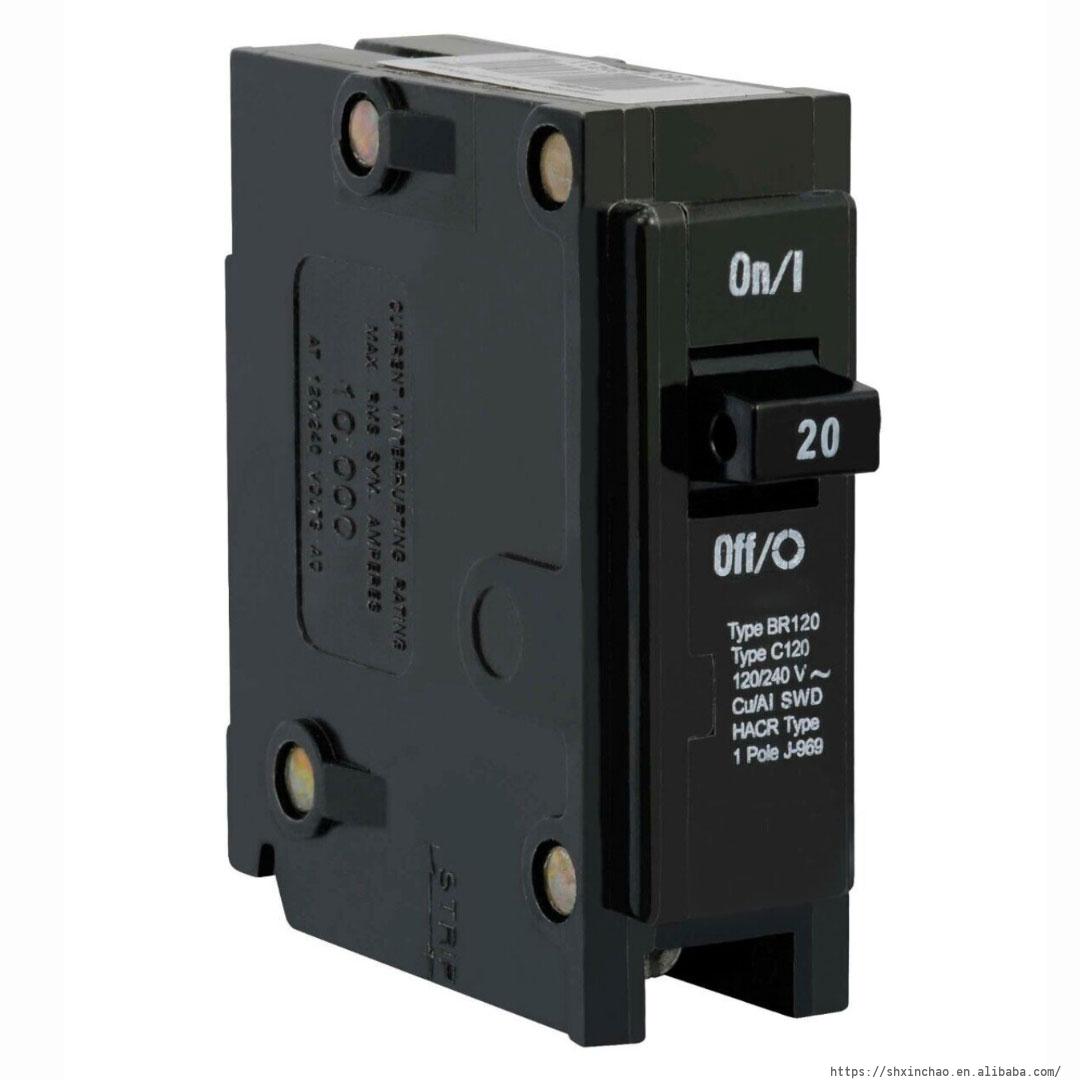

Type BR BR110 BR115 BR120 BR125 BR130 BR140 BR150 BR160 BR170 1 Pole 10 20 30 40 50 60 Amp Plug on Type BR Circuit Breaker

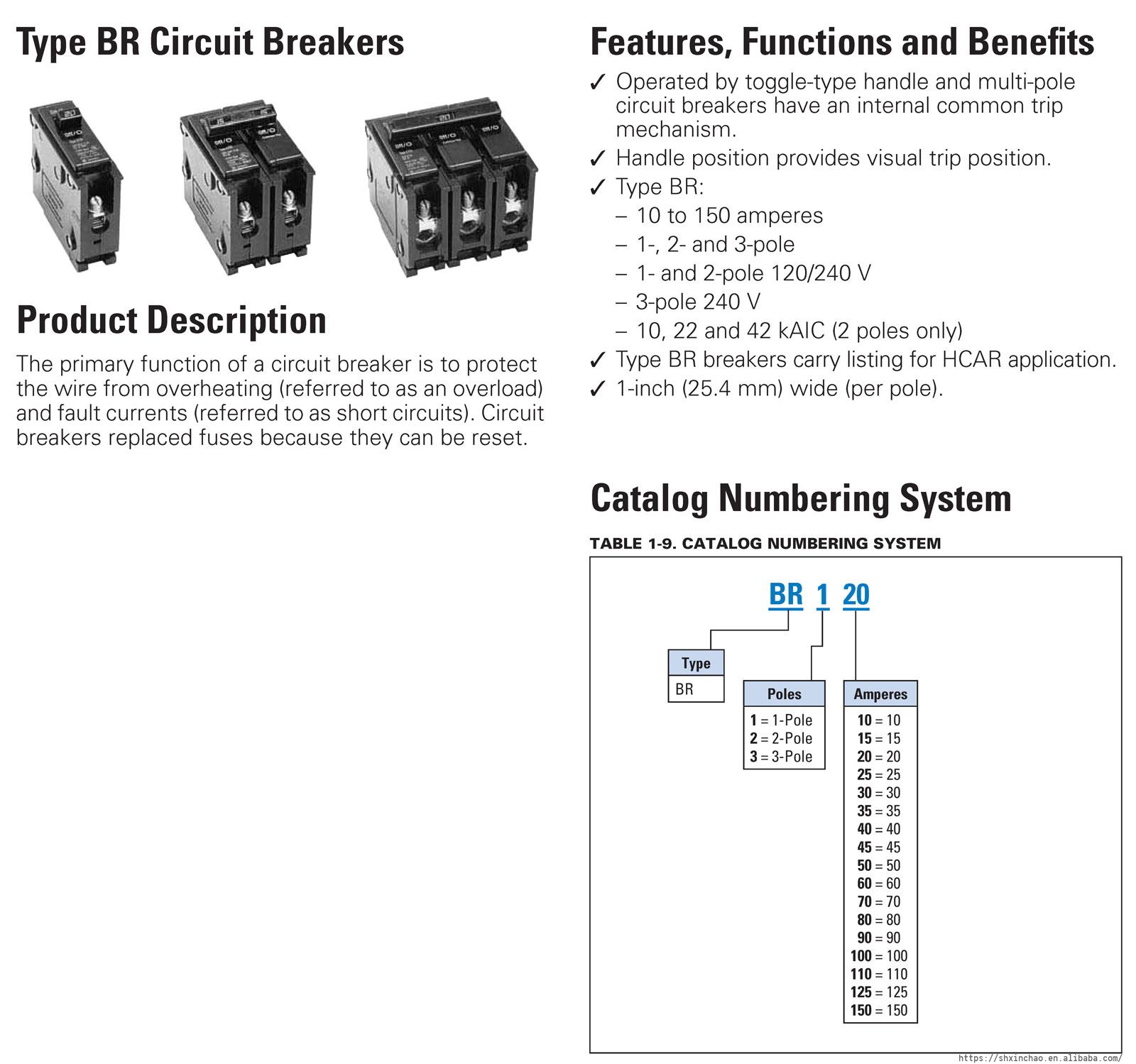

Type BR Circuit Breakers
– Operated by toggle-type handle and multi-pole circuit breakers have an internal common trip mechanism.
– Handle position provides visual trip position.
– Type BR:
10 to 125 amperes
1 pole, 2 pole and 3 pole
1 pole, 2 pole: 120/240 V
3 pole: 240 V
10 kAIC
– Type BR breakers carry listing for HCAR application.
– 1-inch (25.4 mm) wide (per pole).
| Type BR Plug-on Circuit Breakers | ||||
  |
Ampere Rating | Catalog Number | ||
| Single-Pole 120/240 Vac |

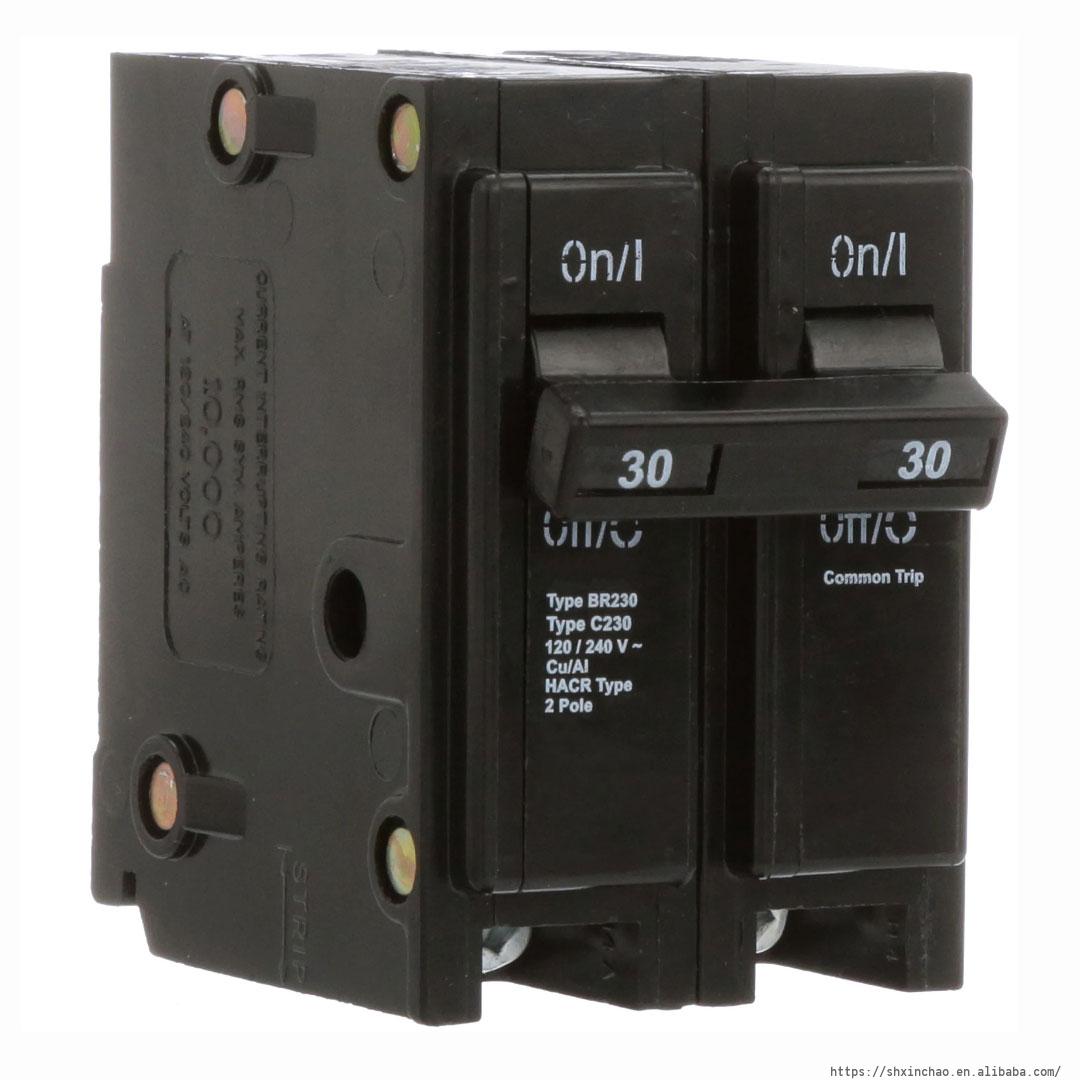

Two-Pole 120/240 Vac |
Three-Pole 240 Vac |
||
| 10A | BR110 | BR210 | BR310 | |
| 15A | BR115 | BR215 | BR315 | |
| 20A | BR120 | BR220 | BR320 | |
| 25A | BR125 | BR225 | BR325 | |
| 30A | BR130 | BR230 | BR330 | |
| 35A | BR135 | BR235 | BR335 | |
| 40A | BR140 | BR240 | BR340 | |
| 45A | BR145 | BR245 | BR345 | |
| 50A | BR150 | BR250 | BR350 | |
| 60A | BR160 | BR260 | BR360 | |
| 70A | BR170 | BR270 | BR370 | |
| 80A | BR280 | BR380 | ||
| 90A | BR290 | BR390 | ||
| 100A | BR2100 | BR3100 | ||
| 125A | BR2125 | |||
