NewTrend / OEM · Load center
Product overview
This NewTrend / OEM listing identifies a TLM1212CCU-reference load center. Select the exact enclosure, mounting style, main arrangement and panel configuration.
Technical selection summary
| Listing / reference model | TLM1212CCU |
|---|---|
| Product type | Load center |
Physical spaces, half-width breaker positions and approved circuit count are different selection limits. Verify the exact panel label, permissible breaker positions, main rating and service-entrance arrangement. GE-type references do not establish GE/ABB manufacture, certification or approved interchangeability. Confirm the enclosure material/thickness and finish, flush or surface mounting, knockouts, neutral/earth bars, bus/incomer arrangement and matching breaker system. Indoor/outdoor protection and service-entrance use require documentation for the complete assembly; convertible designs require the correct documented kit.

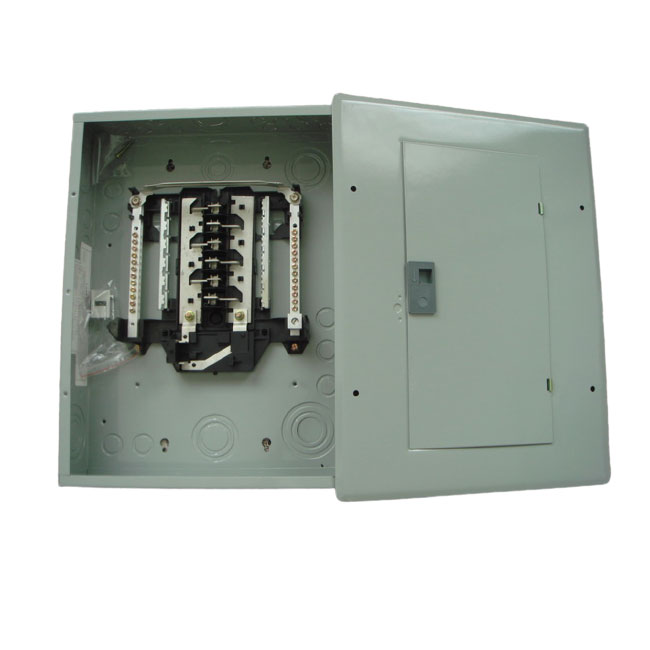

Product reference images and drawings
Use the matching model and version in the reference data. Confirm the applicable rating, test conditions and dimensions against the exact supplied unit.
| Reference Pictures | Main Ampere Rating | Part Number | Max Spaces for 1” Breakers | Max Spaces for 1/2″ Breakers | Enclosure Type | Type | Optional Door | ||
| 1P | 2P | 1P | 2P | ||||||
 | 40A | TL240SCU | 2 | 1 | 4 | 1 | Surface | Main Lug | – |
| 70A | TL270SCU | 2 | 1 | 4 | 1 | Surface | Main Lug | – | |
 | 125A | TL412C | 4 | 2 | 8 | 3 | Combination | Main Lug | – |
 | TL612FCU | 6 | 3 | 12 | 4 | Flush | Main Lug | – | |
| TL812FCU | 8 | 4 | 16 | 8 | Flush | Main Lug | – | ||
| TL612SCU | 6 | 3 | 12 | 4 | Surface | Main Lug | – | ||
| TL812SCU | 8 | 4 | 16 | 8 | Surface | Main Lug | – | ||
 | TLM612FCU | 6 | 3 | 12 | 4 | Flush | Convertible | – | |
| TLM812FCU | 8 | 4 | 16 | 8 | Flush | Convertible | – | ||
| TLM612SCU | 6 | 3 | 12 | 4 | Surface | Convertible | – | ||
| TLM812SCU | 8 | 4 | 16 | 8 | Surface | Convertible | – | ||
 | TL612FCUD | 6 | 3 | 12 | 4 | Flush | Main Lug | with Optional Door | |
| TL812FCUD | 8 | 4 | 16 | 8 | Flush | Main Lug | with Optional Door | ||
| TL612SCUD | 6 | 3 | 12 | 4 | Surface | Main Lug | with Optional Door | ||
| TL812SCUD | 8 | 4 | 16 | 8 | Surface | Main Lug | with Optional Door | ||
| TLM612FCUD | 6 | 3 | 12 | 4 | Flush | Convertible | with Optional Door | |
| TLM812FCUD | 8 | 4 | 16 | 8 | Flush | Convertible | with Optional Door | ||
| TLM612SCUD | 6 | 3 | 12 | 4 | Surface | Convertible | with Optional Door | ||
| TLM812SCUD | 8 | 4 | 16 | 8 | Surface | Convertible | with Optional Door | ||
 | TLM1212CCU | 12 | 6 | 24 | 10 | Combination | Convertible | – | |
 | 200A | TLM1620CCU | 16 | 8 | 32 | 14 | Combination | Convertible | – |
| TLM2020CCU | 20 | 10 | 40 | 18 | Combination | Convertible | – | ||
