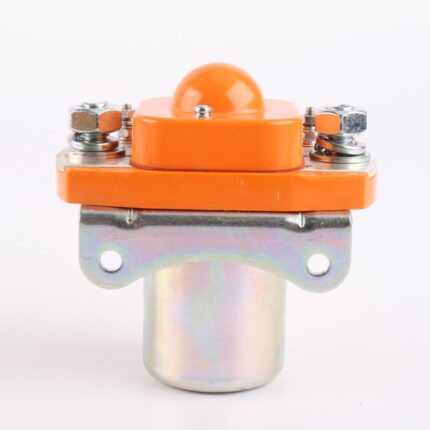

Shanghai NewTrend Electric 400A 48V DC Contactor General Electric Contactor Used In Small Electric Vehicles ZJ400D
Back to products
Newtrend H67be919e97854a8fbc08817700ab4954k - UL CE Certified Low Voltage Electrical Product, 20+ Years Manufacturing Experience

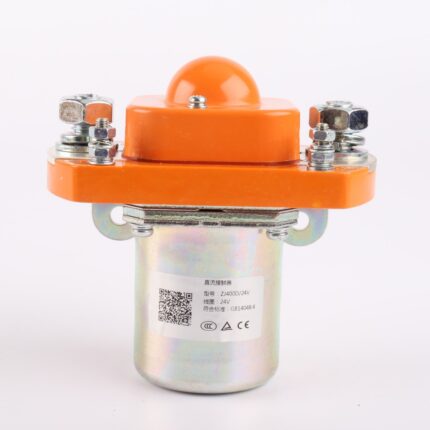

Shanghai NewTrend Electric DC contactor Orange 400A electrical mini dc series contactor SZJ400A-D/ MZJ-400D/ ZJ400D

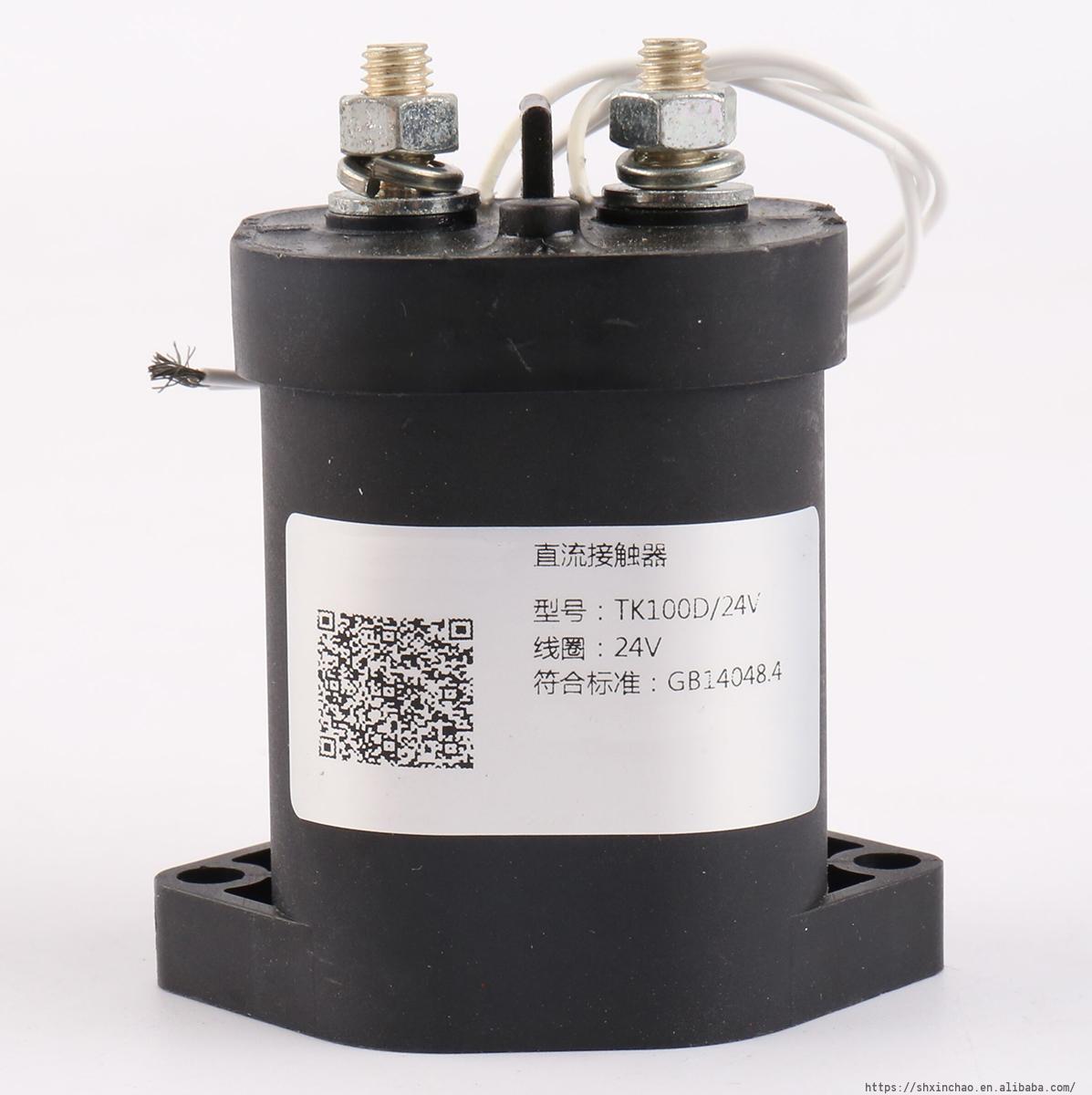

TK100D 100A 200V 250V 500V 750V DC SPST EV Charging pile station Lithium battery pack charger High Voltage DC Contactors

Electricity Type:DC
Brand Name:NewTrend or OEM
Place of Origin:China
Model Number:TK100D
Phase:1
Main Circuit Rating Current:100A
SKU: 1600166591307 Category:
Description

TK100D 100A 200V 250V 500V 750V DC SPST EV Charging pile station Lithium battery pack charger High Voltage DC Contactor


Application:

The products TK100D are mainly used to control switching on/off power supply of Storage battery car, EV Charging pile, Lithium battery pack, Electric forklift, Electric winch, Electric Car, Excavator, Air conditioner in vehicle, power source for communication facility.

Features

 The main circuit and coil input of the product are non-polar.



Additional information
Weight 2 kg
Dimensions 25 × 25 × 25 cm
Number of Pole

1
Main Circuit Rating Voltage

12V, 24V
