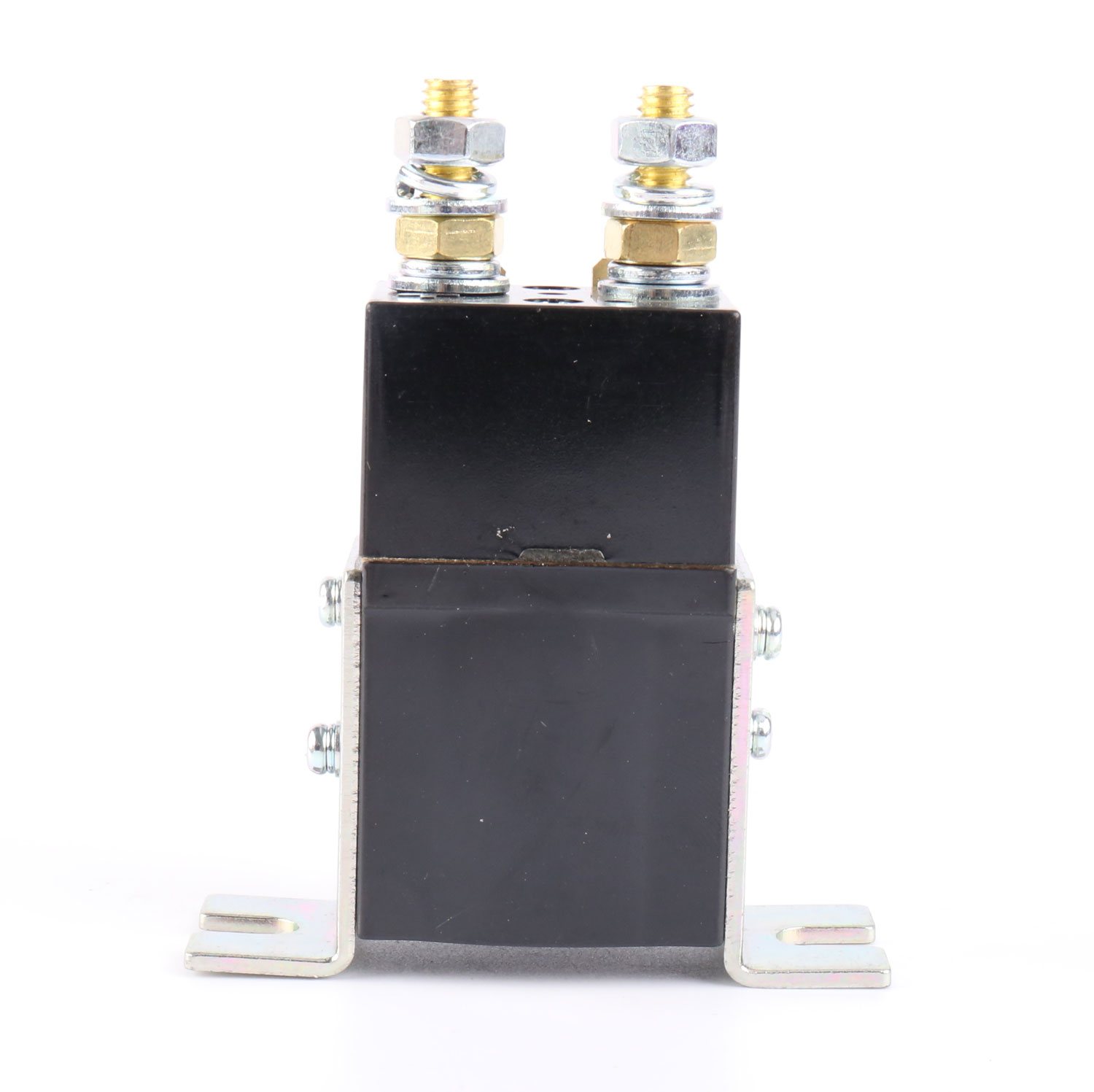

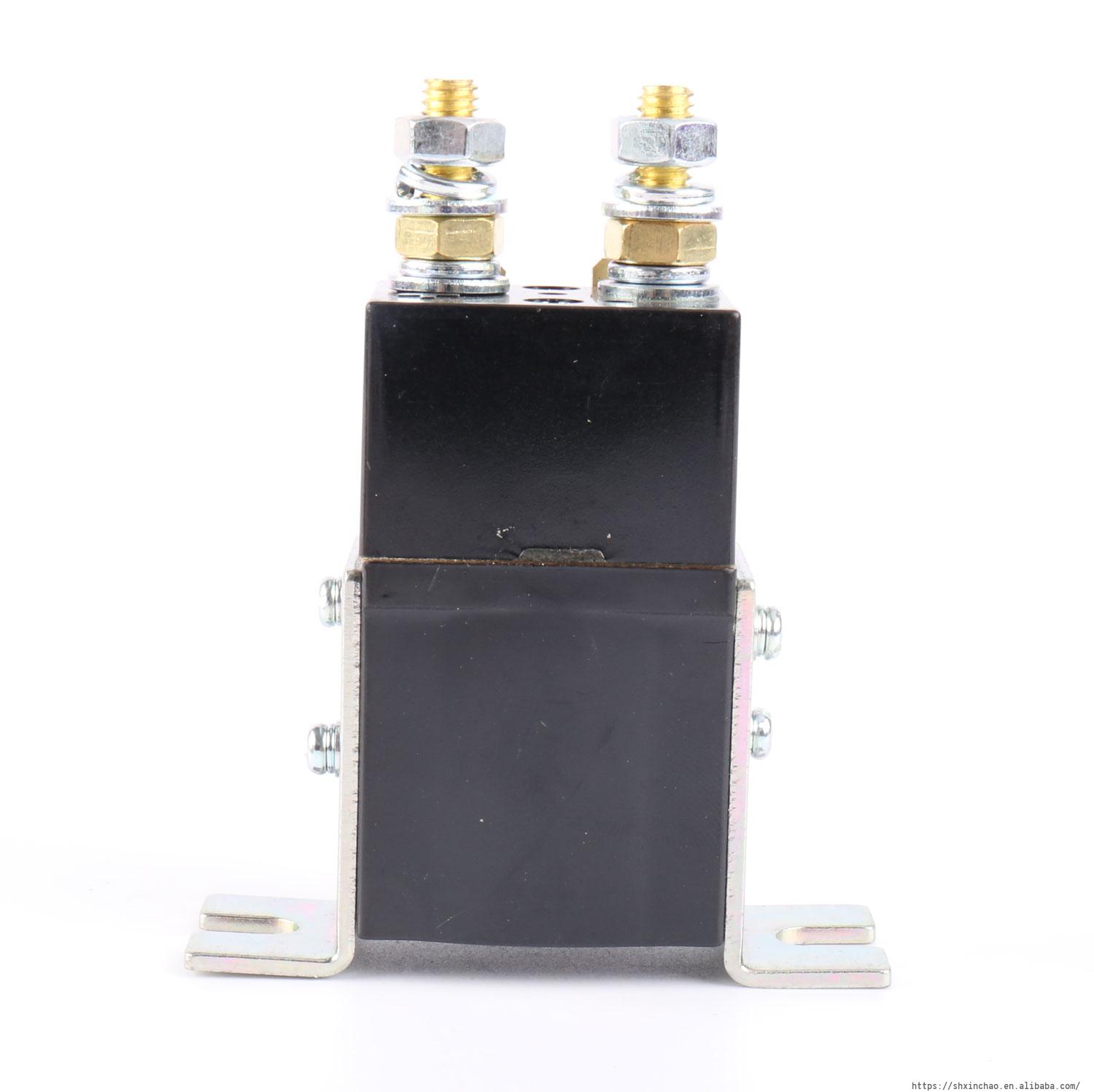

The SW60 is a miniature series Single pole DC Contactor – free standing and compact it is designed to fill the gap between 30 ampere relays and 100 ampere contactors. Devised for both interrupted and uninterrupted loads, the SW60 is suitable for switching Resistive, Capacitive and Inductive loads. Typical applications include switching small traction motors, hydraulic power packs and small electric winch motors.

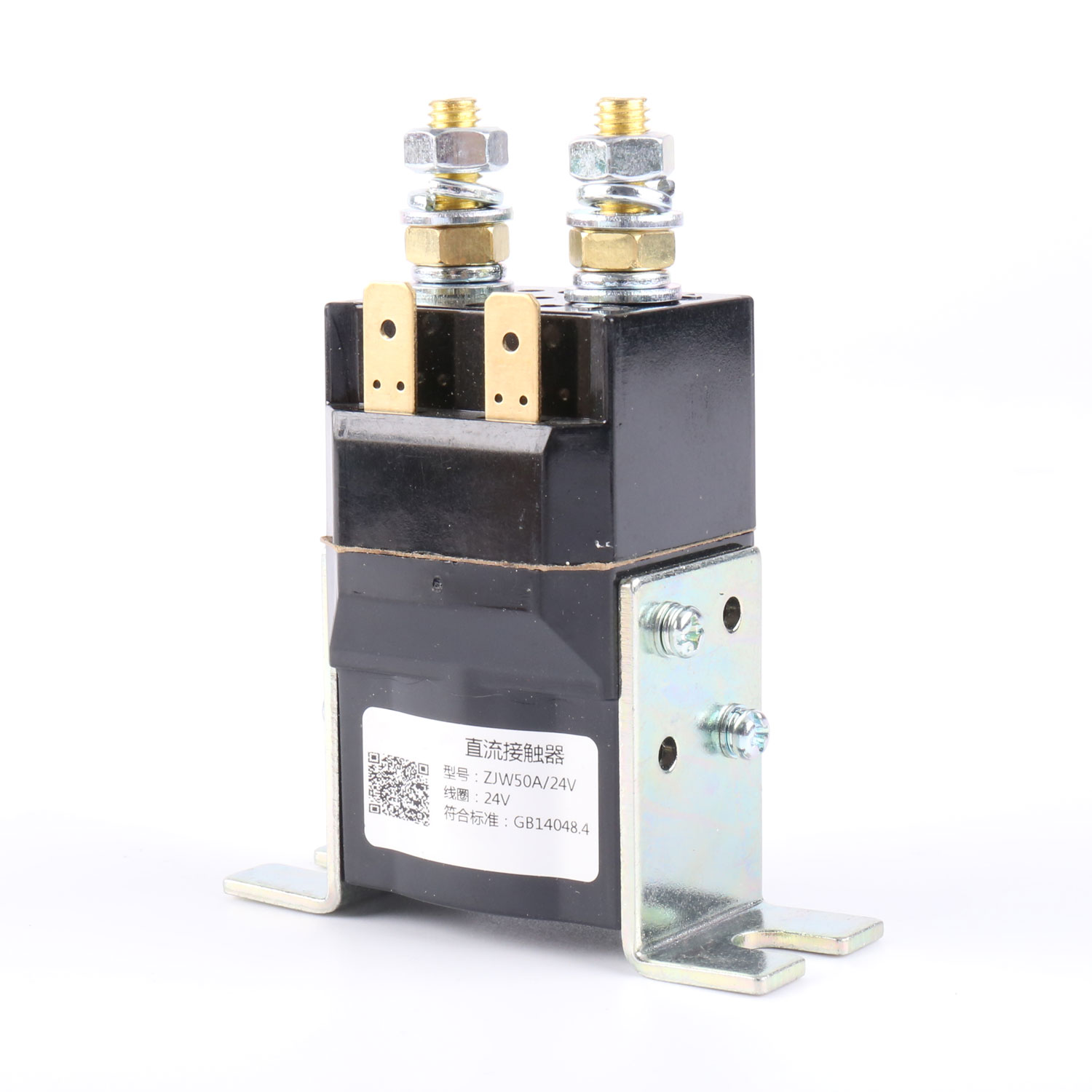

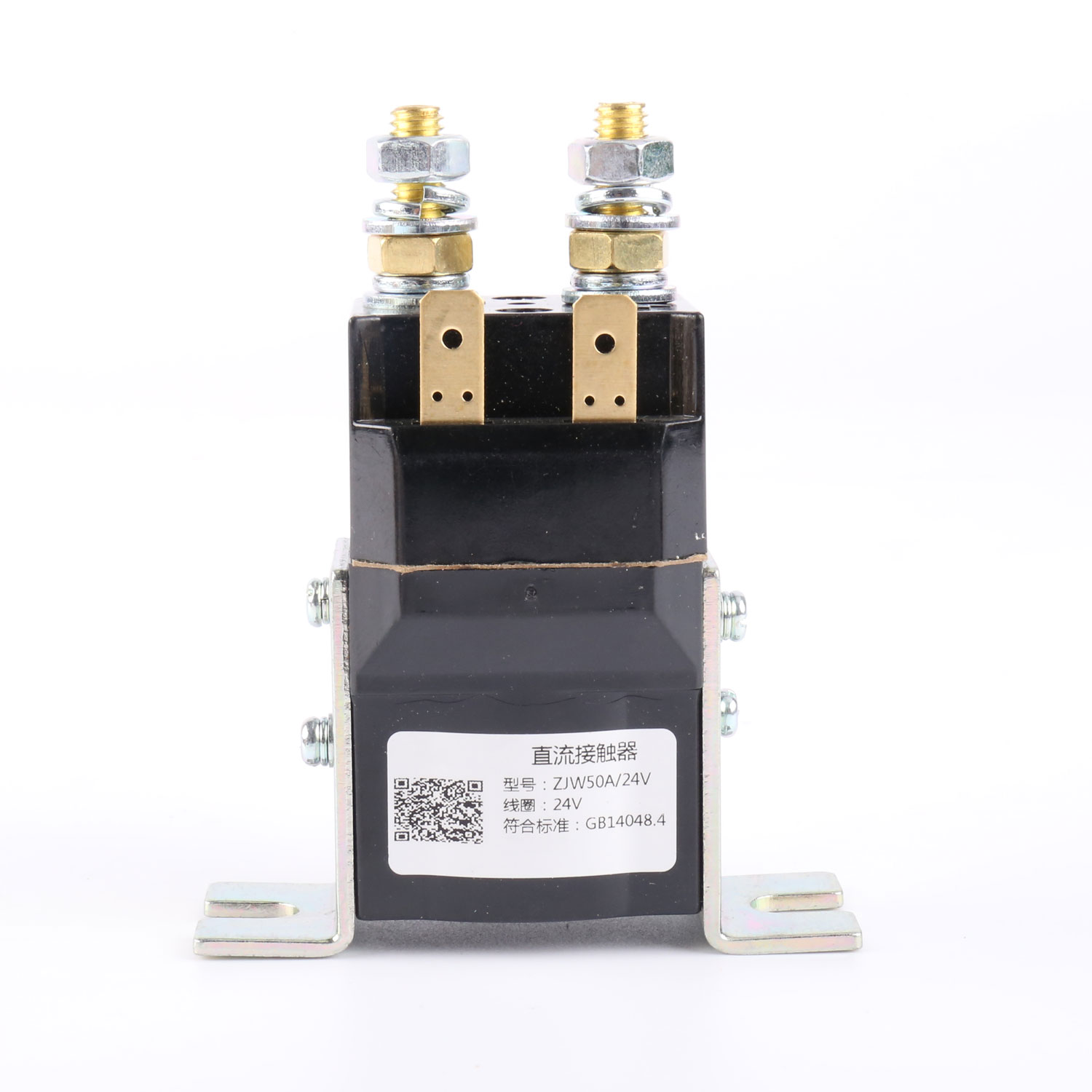

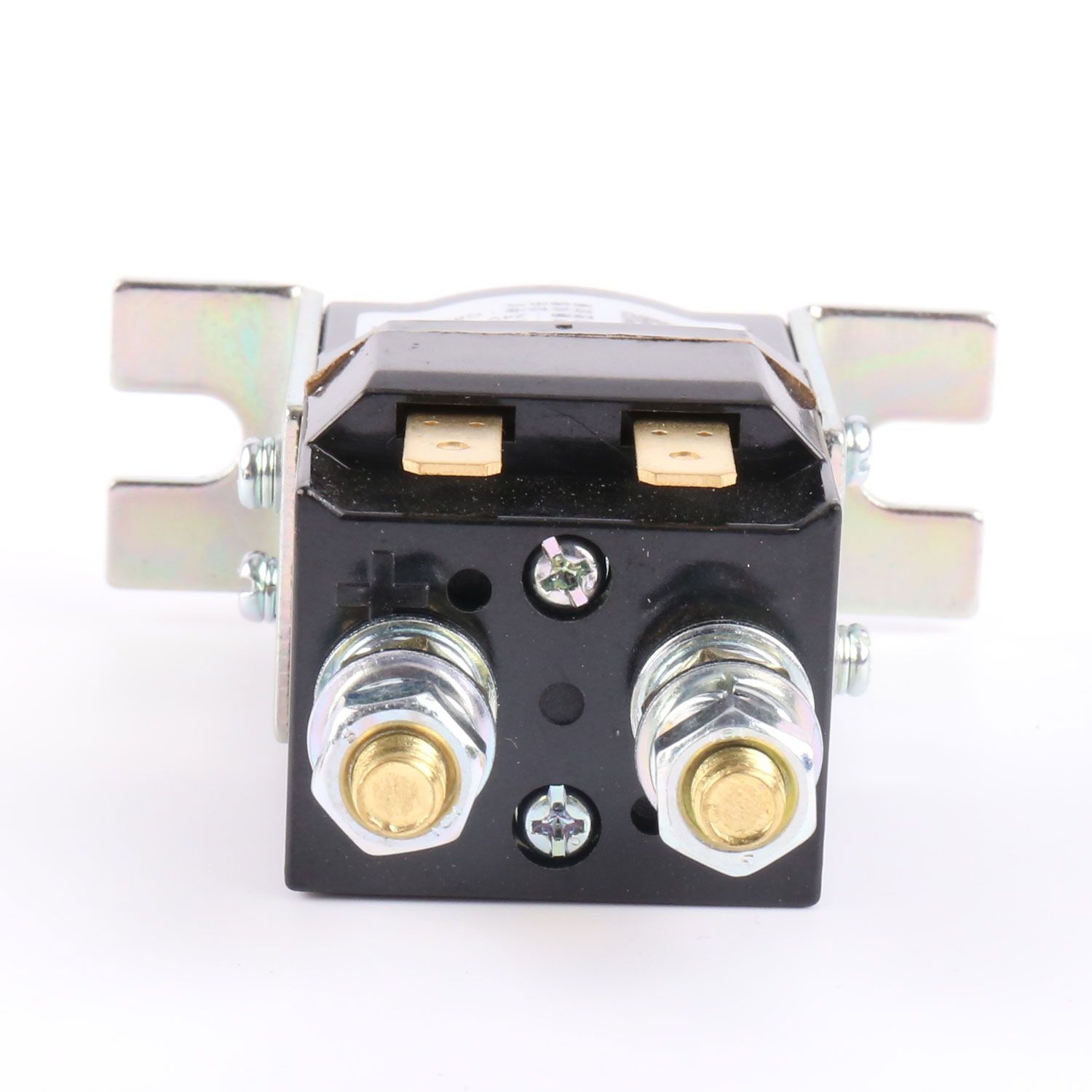

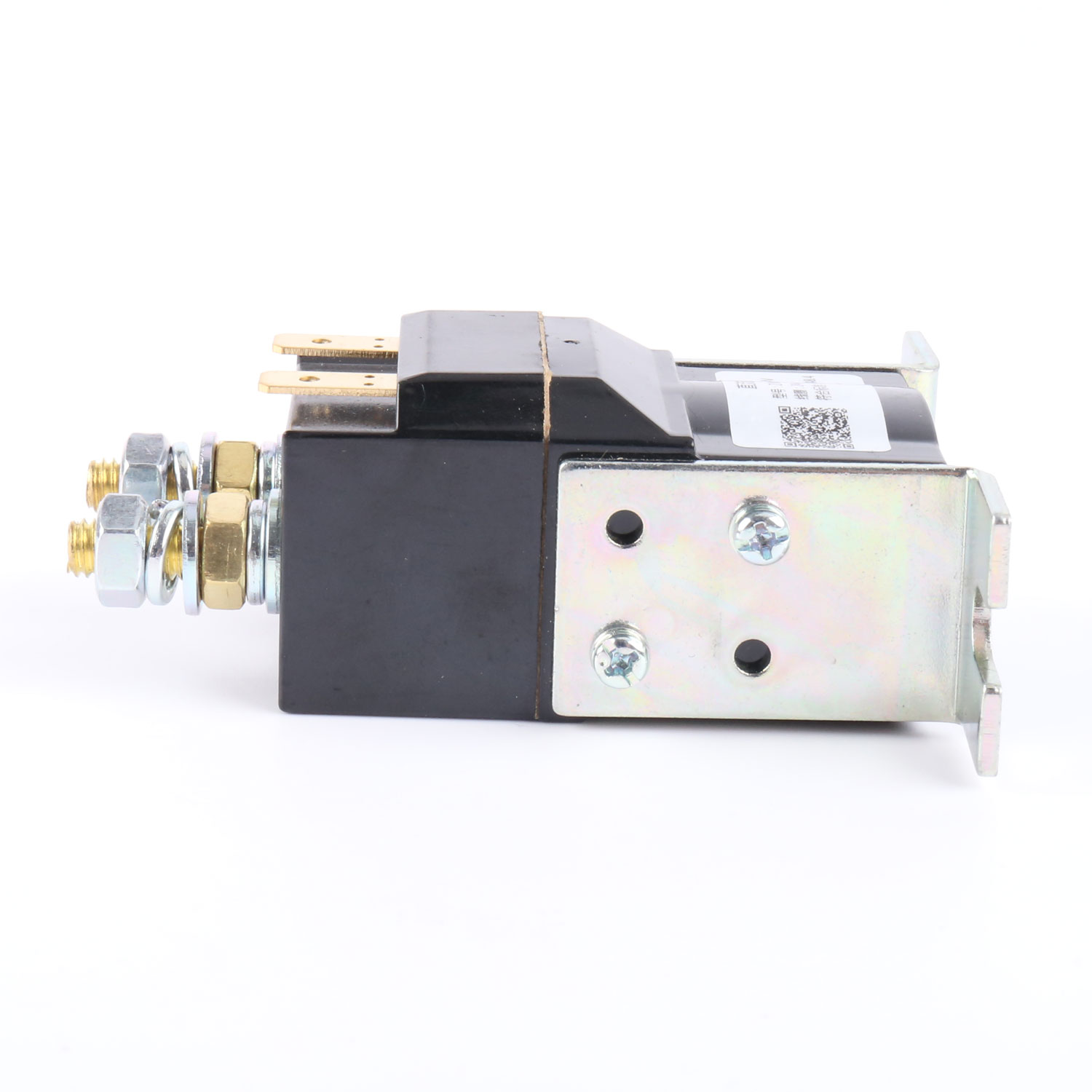

The SW60 features Single pole Double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity. The SW60 has M6 stud main terminals and 6.3mm spade coil connections. It can be mounted via M4 tapped holes or mounting brackets – either supplied fitted, or as separate items. Mounting can be on the side or base of the contactor.
| Model | SW60 |
| Rated Current | 50A |
| Contact Form | 1NO, SPST |
| Contact Voltage | 6-80V DC |
| Coil Voltage | 12VDC, 24VDC, or other DC voltgae less than 220VDC |
| Coil Power | 5-9W |
| Dielectric Voltage Strength | 50Hz 1000V AC 1min |
| Volt Drop of Main Contact | <80mV |
| Typical Pull-In Time | <30ms |
| Typical Drop-Out Time (N/O Contacts to Open) |
<30ms |

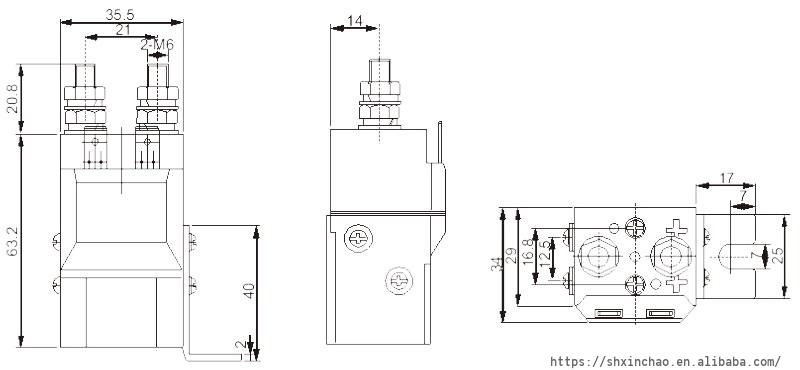

| Pull-In Voltage (Coil at 20℃) | <66%Us |
| Drop-Out Voltage (Coil at 20℃) | 5% – 30% |
| Mechanical life | 100 thousand times |
| Electric life | 20 thousand times |
| Circuit Diagram |
 |
