NewTrend W50-T-P-DE W50-T-P-DN Reversing Contactor Continuous 50A Intermittent 250A 12V 24V DC Tarp motor Winch Solenoid
ZJWTP50DE DC Contactor (Winch Solenoid) have been designed for direct current DC loads, particularly motors used on electric winches and electric vehicles.
– Motor Reversing DC Contactor (Winch Solenoid)
– Coil Voltage: 12Vdc or 24Vdc
– Paired Single Pole Double Throw (Double Pole, Changeover Contacts)
– Ideal for Marine Applications, such as, Bow Thrusters, Windless and Winches.
| Model |
ZJWTP50DE |

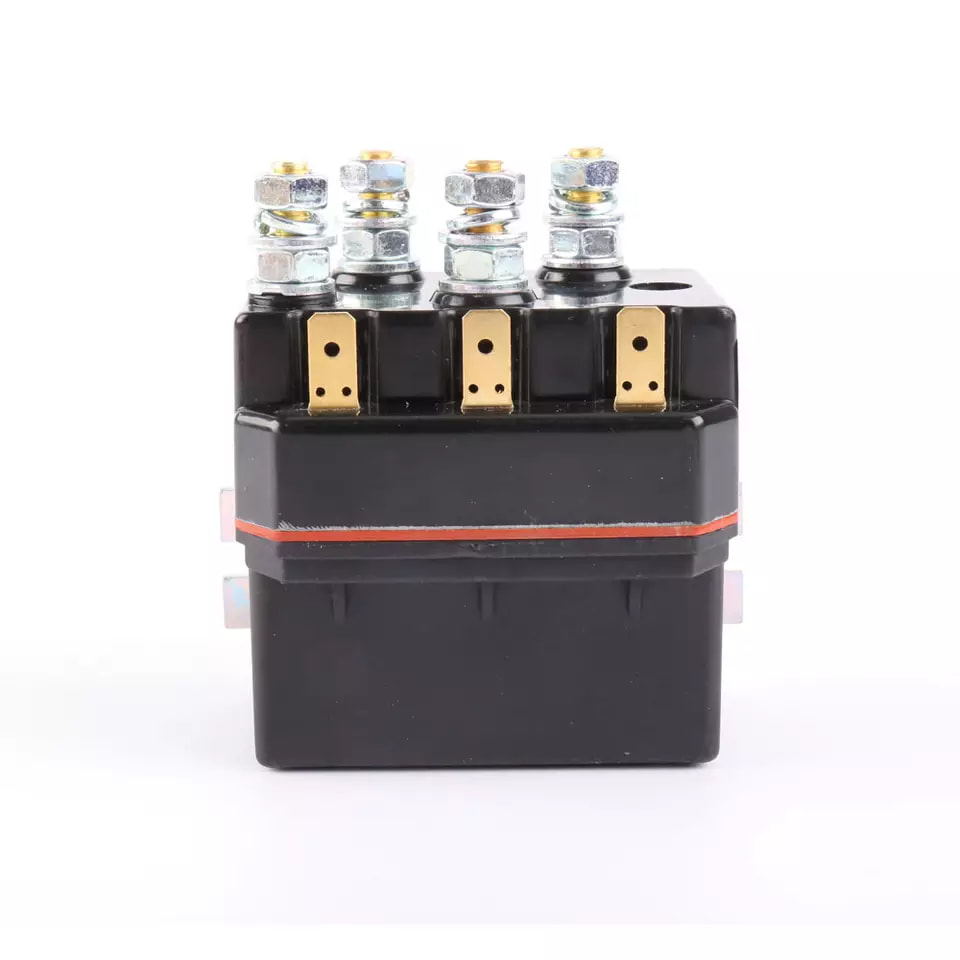

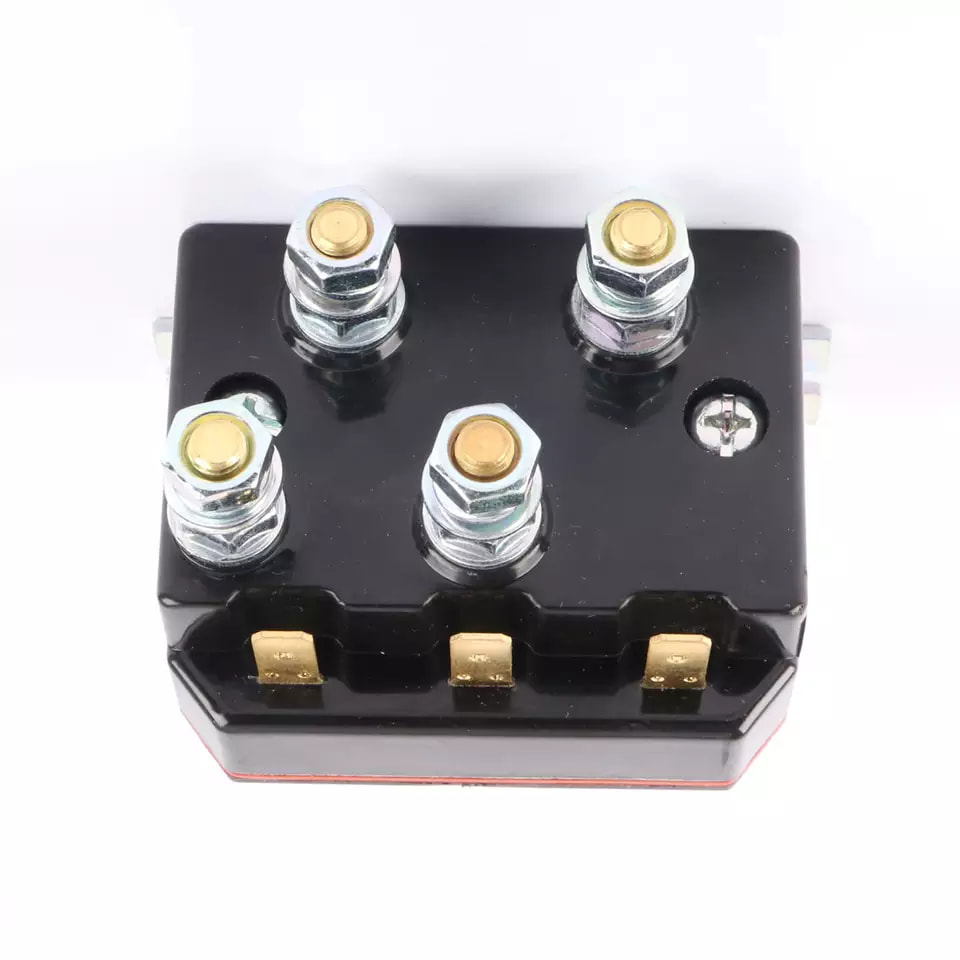

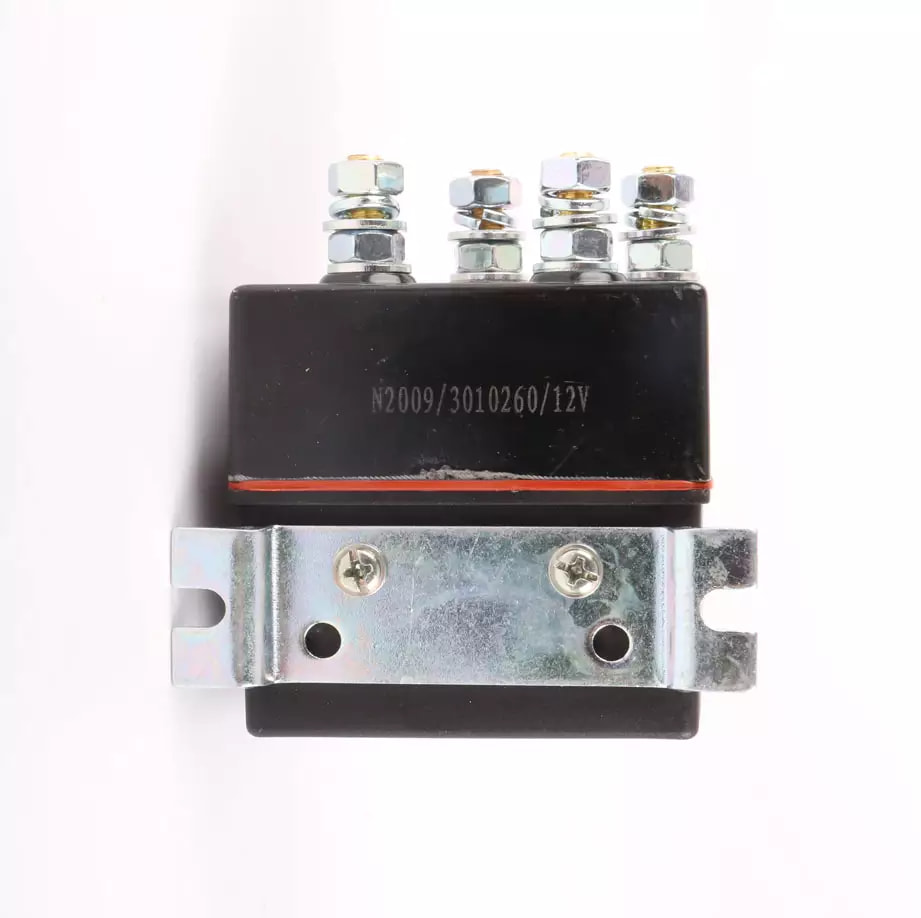

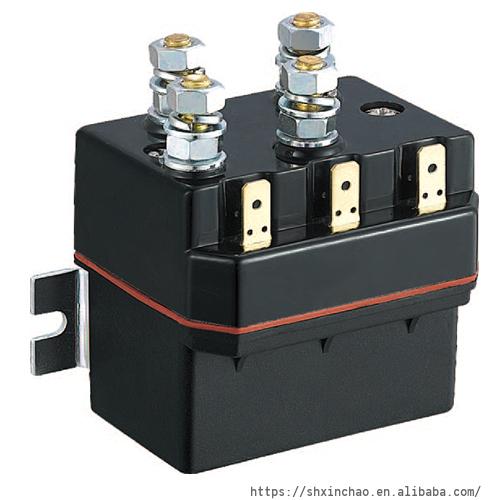

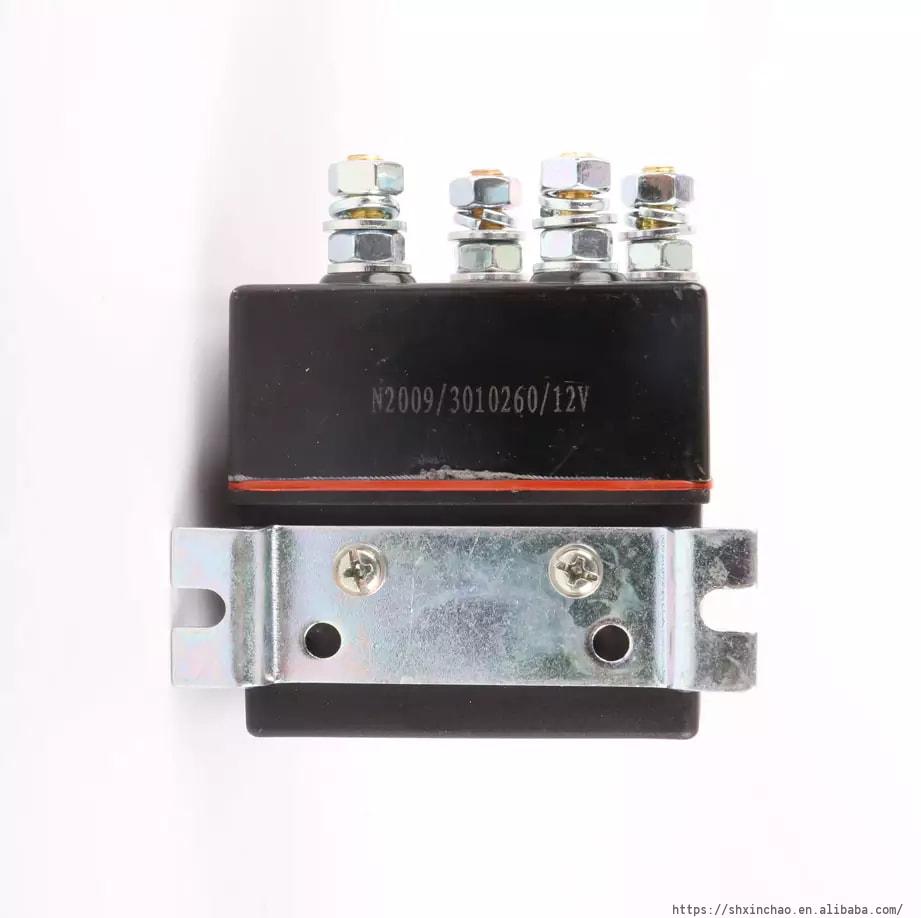

| Photo |  |
| Coil Voltage | 12VDC, 24VDC, 48VDC, 72VDC etc |
| Rated Voltage of Contact Circuit | ≤48VDC |
| Rated Current | Continuous 50A, Intermittent 200A |
| Dielectric Voltage Strength | 50Hz 1000V AC 1min |
| Volt Drop of Main Contact | < 100mV |
| Mechanical life | 100 thousand times |
| Electric life | Continous 20 thousand times, Intermittent 2 thousand times |
| Contact Form |
Double Pole, Changeover Contacts (Paired Single Pole Double Throw) |
| Coil Power | 25-27W |
| Typical Pull-In Time (N/O Contacts to Close) |
<30ms |
| Typical Drop-Out Time (N/O Contacts to Open) |
<50ms |
| Pull-In Voltage (Coil at 20℃) | <75%Us |
| Drop-Out Voltage (Coil at 20℃) | 5% – 40% |
| Main stud terminals | M8 |
| Feature | Heavy load for various Winches, Tarp motors, Windless, etc |
| Wiring Diagram |  |

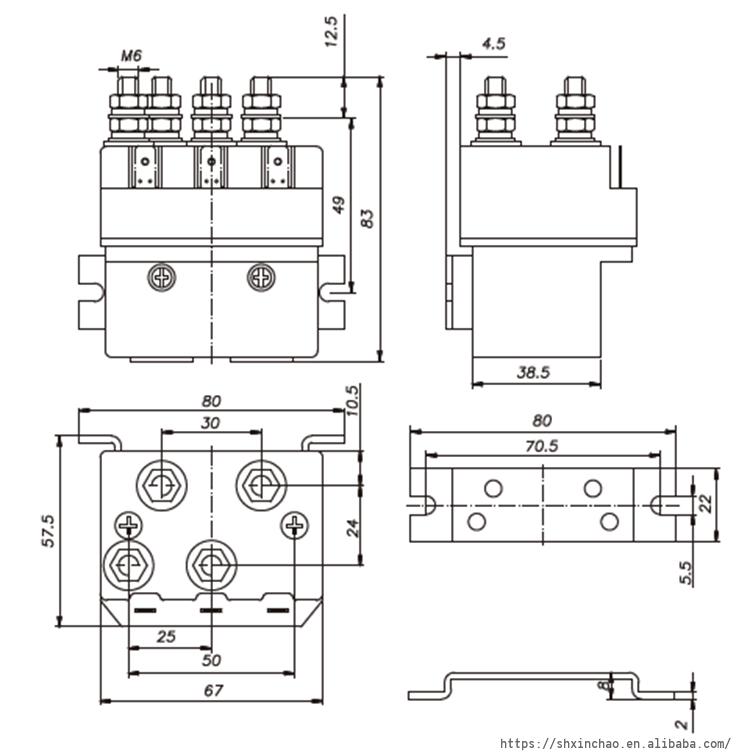

W50-T-P-DE (DC66P) Installation Diagram:

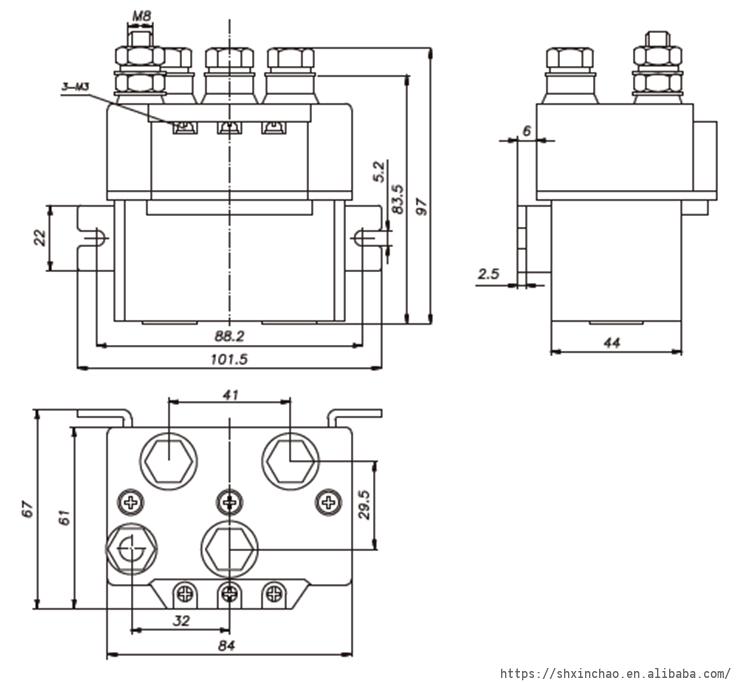

DC88P Installation Diagram:
