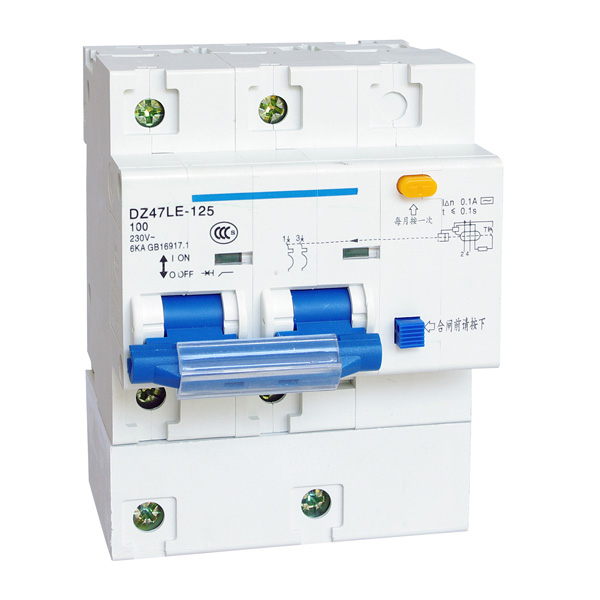

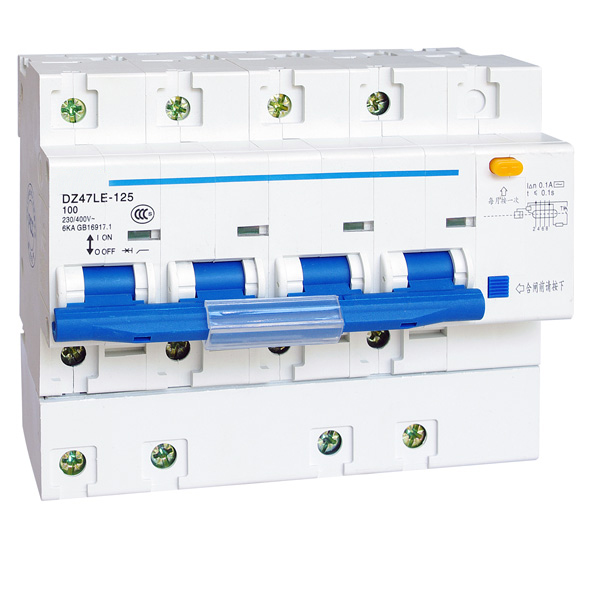

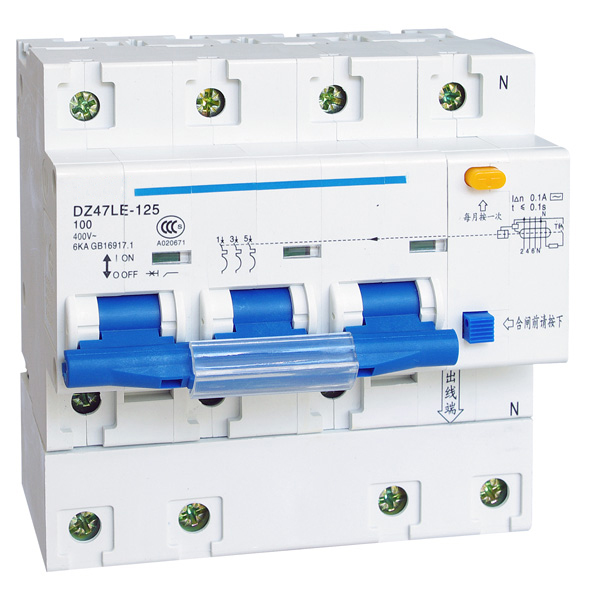

NC100LE RCBO SPN 2P 3P TPN 4P 63A 80A 100A 125A 30mA 100mA 300mA DZ47LE-125 DZ47LE-100 Over and Residual Current Circuit Breaker
1. Application
DZ47LE-125 (NC100LE) is applicable to a line of AC 50Hz/60Hz, rated voltage 230V for single pole two-wire, 2-pole or 400V for 3-pole, 3-pole 4-wire, 4-pole and rated current up to 125A. It can protectthe line and motor from overload and short circuit. It can also be used for infrequent line conver-sion and infrequent motor start. It conforms with the standards of IEC61009-1.
2. Main Technical Parameter
| Type | DZ47LE-125 (NC100LE) | |
| Pole | 1P+N, 2P | 3P, 3P+N, 4P |
| Rated current (A) | 63A,80A,100A,125A | |
| Rated voltage(V) | 230V | 400V |
| Rated short circuit breaking capacity Icn(KA) | 6KA | |
| Rated residual making/breaking capacity | 2000A | |
| Rated residual action current | 30mA, 100mA, 300mA | |
| Rated residual non-action current | 0.5 x rated residual action current | |
| Over voltage protection grade | 280V±5% | |
3. Applicable conducting wire
| Rated current(A) | 63 | 80 | 100 |
| Nominal cross section of wire mm2 | 16 | 25 | 35 |
4. Residual current breaking time
| In(A) | rated residual action current (A) | Breaking time(s) when equals to rating following | ||||
| In | 2In | 5In | 5,10,20,50,100,200,500a(A) | Itb | ||
| 6-63 | 0.03, 0.05, 0.1, 0.3 | 0.1 | 0.06 | 0.04 | 0.04 | 0.04 |
5. The over-current protection property
| Ambient Temperature | Initial Status | Test Current | Expected Result | Expected Result | NOte |
| 40±2oC | Cold position | 1.05In(In≤63A) | t≤1h | Non-release | – |
| Cold position | 1.05In (In[63A) | t≤2h | Non-release | – | |
| Carried out immedi-ately after previous test | 1.30In(In≤63A) | t < 1h | Release | Current smoothlyrises to specified value within 5s | |
| 1.30In (In>63A) | t< 2h | Release | |||
| -5~+40oC | Cold position | 8.00In | t≤0.2s | Non-release | – |
| Cold position | 12.00In | t < 0.2s | Non-release | – |

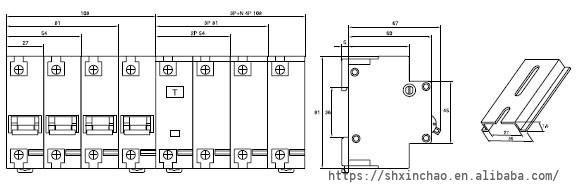

6. Dimension
