LP1K09 LP1K0910 LP1K0601 3 pole 9 Amp 24VDC 24V DC Coil Mini Contactor

$0.00

Electricity Type:DC
Brand Name:Newtrend or OEM brand
Place of Origin:China
Model Number:LP1K
Phase:3
Main Circuit Rating Current:9A
Voltage:24VDC
SKU: 1600994717552 Category:
Description

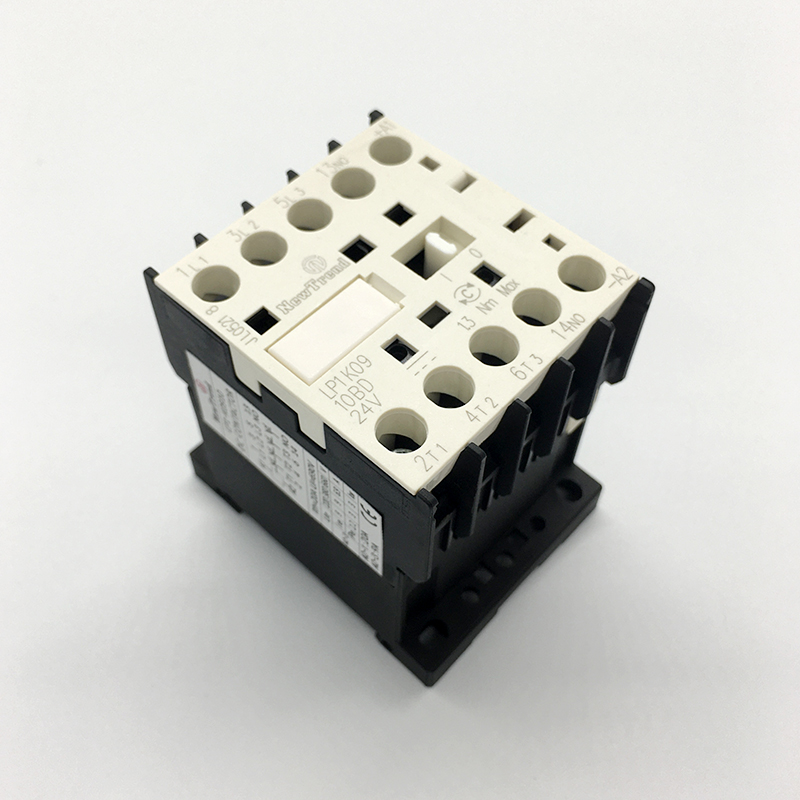

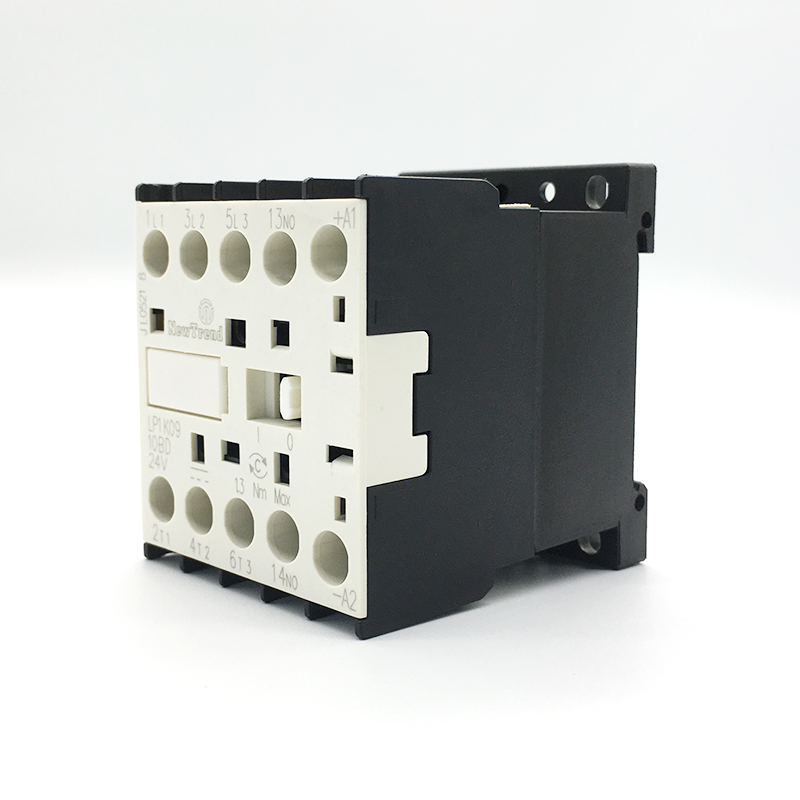

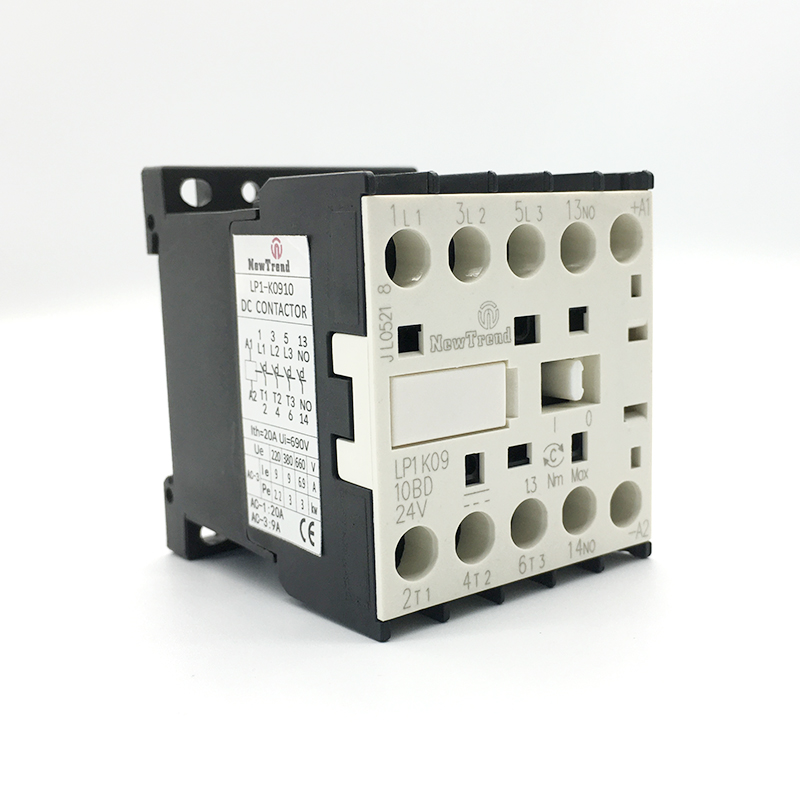

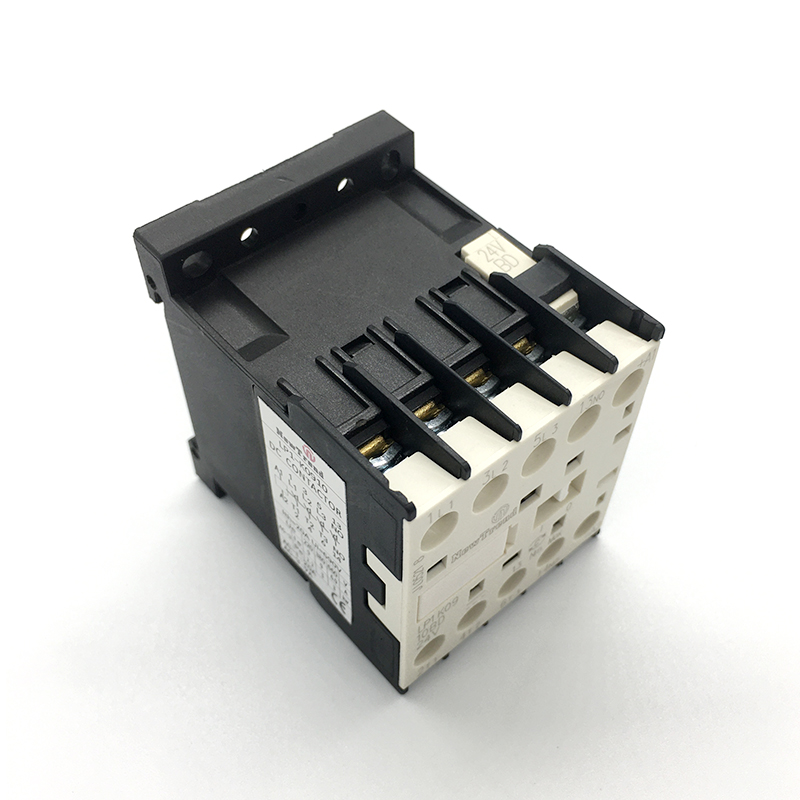

LP1K09 LP1K0910 LP1K0601 3 pole 9 Amp 24VDC 24V DC Coil Mini Contactor



optional Panel mount, 35mm Dinrail mount, Printed circuit board mount

AC Coil or DC Coil

6A, 9A, 12A (AC-3), 20A (AC-1)

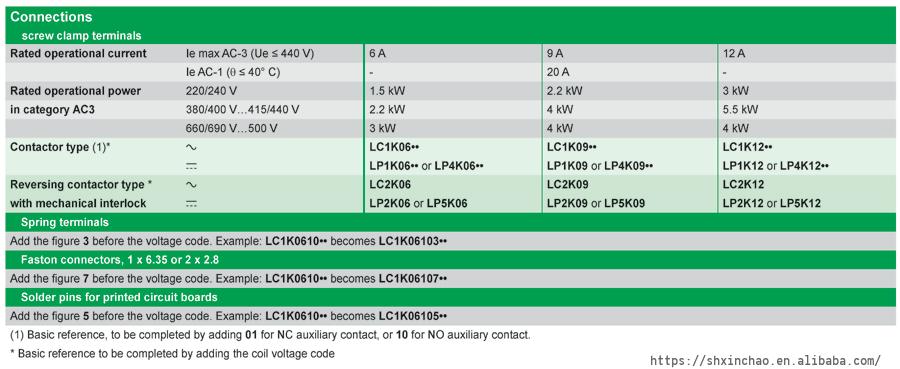

Specification:

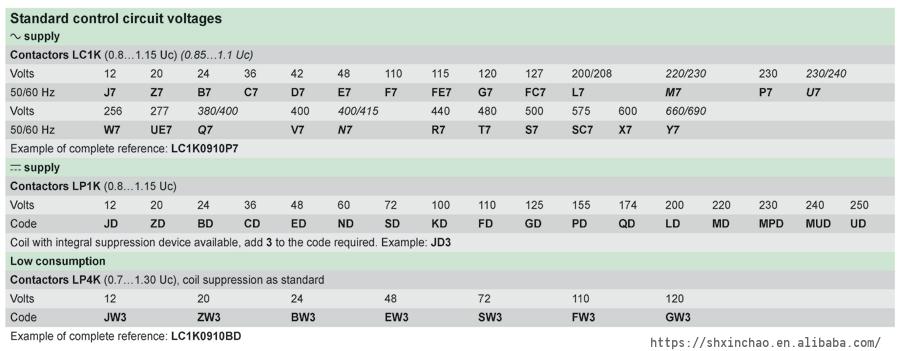

Coil Voltage:

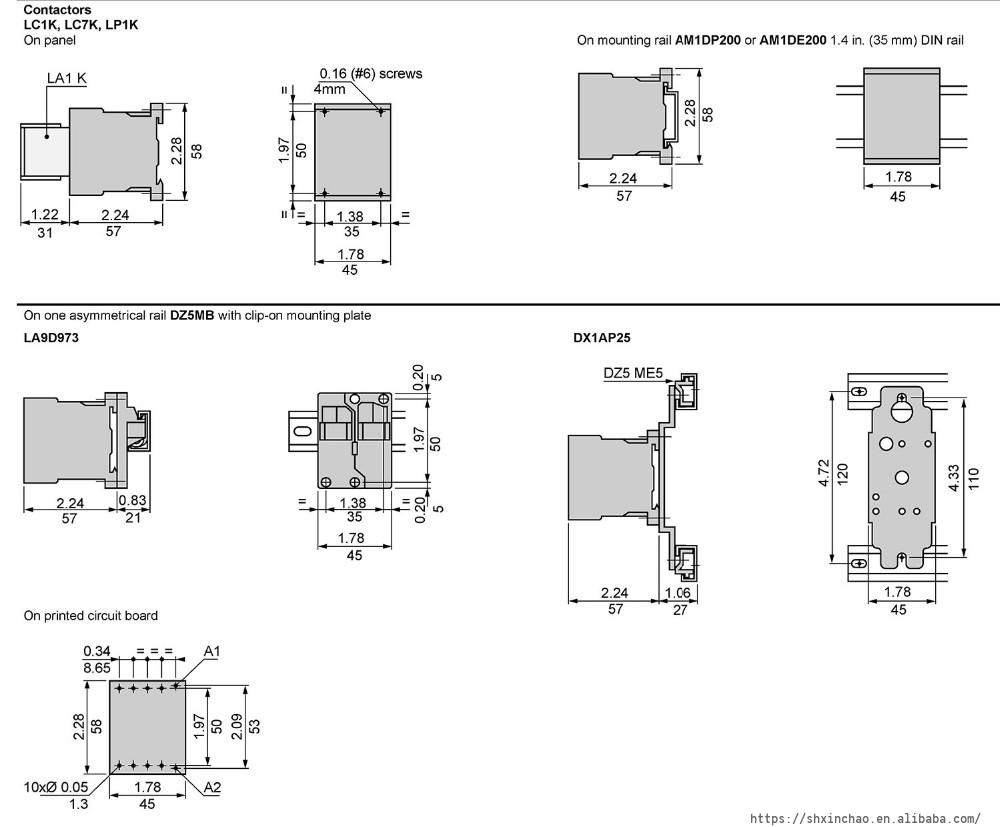

Dimension and Mounting way (LC1K, LP1K):



Dimension and Mounting way (LC2K, LP2K):

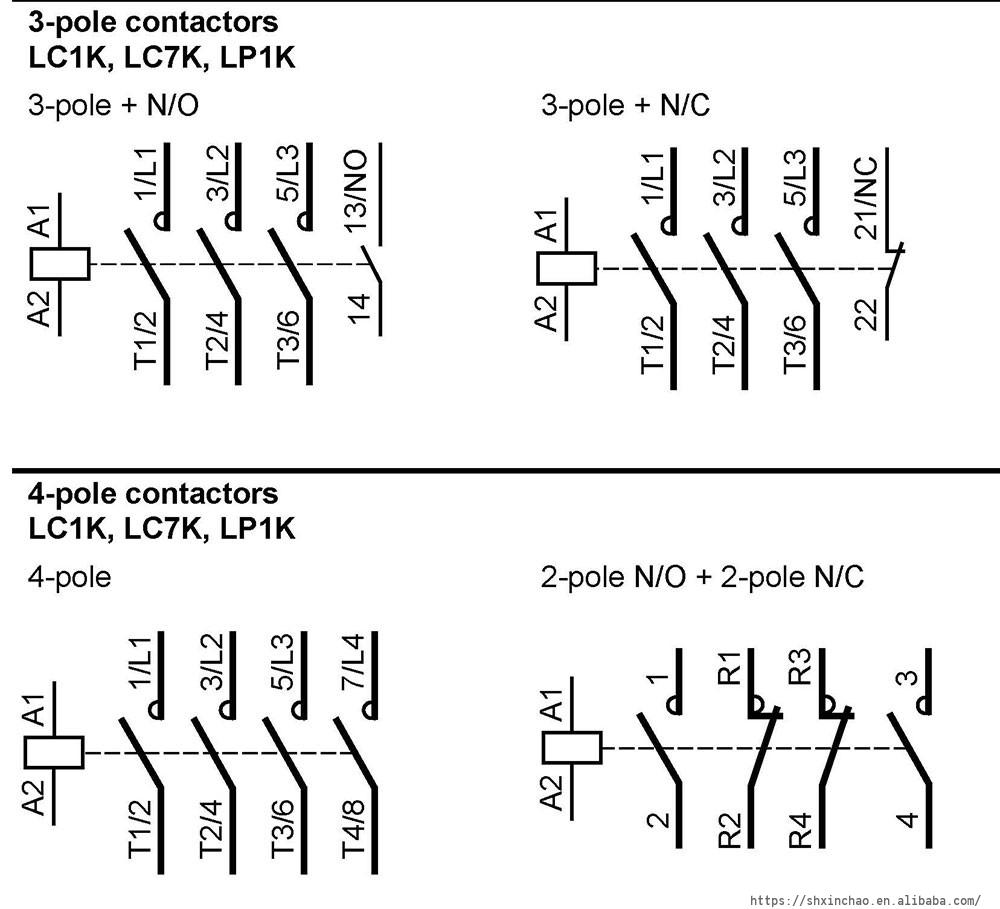

Schematics (LC1K, LP1K):

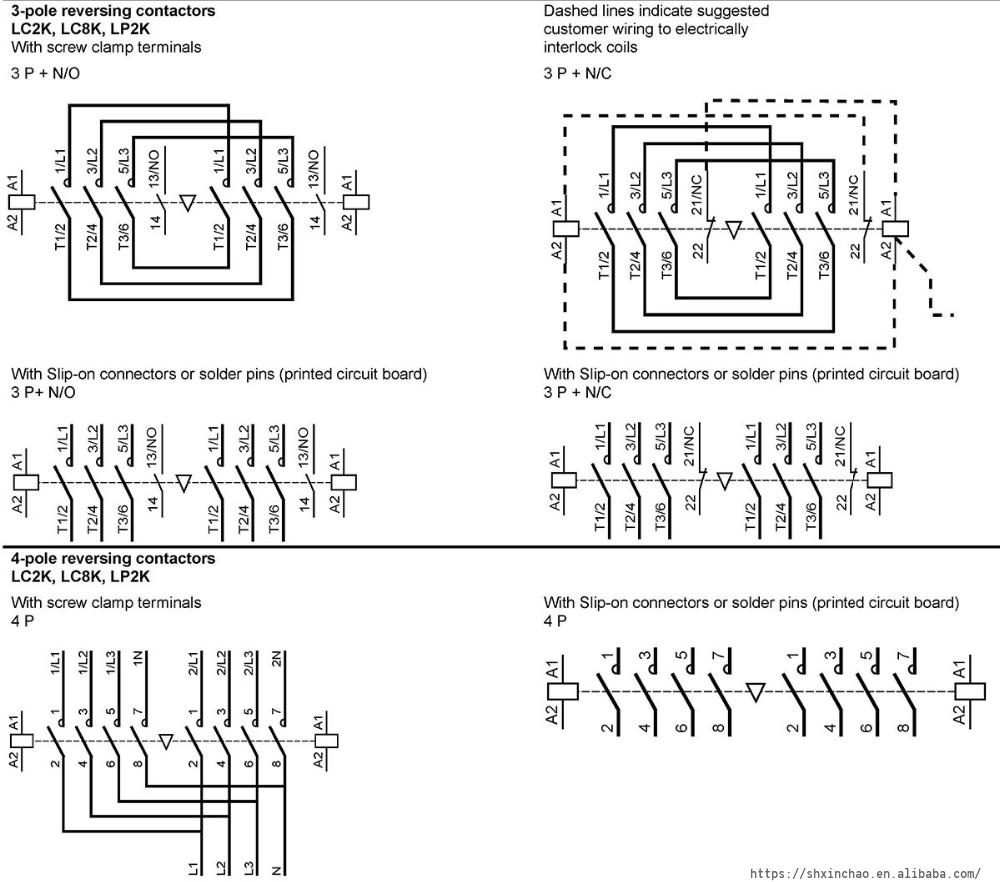

Schematics (LC2K, LP2K):

Additional information
Weight 2 kg
Dimensions 25 × 25 × 25 cm
Number of Pole

3
Main Circuit Rating Voltage

12V 24V 220V 230V 240V
