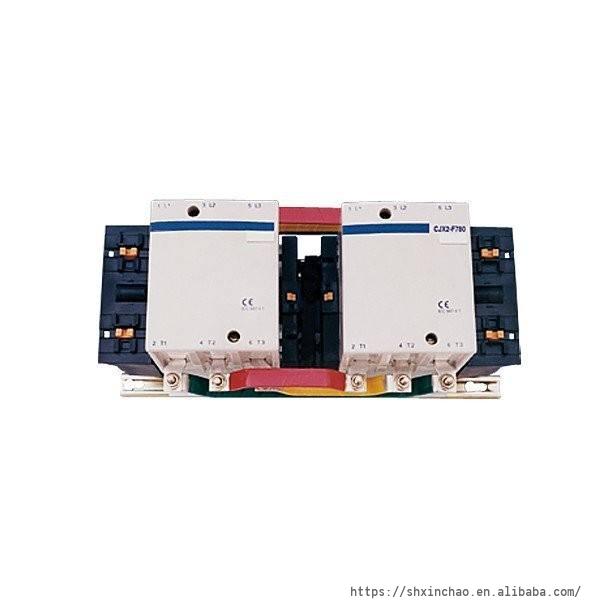

LC2-D LC2-F Reversing Contactor Equivalent to Chint NC1-N NC1-2 AC Contactor

Application
LC2-D LC2-F mechanical interlocking contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz, current 620A, for convertible controlling the motor. This mechanical interlocking device ensures contact changeover of the two convertible contactors. It conforms to IEC60947-4-1.

Specification

Type	Rated current AC-3(A)	Controlled power (KW)
Type	Rated current AC-3(A)	220V	380V	415V	440V	660V
LC2-D09	9	2.2	4	4	4	5.5
LC2-D12	12	5.5	5.5	5.5	5.5	7.5
LC2-D18	18	7.5	7.5	9	9	10
LC2-D25	25	5.5	11	11	11	15
LC2-D32	32	7.5	15	15	15	18.5
LC2-D40	40	18.5	18.5	22	22	30
LC2-D50	50	15	22	25	30	33
LC2-D65	63	18.5	30	37	37	37
LC2-D80	80	22	37	45	45	45
LC2-D95	95	22	45	45	45	41
LC2-D115	115	30	55	59	59	80
LC2-D150	150	40	75	80	80	100
LC2-D170	170	55	90	100	100	110
LC2-D205	205	63	110	110	110	129
LC2-D245	245	75	132	132	132	160
LC2-D300	300	100	160	200	200	220
LC2-D410	410	110	220	250	250	280
LC2-D475	475	147	265	280	280	355
LC2-D620	620	200	335	400	400	450

Type	Number of Poles	Rated Current AC-3(A)	Rated Current In/A	Controlled power(KW)
Type	Number of Poles	Rated Current AC-3(A)	Rated Current In/A	220V	380V
LC2-F115	3P	115	250	200	55
LC2-F1154	4P	115	250	200	55
LC2-F150	3P	150	355	250	75
LC2-F1504	4P	150	355	250	75
LC2-F185	3P	185	425	275	90
LC2-F1854	4P	185	425	275	90
LC2-F225	3P	225	500	315	110
LC2-F2254	4P	225	500	315	110
LC2-F265	3P	265	630	350	132
LC2-F2654	4P	265	630	350	132
LC2-F330	3P	330	800	400	160
LC2-F3304	4P	330	800	400	160
LC2-F400	3P	400	800	500	200
LC2-F4004	4P	400	800	500	200
LC2-F500	3P	500	1000	700	250
LC2-F5004	4P	500	1000	700	250
LC2-F630	3P	630	1250	1000	335
LC2-F6304	4P	630	1250	1000	335
LC2-F800	3P	800	1250	1000	400

LC2-D LC2-F mechanical interlocking contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz, current 620A, for convertible controlling the motor. This mechanical interlocking device ensures contact changeover of the two convertible contactors. It conforms to IEC60947-4-1.

Weight

2 kg

Dimensions

25 × 25 × 25 cm

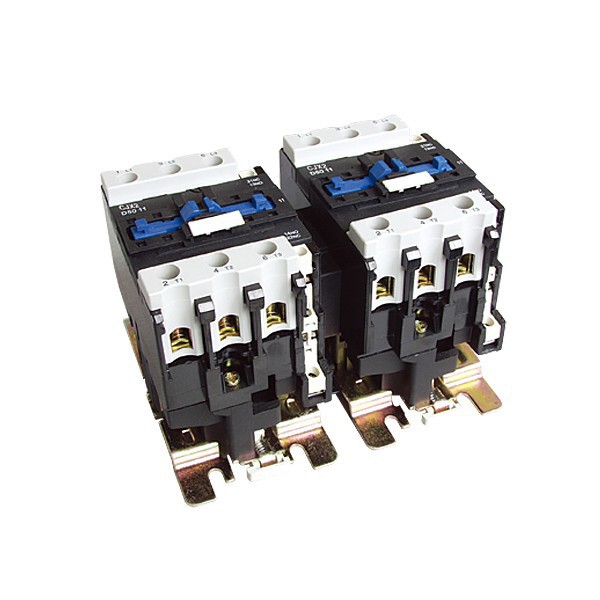

Newtrend HTB11ZV2KpXXXXbIXFXXq6xXFXXXQ-1 - UL CE Certified Low Voltage Electrical Product, 20+ Years Manufacturing Experience

Click to enlarge

Back to products

LC2-D LC2-F Reversing Contactor mechanical interlocking Reversing Contactor

Electricity Type:AC
Brand Name:Newtrend or OEM brand
Place of Origin:China
Model Number:LC2-D LC2-F
Phase:3
Main Circuit Rating Current:9A ~ 630A
type:Magnetic contactor

SKU: 1770407692058238976 Category: AC Contactors

Description
Additional information

Description

Type	Rated current AC-3(A)	Controlled power (KW)
Type	Rated current AC-3(A)	220V	380V	415V	440V	660V
LC2-D09	9	2.2	4	4	4	5.5
LC2-D12	12	5.5	5.5	5.5	5.5	7.5
LC2-D18	18	7.5	7.5	9	9	10
LC2-D25	25	5.5	11	11	11	15
LC2-D32	32	7.5	15	15	15	18.5
LC2-D40	40	18.5	18.5	22	22	30
LC2-D50	50	15	22	25	30	33
LC2-D65	63	18.5	30	37	37	37
LC2-D80	80	22	37	45	45	45
LC2-D95	95	22	45	45	45	41
LC2-D115	115	30	55	59	59	80
LC2-D150	150	40	75	80	80	100
LC2-D170	170	55	90	100	100	110
LC2-D205	205	63	110	110	110	129
LC2-D245	245	75	132	132	132	160
LC2-D300	300	100	160	200	200	220
LC2-D410	410	110	220	250	250	280
LC2-D475	475	147	265	280	280	355
LC2-D620	620	200	335	400	400	450

Type	Number of Poles	Rated Current AC-3(A)	Rated Current In/A	Controlled power(KW)
Type	Number of Poles	Rated Current AC-3(A)	Rated Current In/A	220V	380V
LC2-F115	3P	115	250	200	55
LC2-F1154	4P	115	250	200	55
LC2-F150	3P	150	355	250	75
LC2-F1504	4P	150	355	250	75
LC2-F185	3P	185	425	275	90
LC2-F1854	4P	185	425	275	90
LC2-F225	3P	225	500	315	110
LC2-F2254	4P	225	500	315	110
LC2-F265	3P	265	630	350	132
LC2-F2654	4P	265	630	350	132
LC2-F330	3P	330	800	400	160
LC2-F3304	4P	330	800	400	160
LC2-F400	3P	400	800	500	200
LC2-F4004	4P	400	800	500	200
LC2-F500	3P	500	1000	700	250
LC2-F5004	4P	500	1000	700	250
LC2-F630	3P	630	1250	1000	335
LC2-F6304	4P	630	1250	1000	335
LC2-F800	3P	800	1250	1000	400
