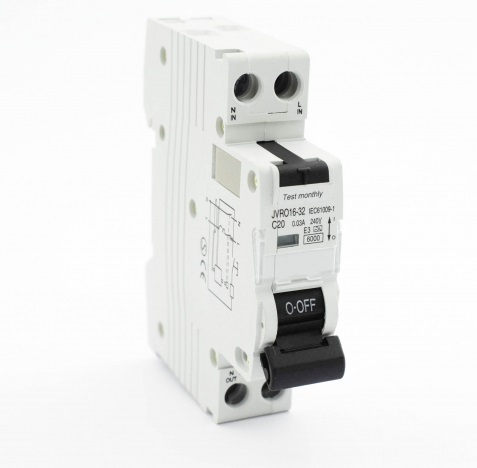

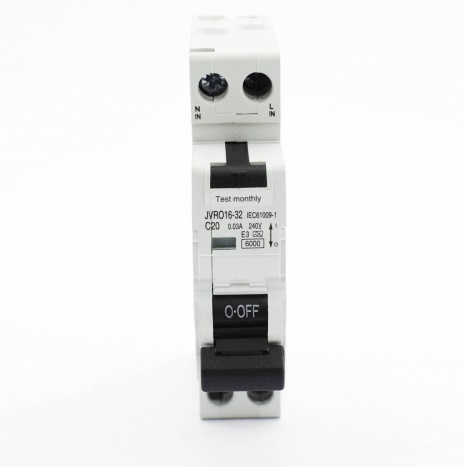

JVR016-32 AVDT-63M EKF Intreruptor diferential 6A 10A 16A 20A 25A 32A 20mA 30mA 300mA Type AC or Type A Australia DPN 1P+N RCBO
Construction and Feature:
– Operating machanism adopt double contact with DPN form, N pole opening first, then breaking.
– Leakage protecion adopt electronic type integrated circuit, Contact ON/OFF state display.
– Trigger has middle-position function and a clamshell to put tags in and characteristic stripes on both sides.
– Provides protection against earth fault/leakage current, short-circuit, overload, and function of isolation.
Technical Data:
Residual current characteristics: AC, A
Pole No.: 1P+N
Tripping curve: B, C
Rated short-circuit breaking capacity: 4.5kA
Rated current (A): 6, 10, 16, 20, 25, 32
Rated voltage: 240V
Rated frequency: 50Hz
Rated residual operating current(A): 0.03
Tripping duration: instantaneous≤0.1s
Electro-mechanical endurance: 4000 cycles
Diameter of screw d(mm): M4
Degree of protection: IP20
Fastening torque: 1.2N.m
On symmetrical DIN rail 35mm
Terminal Connection Height: H1=19mm H2=22mm

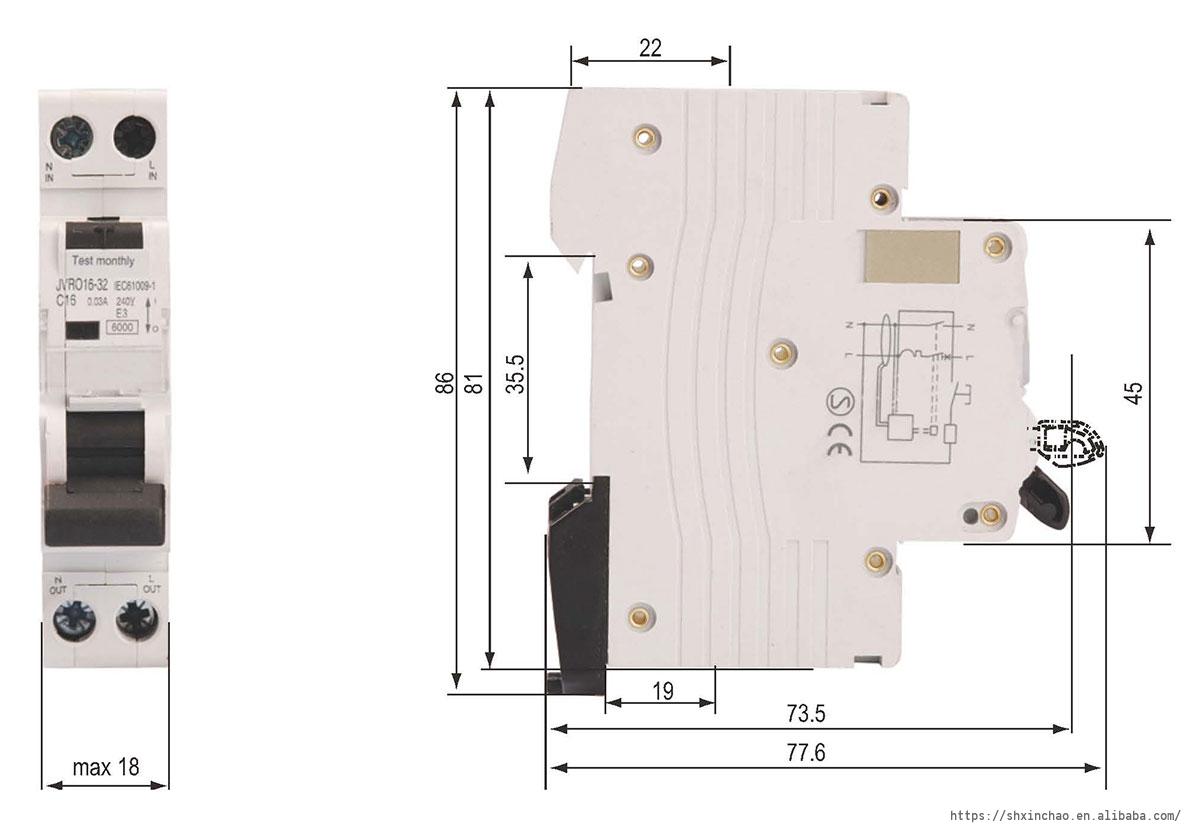

Overall & Installation Dimensions:
