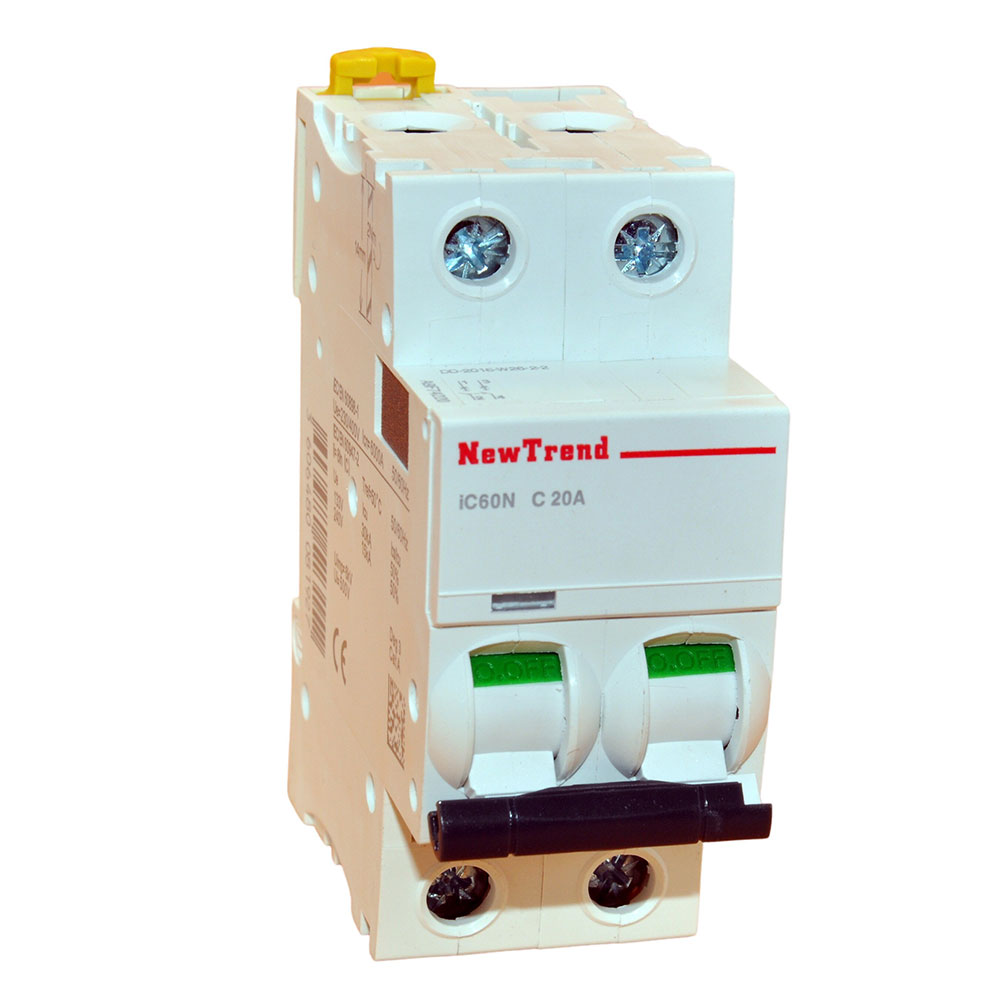

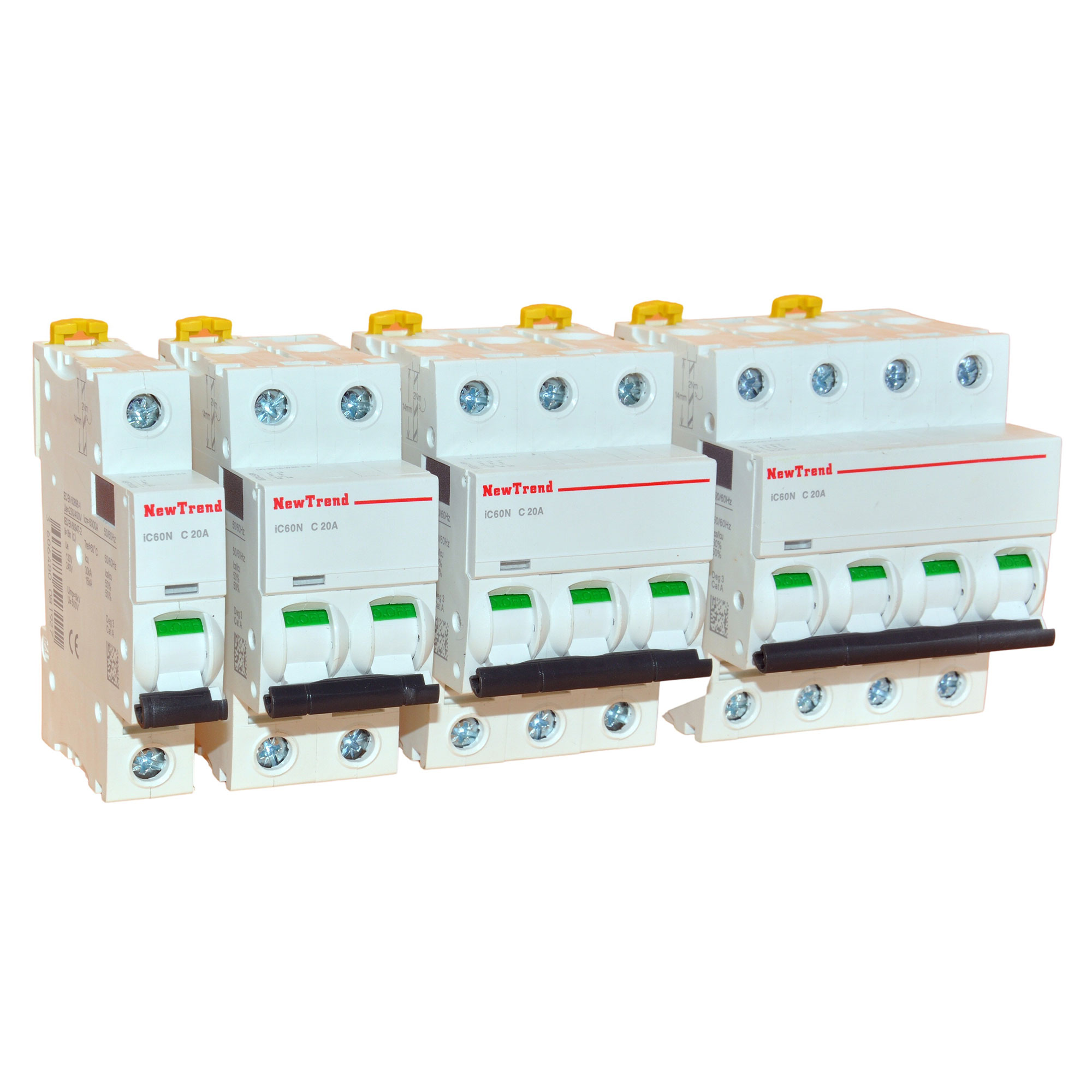

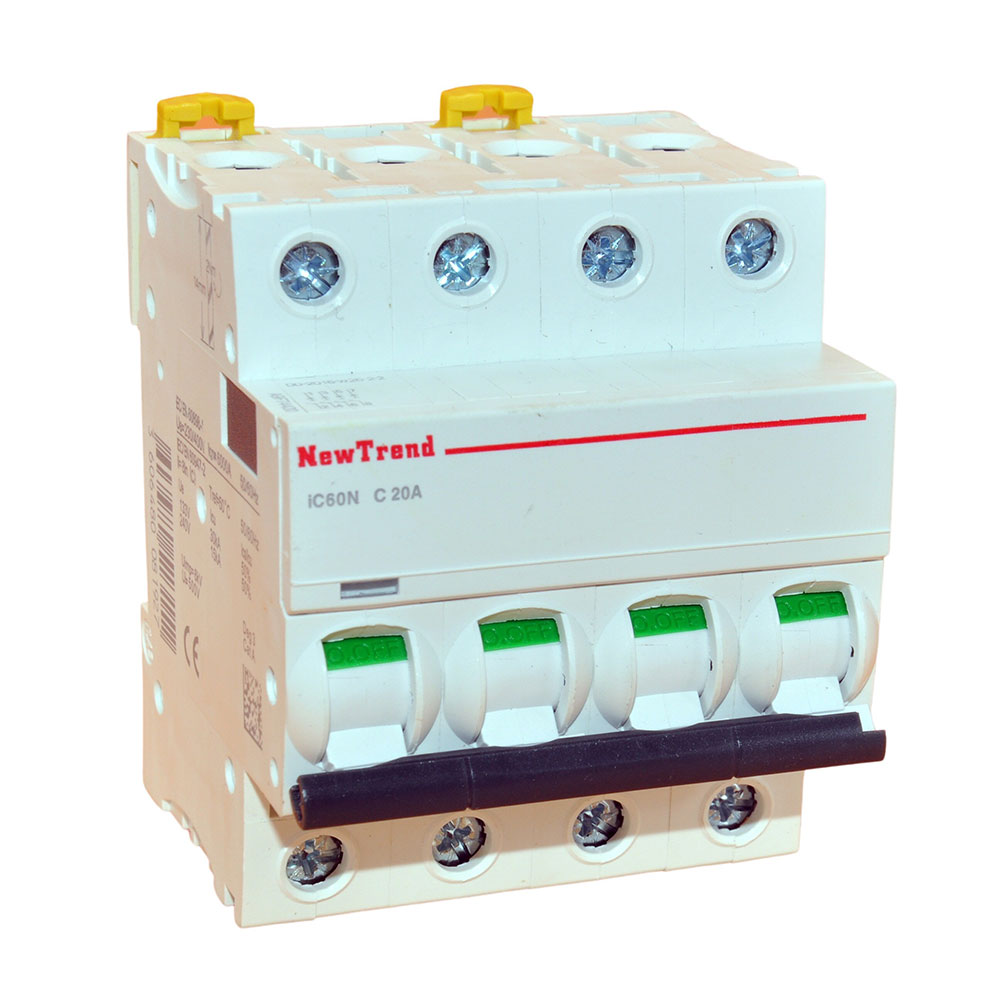

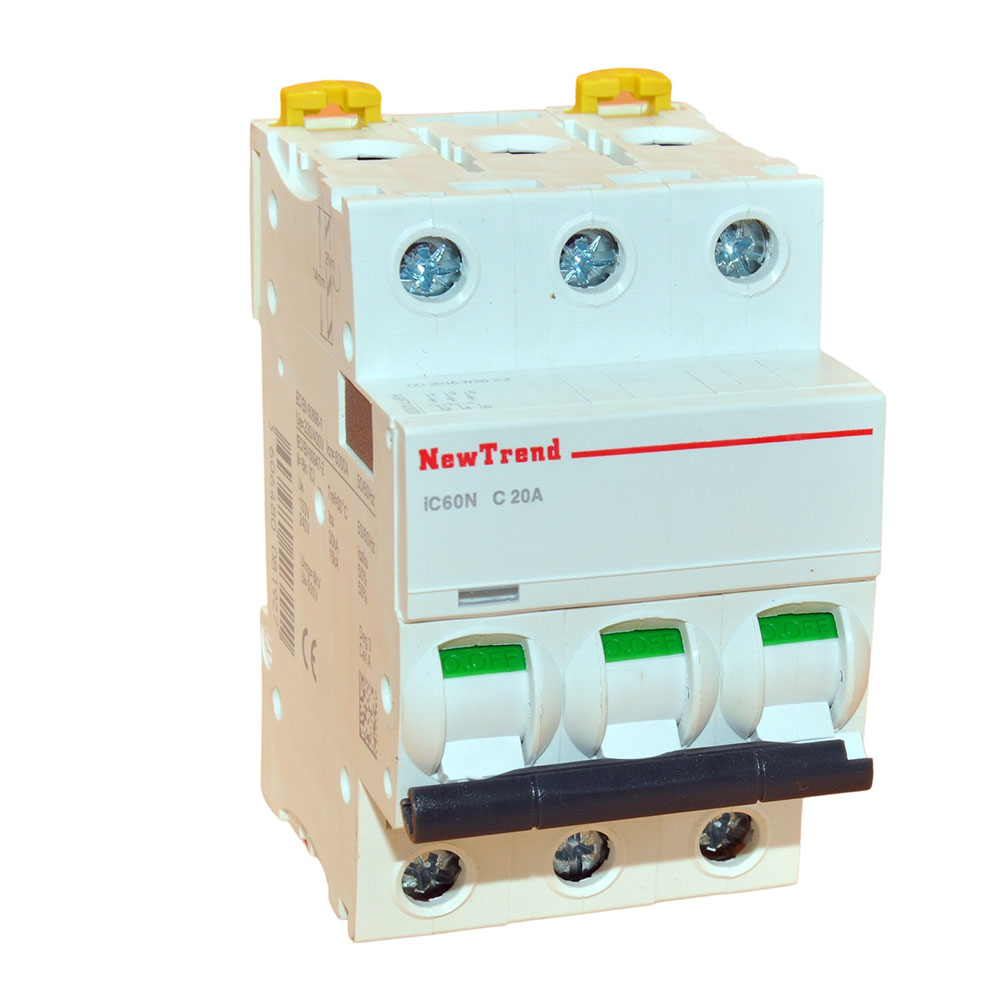

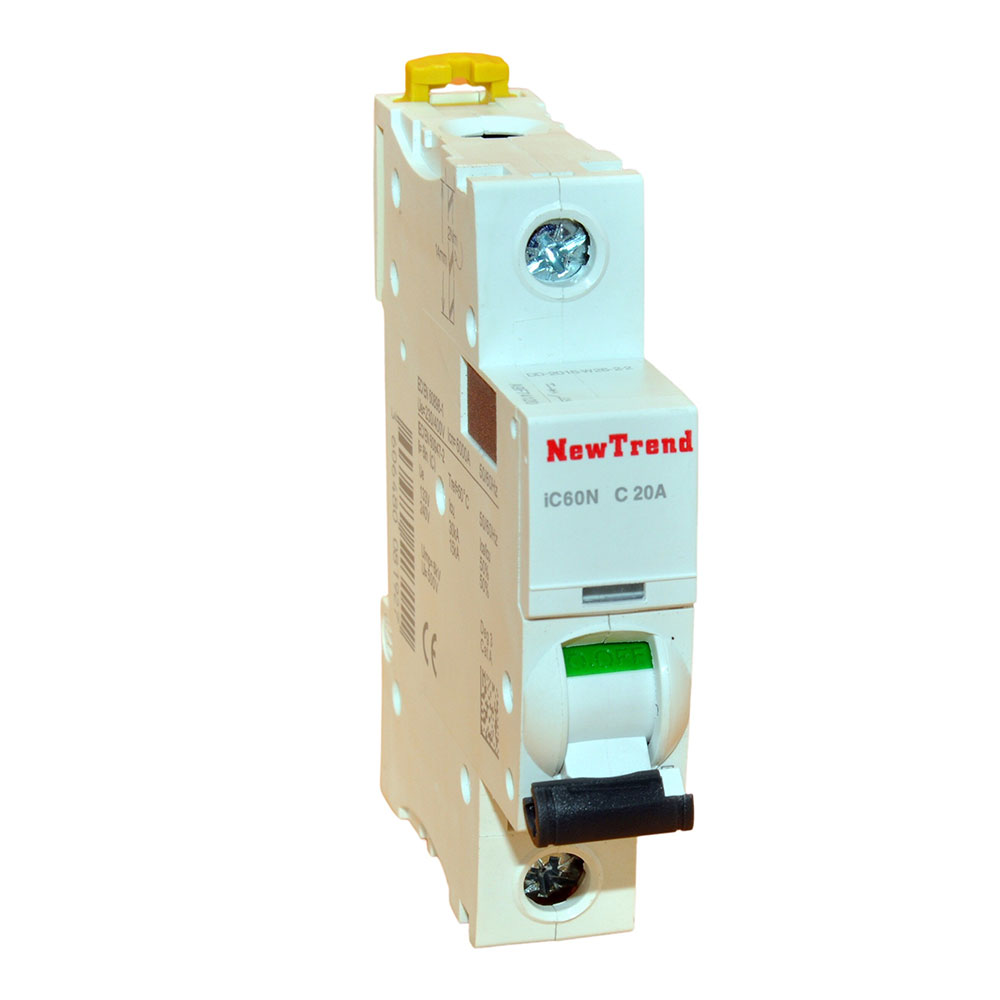

Acti9 iC60 type Miniature Circuit Breaker 1P 2P 3P 4P 1A 2A 3A 4A 5A 6A 10A 13A 16A 20A 25A 32A 40A 50A 63A 6KA 10KA iC60N MCB
Features
With exclusive features, the Acti9 iC60 DIN rail miniature circuit breakers have been specifically designed to provide first-rate protection and continuity of service.
- VisiSafe: provides protection during maintenance work on downstream circuits
- VisiTrip: signals with a redflag the faulty miniature circuit breaker outgoers to reduce intervention time
- Class-2 insulation: double insulation distance to ensure continuous protection for both operators and unqualified persons
- Pollution Class 3 for operation in more polluted environments such as some industrial applications
- Fully compliant with standards IEC/EN 60898-1 and IEC/EN 60947-2
- Add-on fully immune Acti9 iC60 Vigi earth leakage protection devices: improved continuity of service, especially in polluted environments and networks
- Offers a wide range of electrical auxiliaries: remote indication of Acti9 iC60 status and several tripping actuators: shunt trip, undervoltage trip, overvoltage trip.
Acti9 iC60 MCBs belong to Acti9 complete electrical system providing protection, monitoring and control of your electrical installation.
-
Full system and electrical compatibility with the Acti9 range and with compact NSX molded case circuit breakers (MCCBs)
-
Acti9 iC60 miniature circuit breakers are divided in three ranges Acti9 iC60N, iC60H and iC60L to cover your electrical requirements:
•Nominal current: 1 to 63 A
•Large choice of breaking capacities— up to 100 kA— and tripping curves: B, C, D, K, Z and MA - Suitable for isolation in compliance with industrial standard IEC 60947
- Operating voltage: up to 440 V AC, insulation voltage: 500 V.
