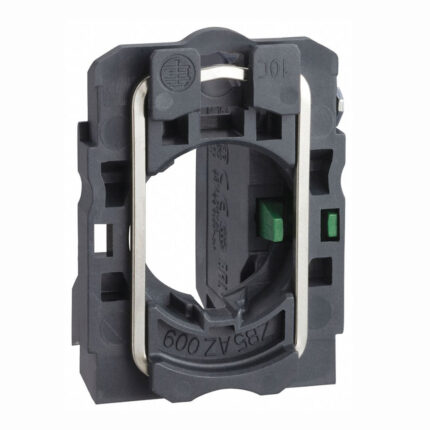

ZB5AZ009 XB5 Pushbutton spare parts Body fixing mounting collar for electrical block

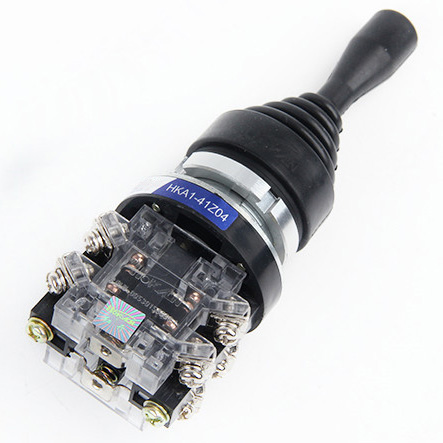

HKA1-41Z04 AC 380V 5A 10A 15A IP65 4 way 30mm fixing hole 4NO 4 position Momentary Joystick Switch

illuminated Type:dot illuminated
Whether the smart:NO
Application:Industrial Control
Structure:Electromagnetic
Max. Voltage:600V
Terminal Type:Screw Terminal
Head Type:Rotary Head
Switch Combination:2NO
Brand Name:NewTrend
LED:NO
Material:Plastic
Place of Origin:China
Max. Current:5A
Model Number:HKA1-41Z04
Mechnical life:100,000 times
Electrical life:100,000 times
Protection Level:IP65
SKU: 60550627322 Category:
Description

HKA1-41Z04 AC 380V 5A 10A 15A IP65 4 way 30mm fixing hole 4NO 4 position Momentary Joystick Switch





Product Name Joystick Switch
Model HKA1-41Z02 HKA1-41Y02 HKA1-41Z04 HKA1-41Y04 HKA1-42Z04 HKA1-42Y04 HKA1-41QZ HKA1-41QY
Reference Photo:
Action Type Momentary Latching Momentary Latching Momentary Latching Momentary Latching
Position 2 Position 4 Position
Contact Type 2NO 4NO 8NO 4NO 4NC
Contact Figure
Voltage & Current AC 380V, max 15A 0.6A 125Vdc, 0.3A 250Vdc, 15A 125Vac/250Vac
Fixing Hole 30mm diameter
Angle ±30°
Mechanical Life 100 Thousand times
Electrical Life 100 Thousand times

* HKA1-41Z02-2:  2 position, 4NO, Momentary

* HKA1-41Y02-2:  2 position, 4NO, Latching

* model plusing “A” in the end: with button type



Dimension of HKA1-41Z02, HKA1-41Y02, HKA1-41Z04, HKA1-41Y04:





Dimension of HKA1-42Z04, HKA1-42Y04:





Dimension of HKA1-41QZ, HKA1-41QY:





Additional information
Weight 0.25 kg
Dimensions 10 × 10 × 10 cm
Size

22mm
Rated Voltage

240V, 380V
