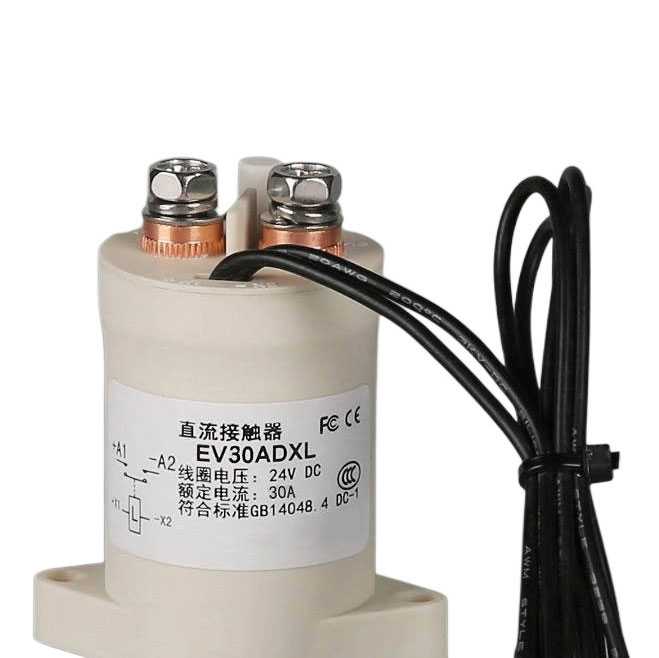

EV30ADXL High Voltage DC Contactor has the advantages that the utility model is provided with one normally open or one normally closed contact, which is suitable for new energy electric vehicles, charging facilities, photovoltaic, wind power generation systems, automotive air conditioning, communication power, UPS, power and other electrical control circuit of the switch control.
Technical Parameters:
|

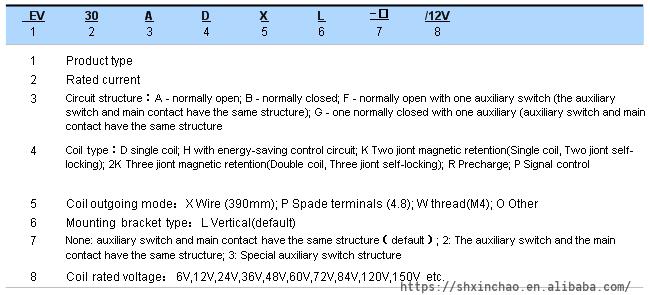

Product Type |
EV30ADXL |
| Contact form | 1 NO(SPST-NO) or 1NC(SPST-NC) |
| Coil Rated voltage(DC V) | 6V,12V,24V,36V,48V,60V,72V,84V,120V,150V etc. |
| Contact voltage(DC V) | 5-1000V |
| Contact circuit rated load current (DC-1) | 30A |
| Typical voltage drop across contacts per 30A | <80mV |
| the cooling pull-in voltage at (20±5)℃ (V) | <70% |
| the cooling drop-out voltage at (20±5)℃(V) | <35%,<5% |
| Working voltage range of 40 degrees celsius coil | 0.8-1.2Us |
| Drop-out time(n/o contacts to open) | 20ms |
| Pull-in time (n/o contacts to close) | 10ms |
| connect the maximum contact bounce time | 10ms |
| Disconnect the maximum contact bounce time | 7ms |
| Insulation Resistance | 100MΩ |
| Electric strength to resist | 50Hz/60Hz 2200VAC 1minute |
| Typical fault currents which can be ruptured | 400A/5ms at 48V DC |
| Coil power (W) | 2-7 |
| Temperature rise of coil (K) | ≤35 |
| Temperature rise on outgoing terminal (K) | ≤65 |
| Electric life | 20000 times |
| Mechanical life | 300 thousand times |
| Work specification | Continuous |
| Contact material | Alloy |
| Inrush time(Max) | 130ms |
| Maximum switching current | 300A 320VDC(More than 1 times) |
| Maximum switching power | 100kW |
| Load terminal type | M5 Rose |
| Coil terminal type | 0.3 square silicone wire, 390mm long |
| Testing organization certification | CE,FCC,RoHS |
Use of Enviroment:
| Contact lead M5 tightening torque(N.m) | <2.5 appropriate |
| Coil lead mode | Wire dipping tin |
| Ambient temperature | -40~+85℃ |
| Relative humidity | +20℃ 98% |
| Vibration freq. atthe fixed position | 3G, 1~50Hz amplitude 0.5mm |
| concussion | (60~100) time/minute,Acceleration≤4g |
| Altitude | 2000m |
| Installation direction | Random |
| International Protection | IP68 |

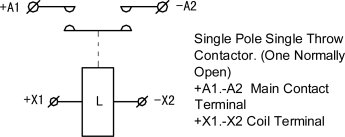

Wiring Diagram:

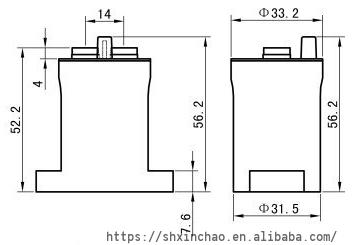

Installation Diagram:
