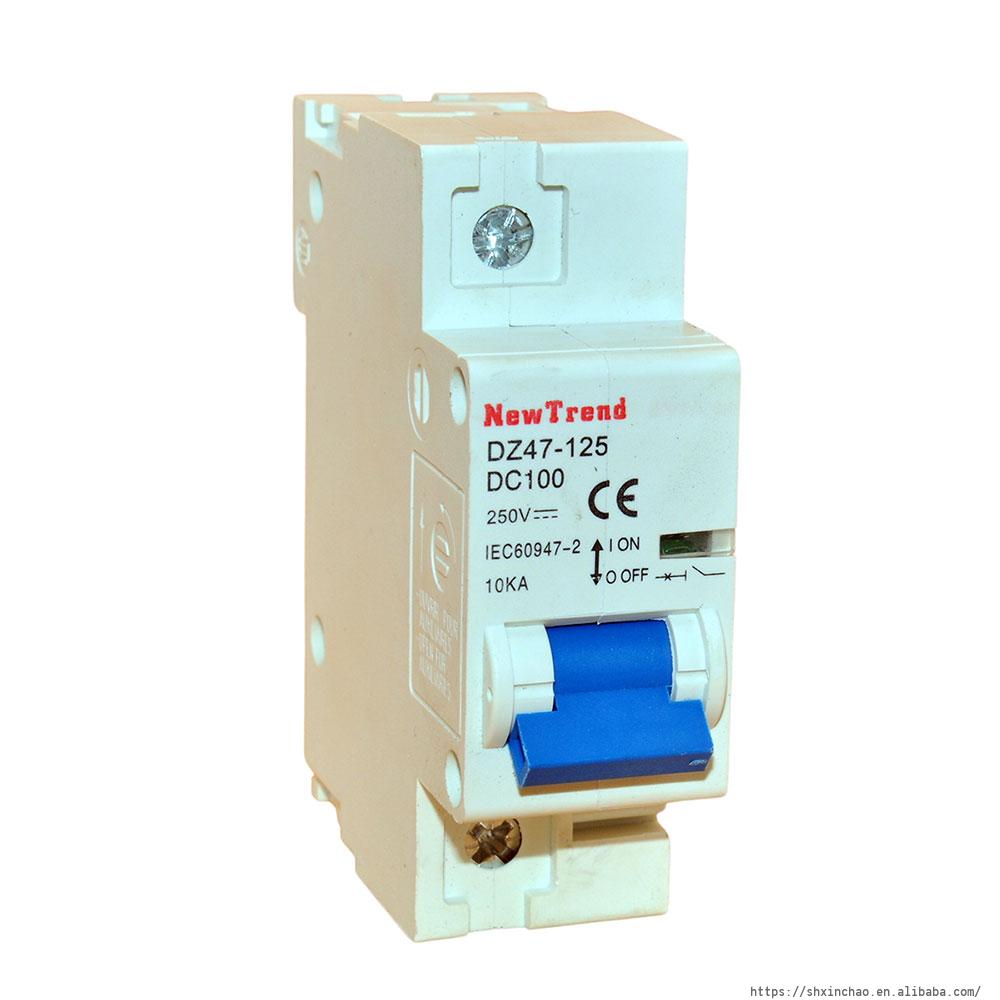

DZ47-125Z DC MCB Solar PV breaker 80A 100A 125A Amp 1P 2P 3P 4P 48VDC 60VDC 250VDC 500VDC 750VDC 1000VDC PV Circuit Breaker

Electrical Features
– Rated current In: 80A 100A 125A
– Poles:1P, 2P, 3P, 4P
– Rated voltage Ue:1P(250VDC), 2P(500VDC), 3P(750VDC), 4P(1000VDC)
– Rated frequency:50/60Hz
– Rated breaking capacity :6000/10000A
– Rated impulse withstand voltage(1.2/50) Uimp:4,000V
– Dielectric test voltage at ind. Freq. for 1 min:2kV
– Pollution degree:2
– Thermo-magnetic release characteristic: C (7~10)In

Mechanical Features
– Electrical life:>1500
– Mechanical life:20,000
– Contact position indicator: Yes
– Protection degree:IP20
– Reference temperature for setting of thermal element:30℃
– Ambient temperature (with daily average≤35℃): -5℃…+40℃

– Storage temperation: -2℃5…+70℃

Installation
– Terminal connection type: Cable/U-type busbar/Pin-type busbar
– Terminal size top/bottom for cable: 25mm2   18-3AWG
– Terminal size top/bottom for busbar: 25mm2    18-3AWG
– Tightening torque 2.0 N*m  22 In-Ibs.
– Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
– Connection: From top and bottom

Combination with accessories
– Auxiliary contact: Yes
– Shunt release: Yes
– Under voltage release: Yes
– Alarm contact: Yes
