DELIXI ELECTRIC · AC miniature circuit breaker

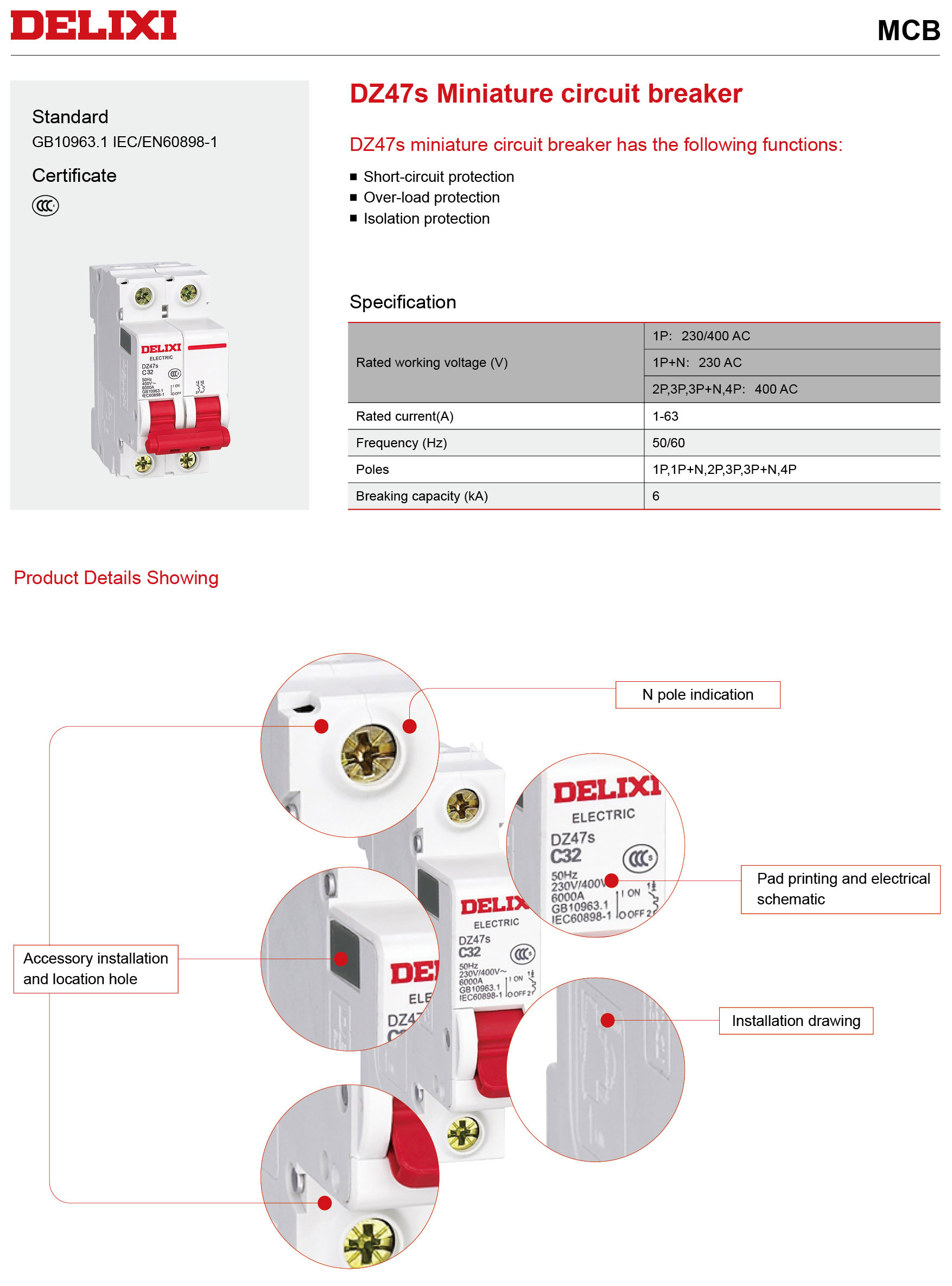

Product overview
DELIXI DZ47s C-curve miniature circuit breakers protect AC distribution circuits against overload and short-circuit faults. This listing covers 6–63 A selections by pole arrangement; match the complete model and operating-voltage condition.
Technical selection summary
| Listing / reference model | DELIXI DZ47s |
|---|---|
| Product type | AC miniature circuit breaker |
| Manufacturer protection-function reference | Thermal-magnetic trip for overload and short-circuit protection in the DELIXI DZ47s catalogue. B, C and D are separate characteristic versions; match the marked curve, rated current and pole arrangement |
| Manufacturer rated-frequency reference | 50 Hz in the DELIXI DZ47s Chinese manufacturer technical table. The separate 50/60 Hz figure beside the dielectric test voltage describes a one-minute test and is not the rated supply-frequency entry; match the actual model and market version |

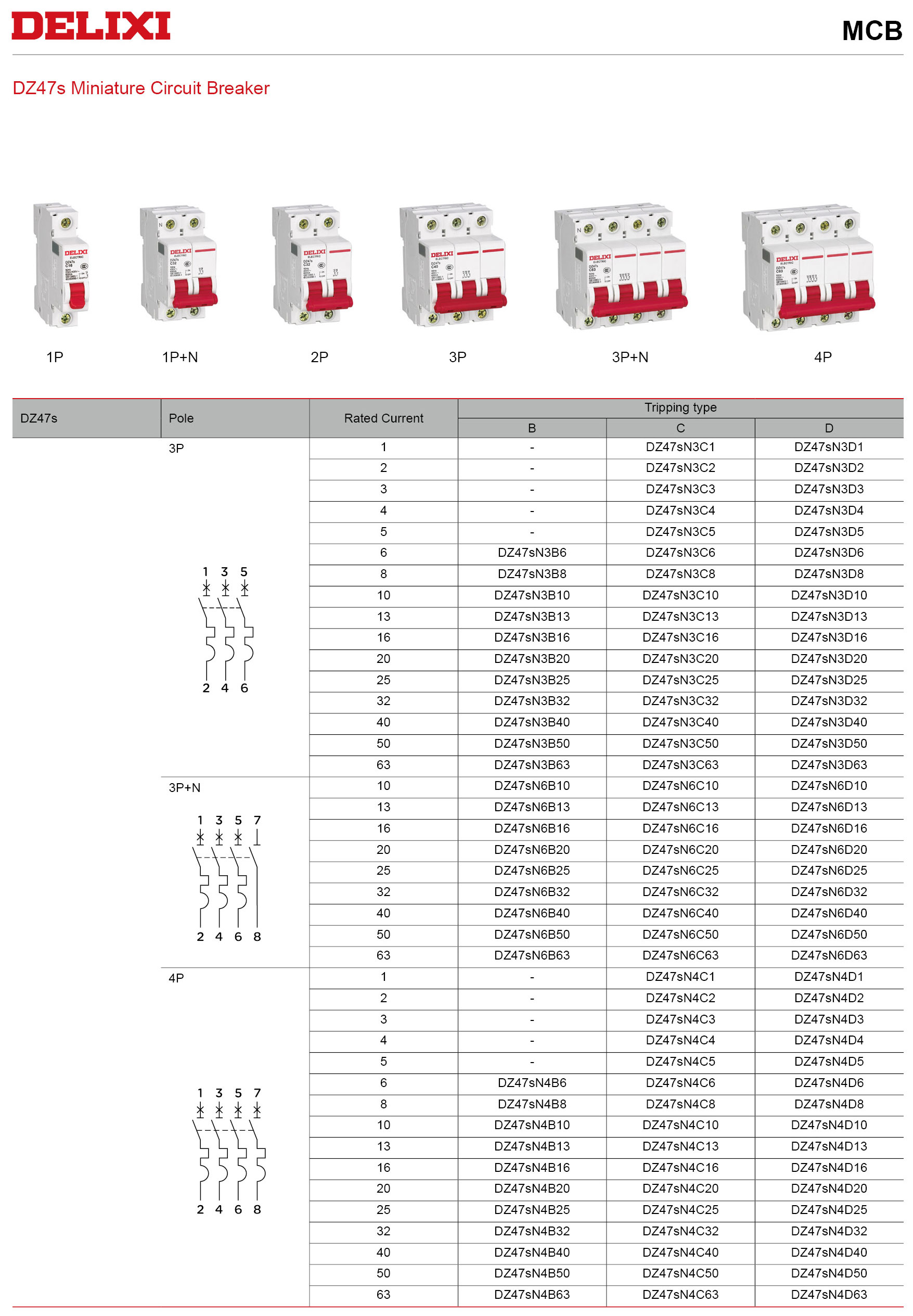

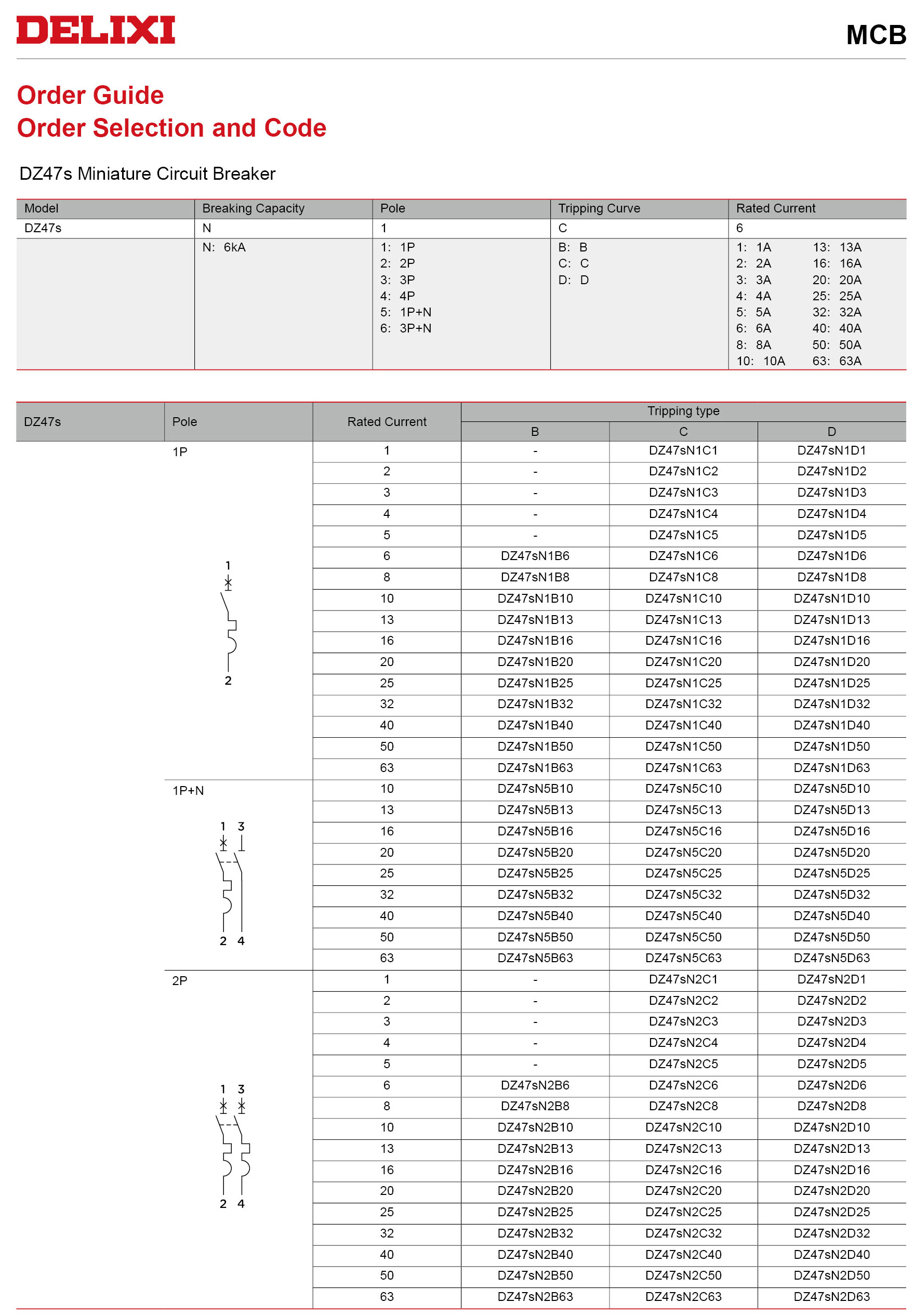

The manufacturer catalogue contains separate pole, current and B/C/D characteristic choices. Match the complete DZ47s code and the marked C-curve configuration for this listing.
Typical applications
- AC distribution-board overload and short-circuit protection.
- Panel procurement with exact model, pole and characteristic selection.
Specify your enquiry
For a focused quotation, include:
- Complete model, configuration and quantity
- Operating voltage, current and application duty
- Coil / protection selection, mounting and wiring requirements
- Nameplate photograph and required technical documents

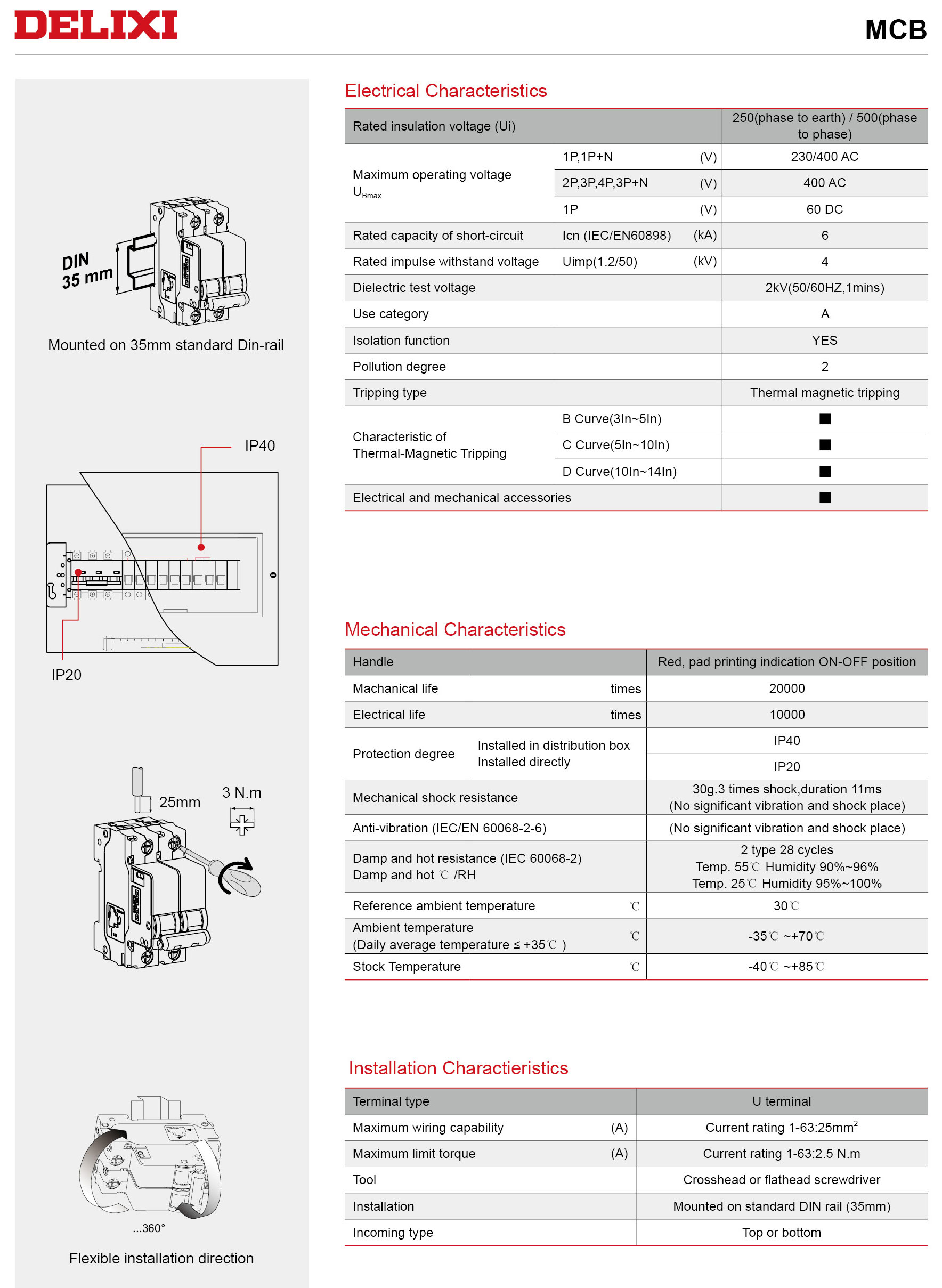

Official DZ47s English technical catalogue (PDF)

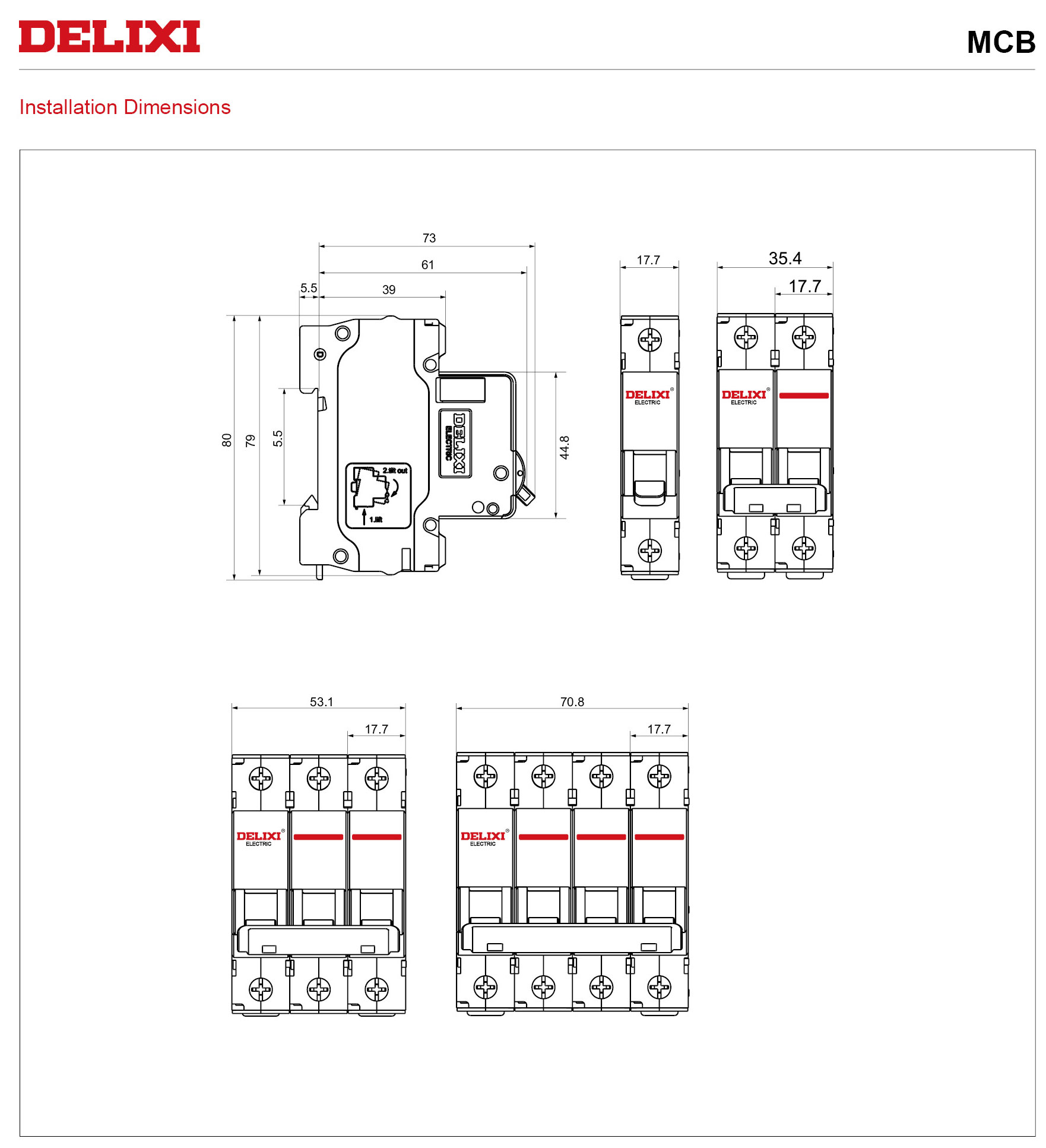

Product reference images and drawings
