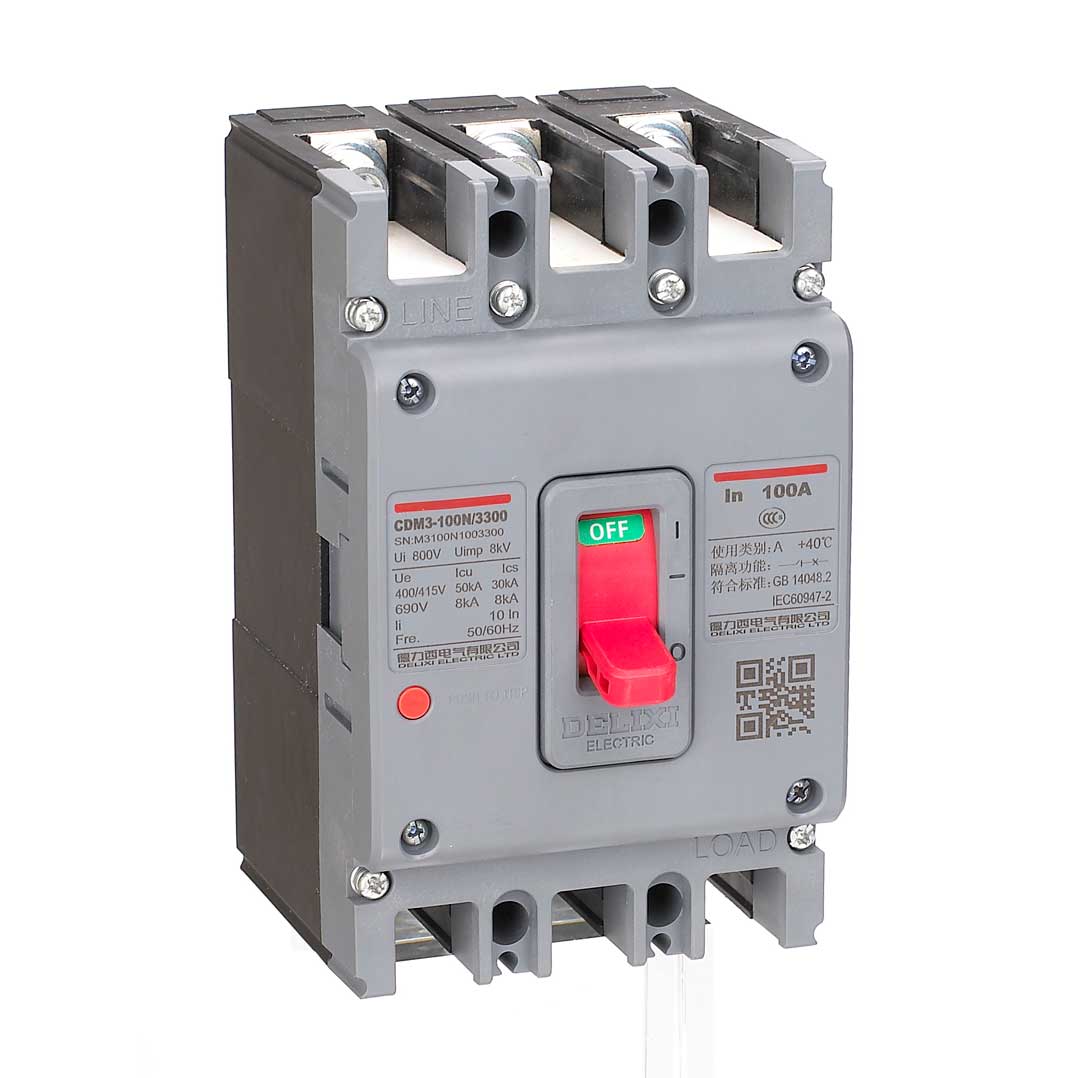

Delixi original CDM3 Molded Case Circuit Breaker CDM3-125S CDM3-160S CDM3-250S CDM3-400S CDM3-630S CDM3-800S CDM3-1250S MCCB

Rated Frequency:50/60hz
Type:Moulded Case
BCD Curve:C
Brand Name:Delixi
Place of Origin:China
Model Number:CDM3
Poles Number:3P, 4P
Breaking Capacity:50kA
SKU: 1600509232153 Category:
Description

Delixi original CDM3 Molded Case Circuit Breaker CDM3-125S CDM3-160S CDM3-250S CDM3-400S CDM3-630S CDM3-800S CDM3-1250S MCCB



Brand Name:DELIXI

Model Number:CDM3

Type:Moulded Case

Poles Number:1

Model:CDM3

Rated voltage:400/415/690V

Frame specifications:63/100/125/160/250/400/630/800/1250A

Breaking Capacity:S: 35KA F: 50KA N: 70KA H: 85KA R: 100KA

Rated current:10A…1250A

Pole:3 4

Tripping way:

Thermal magnetic tripping single magnetic tripping

Ui:800V

Uimp:8KV

Icu/Ics AC690V:8/8, 10/10

Additional information
Weight 2 kg
Dimensions 25 × 25 × 25 cm
Rated Current

10A ~ 1250A
Rated Voltage

400V/415V/690V
