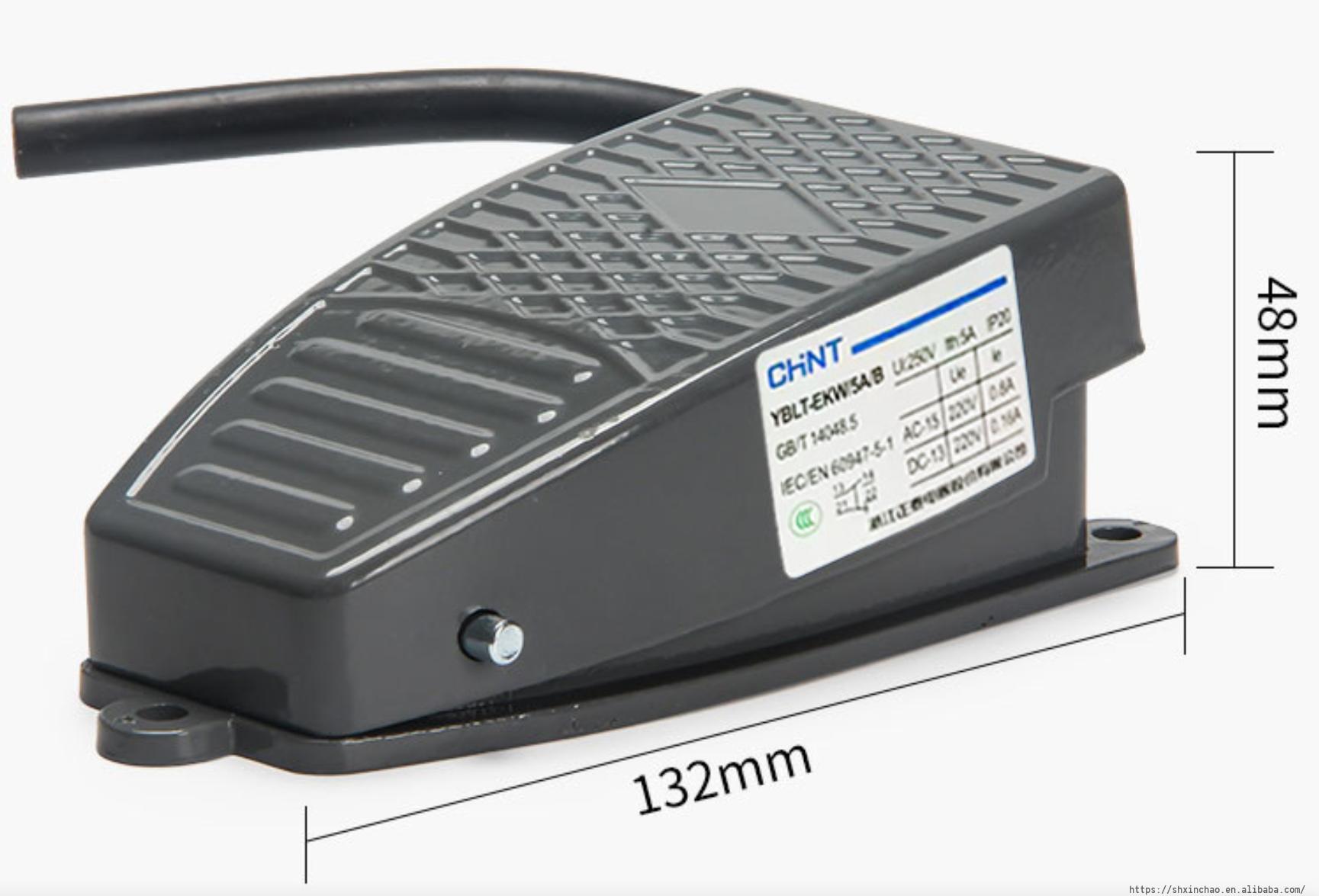

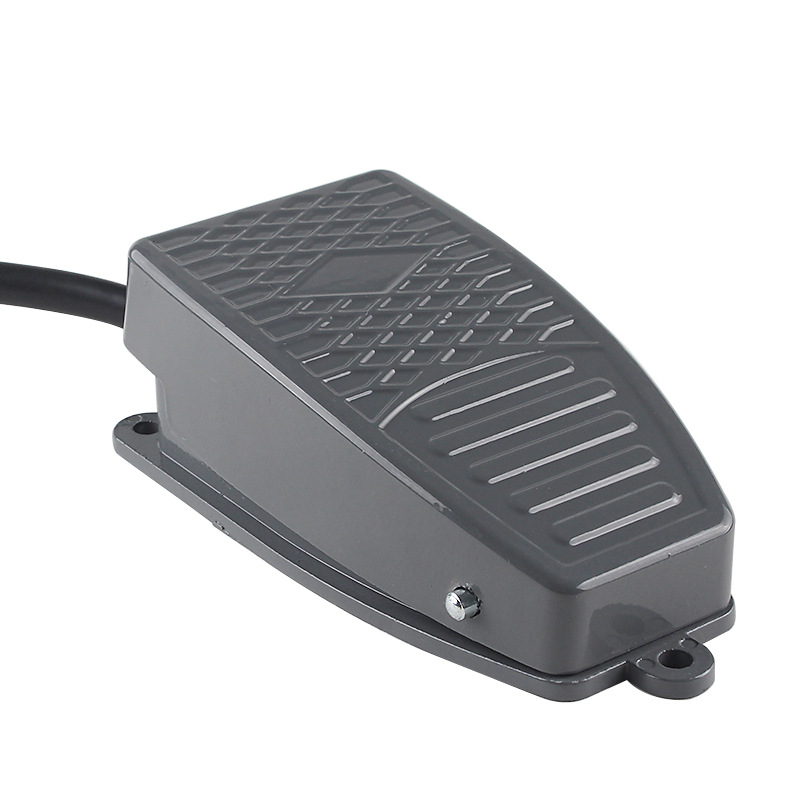

Chint original YBLT-EKW/5A/B 110V 220V 230V 240V 380V AC 12V 24V 48V 74V 100V DC CHNT Cast aluminum alloy Foot Switch

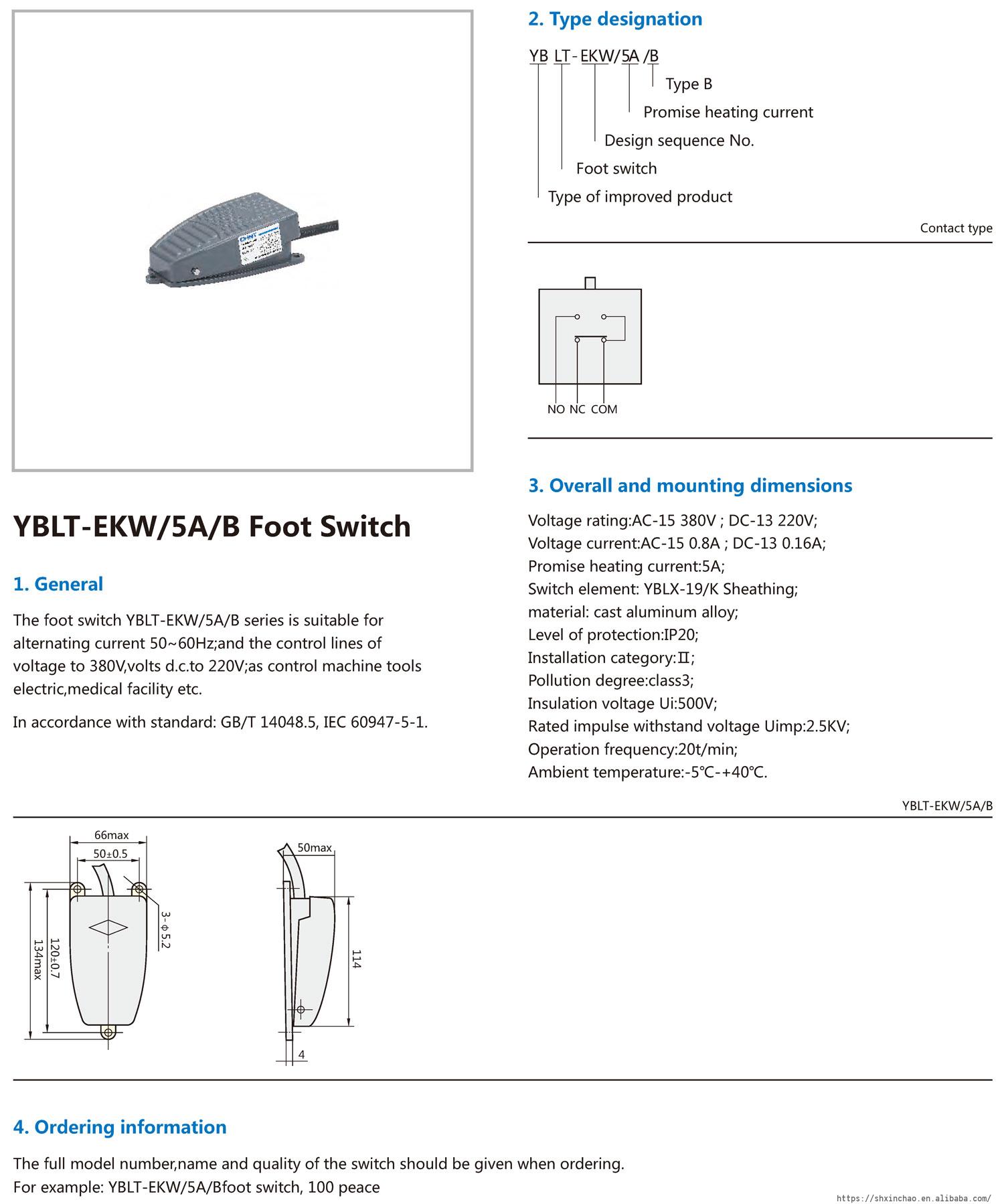

1. General
The foot switch YBLT-EKW/5A/B series is suitable for alternating current 50~60Hz;and the control lines of voltage to 380V,volts d.c.to 220V; as control machine tools electric,medical facility etc. In accordance with standard: GB/T 14048.5, IEC 60947-5-1.

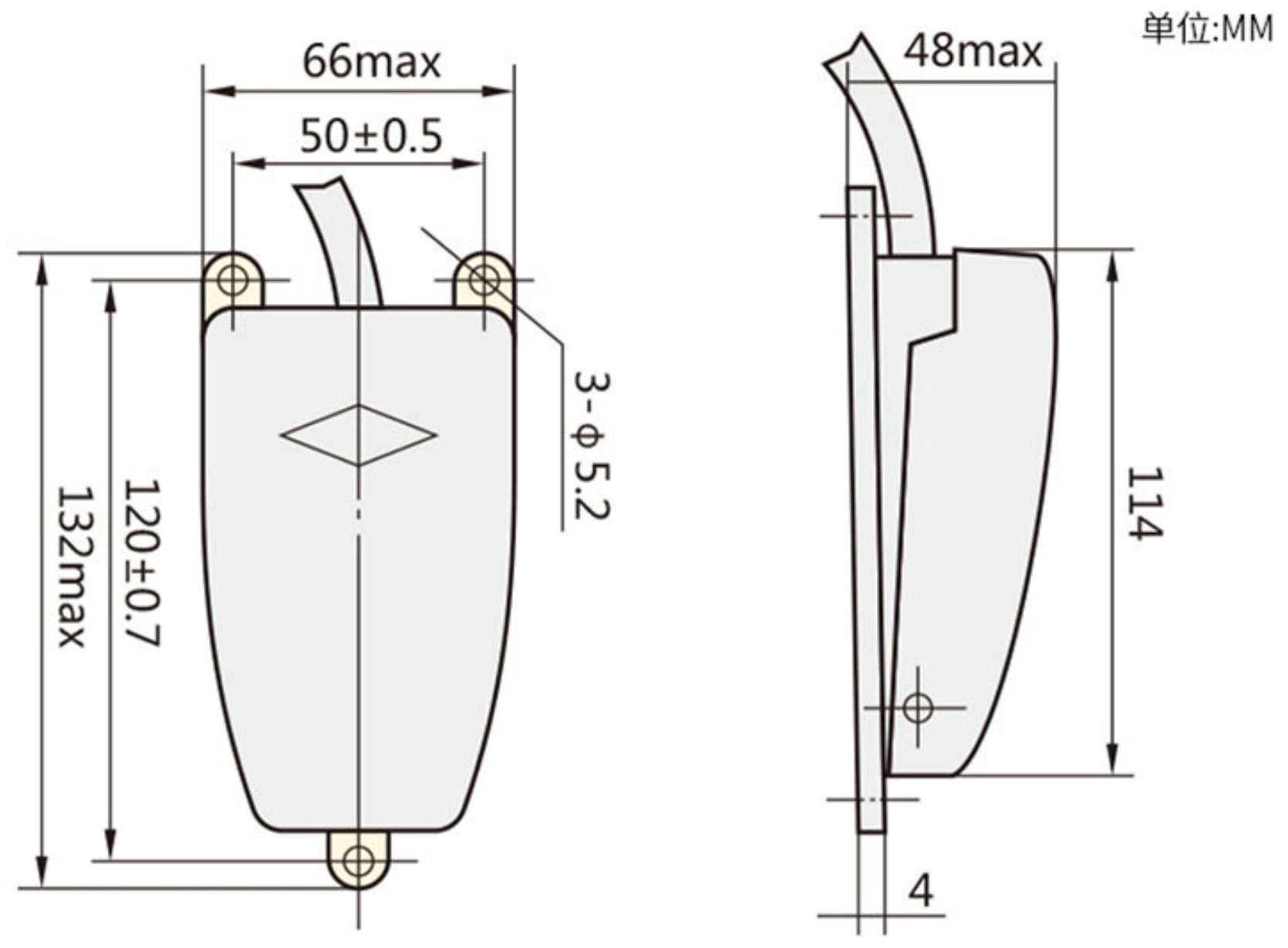

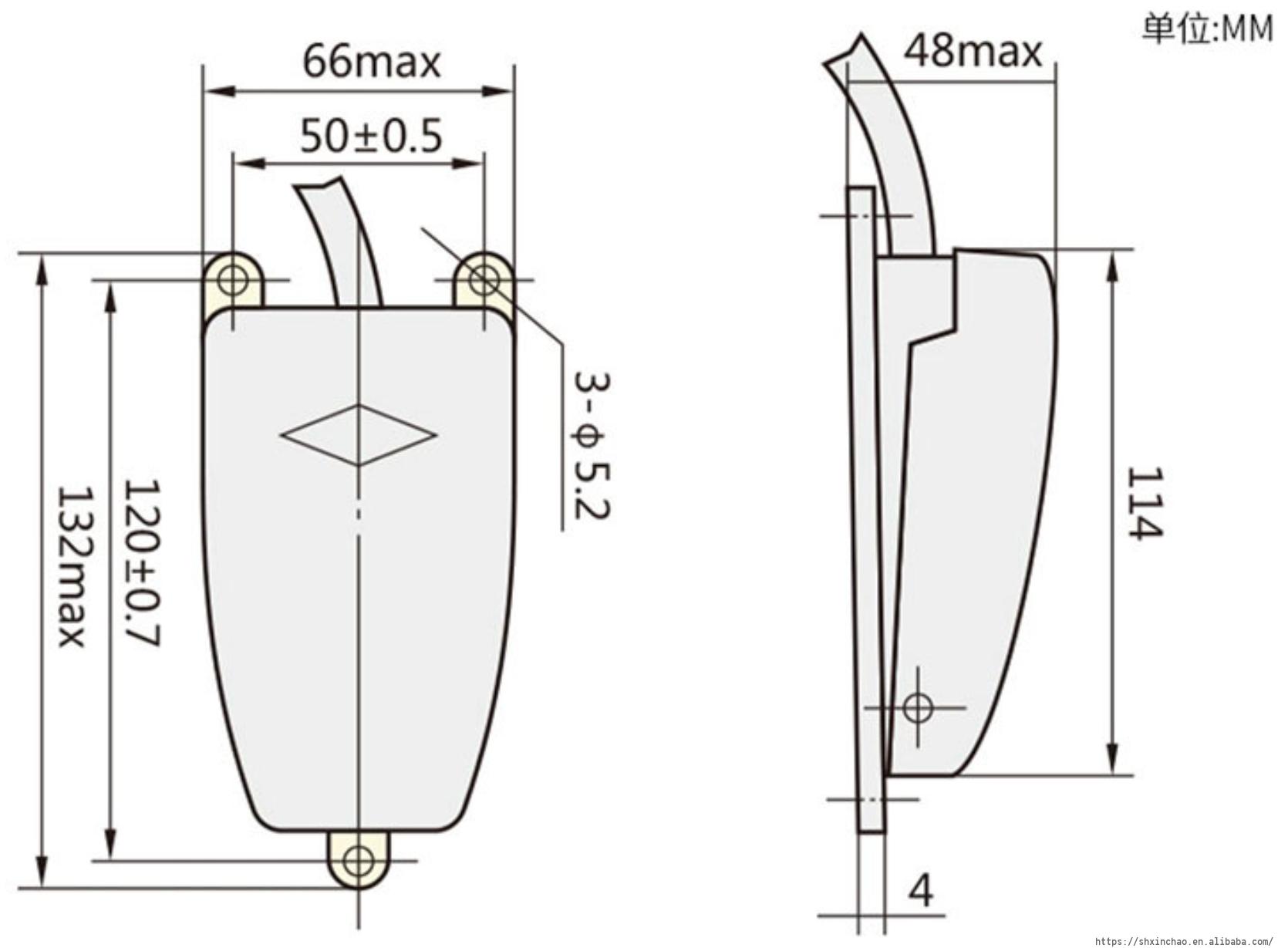

2. Overall and mounting dimensions
Voltage rating:AC-15 380V ; DC-13 220V;
Voltage current:AC-15 0.8A ; DC-13 0.16A;
Promise heating current:5A;
Switch element: YBLX-19/K Sheathing;
material: cast aluminum alloy;
Level of protection:IP20;
Installation category:Ⅱ;
Pollution degree:class3;
Insulation voltage Ui:500V;
Rated impulse withstand voltage Uimp:2.5KV;
Operation frequency:20t/min;
Ambient temperature:-5℃-+40℃.
