Chint original NXBLE-40 1P+N DPNL RCBO C6 C10 C16 C20 C25 C32 C40 CHNT Residual Current Operated Circuit Breaker

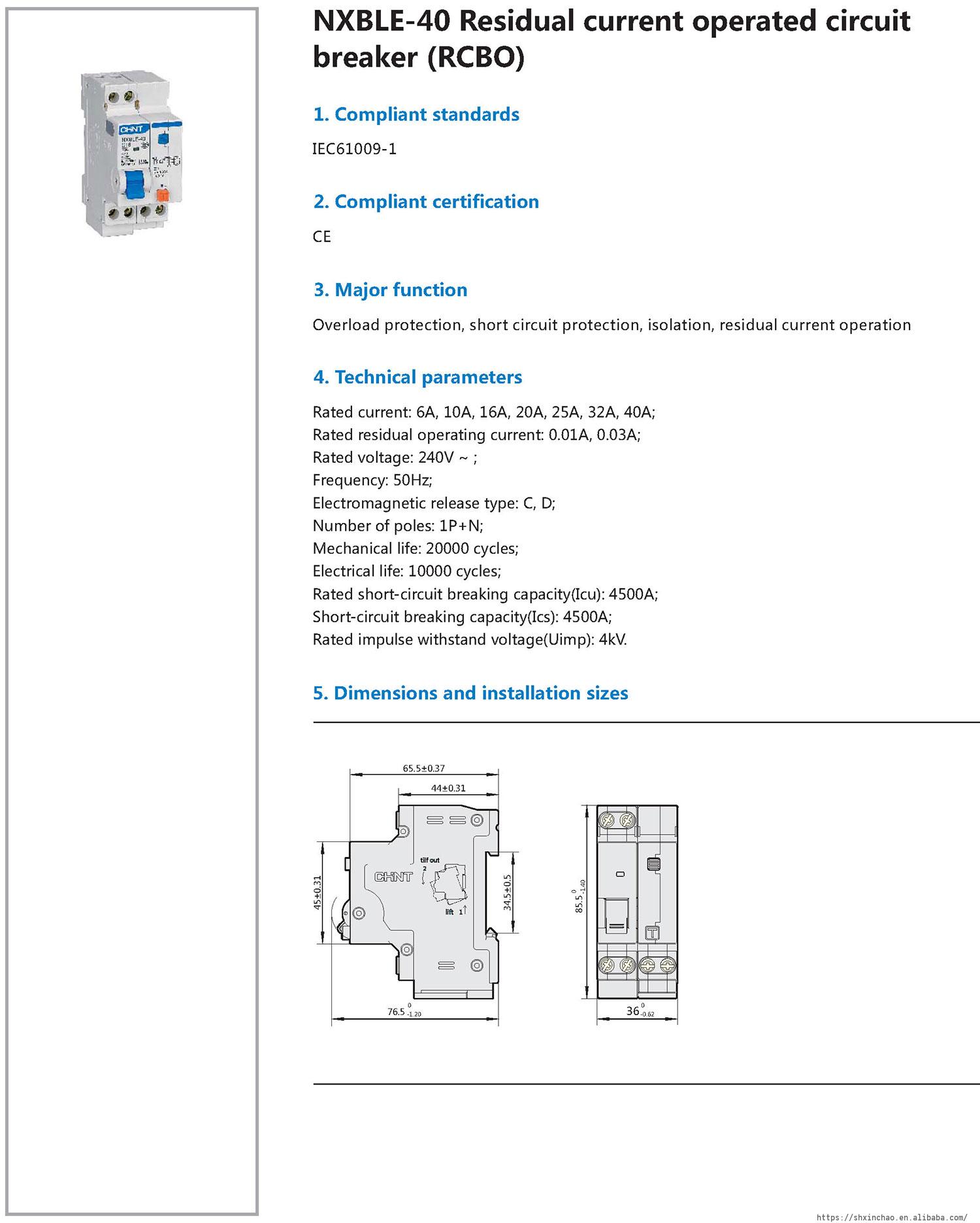

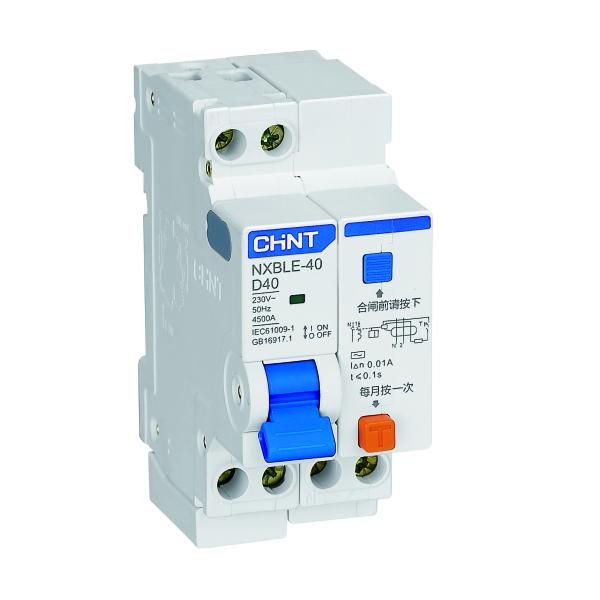

Chint NXBLE-40 Residual current operated circuit breaker (RCBO)
1. Compliant standards: IEC61009-1
2. Compliant certification: CE
3. Major function: Overload protection, short circuit protection, isolation, residual current operation
4. Technical parameters
Rated current: 6A, 10A, 16A, 20A, 25A, 32A, 40A;
Rated residual operating current: 0.01A, 0.03A;
Rated voltage: 240V ~ ;
Frequency: 50Hz;
Electromagnetic release type: C, D;
Number of poles: 1P+N;
Mechanical life: 20000 cycles;
Electrical life: 10000 cycles;
Rated short-circuit breaking capacity(Icu): 4500A;
Short-circuit breaking capacity(Ics): 4500A;
Rated impulse withstand voltage(Uimp): 4kV.
