Chint NXRC
Control Relay
Control Relay – verified catalogue data for confident selection
Product Overview
The Chint NXRC is a control relay for industrial automation and electrical control circuits. This listing uses the model-specific values selected from the product catalogue. Please confirm the required rating and configuration before ordering.
Technical Parameters
| Applicable standard | IEC/EN60947-5-1. |
| Maximum Rated Operational Voltage (AC) | 380V |
| Maximum Rated Operational Voltage (DC) | 220V |
| Main Contact Configurations | 4NC (04), 1NO+3NC (13), 2NO+2NC (22), 3NO+1NC (31), 4NO (40) |
| AC-15 Rated Operational Voltage and Current | 380V / 1.5A (Control capacity: 570VA) |
| DC-13 Rated Operational Voltage and Current | 220V / 0.3A (Control capacity: 66W) |
| Operating Frequency | 1200 times/h |
| Ambient Operating Temperature | -5°C~+40°C (mean value does not exceed +35°C within 24 hours) |
| Primary Applications | AC 50Hz or 60Hz relay control circuit, signal transmission circuit and isolation amplifier circuit |
| Rated Insulation Voltage (Ui) | 690V |
| Conventional Free Air Thermal Current (Ith) | 10A |
| Installation Altitude | Not exceed 2000m |
| Pollution Degree | Class 3 |
| Installation Category | Category III |
| Installation Slope Angle | Not bigger than ±5° between mounting surface and vertical plane |
| Brand | Chint |
| Model | NXRC |
| Product type | Control Relay |
Reference Datasheet Pages
The following pages were selected from the model catalogue and are included for technical reference:

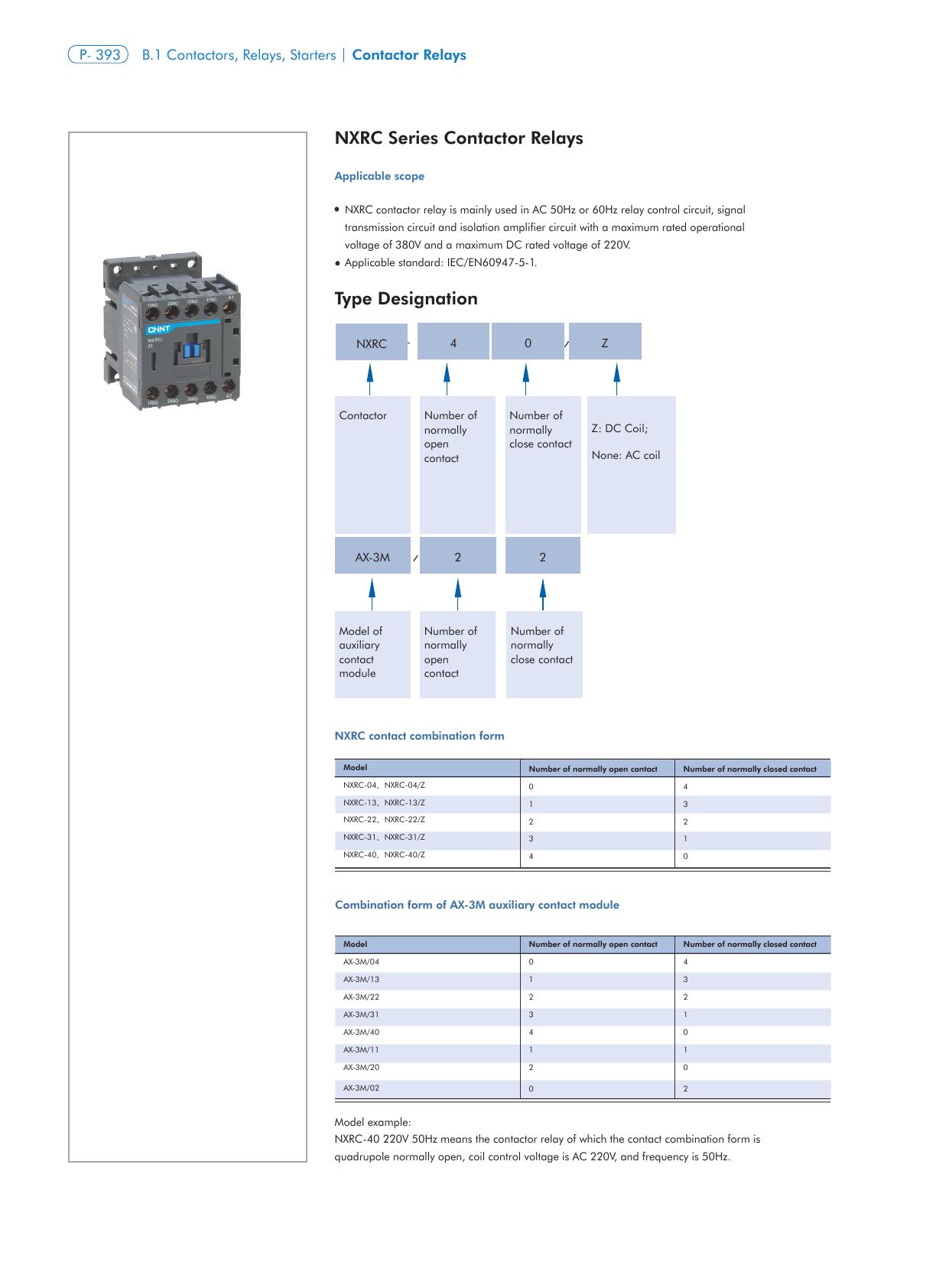

NXRC Catalog and Technical Data
