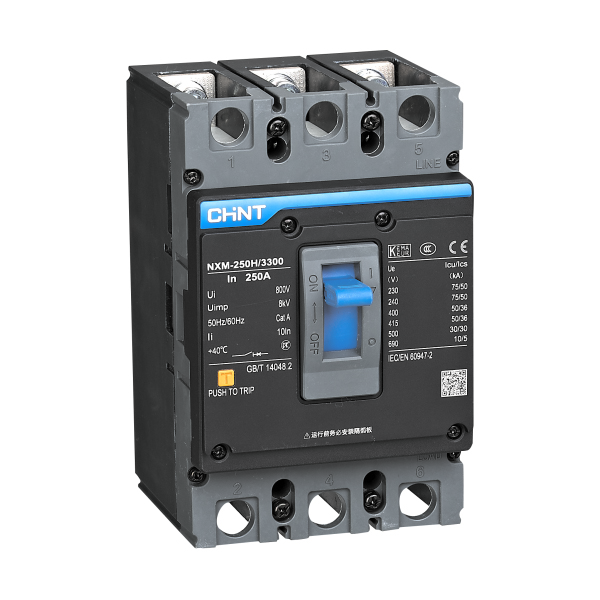

Chint NXM MCCB

Name: Chint NXM MCCB
Brand: CHINT
SKU: 1770411675418107904
Availability: InStock

Brand Name:CHINT
Place of Origin:China
Material:Plastic
Model Number:NXM
Rated Frequency (Hz):50/60hz
Breaking Capacity:15kA – 70kA
Rated Voltage:380V/400V/415V
Trip Unit Technology:Thermal-Magnetic
Type:Moulded Case

SKU: 1770411675418107904 Category: Chint MCCB ACB

Where to Use NXM?

The Chint NXM MCCB is designed for industrial power distribution, commercial building panels, motor protection circuits, and infrastructure projects. With rated current range of 10A - 1250A and AC 690V rating, this molded case circuit breaker provides reliable protection against overload, short-circuit, and undervoltage conditions. Perfect for ensuring electrical safety in demanding environments.

Why Choose NXM Series?

IEC/EN60947-2 Certified - Complies with international safety standards (CE, KEMA, EAC approved)
Reliable Breaking Capacity - High fault current interruption capability up to 100kA
Flexible Configuration - 3P / 4P pole options, adjustable current settings
Chint Original Quality - Direct from China's leading electrical manufacturer
Easy Maintenance - Modular design allows quick replacement of accessories

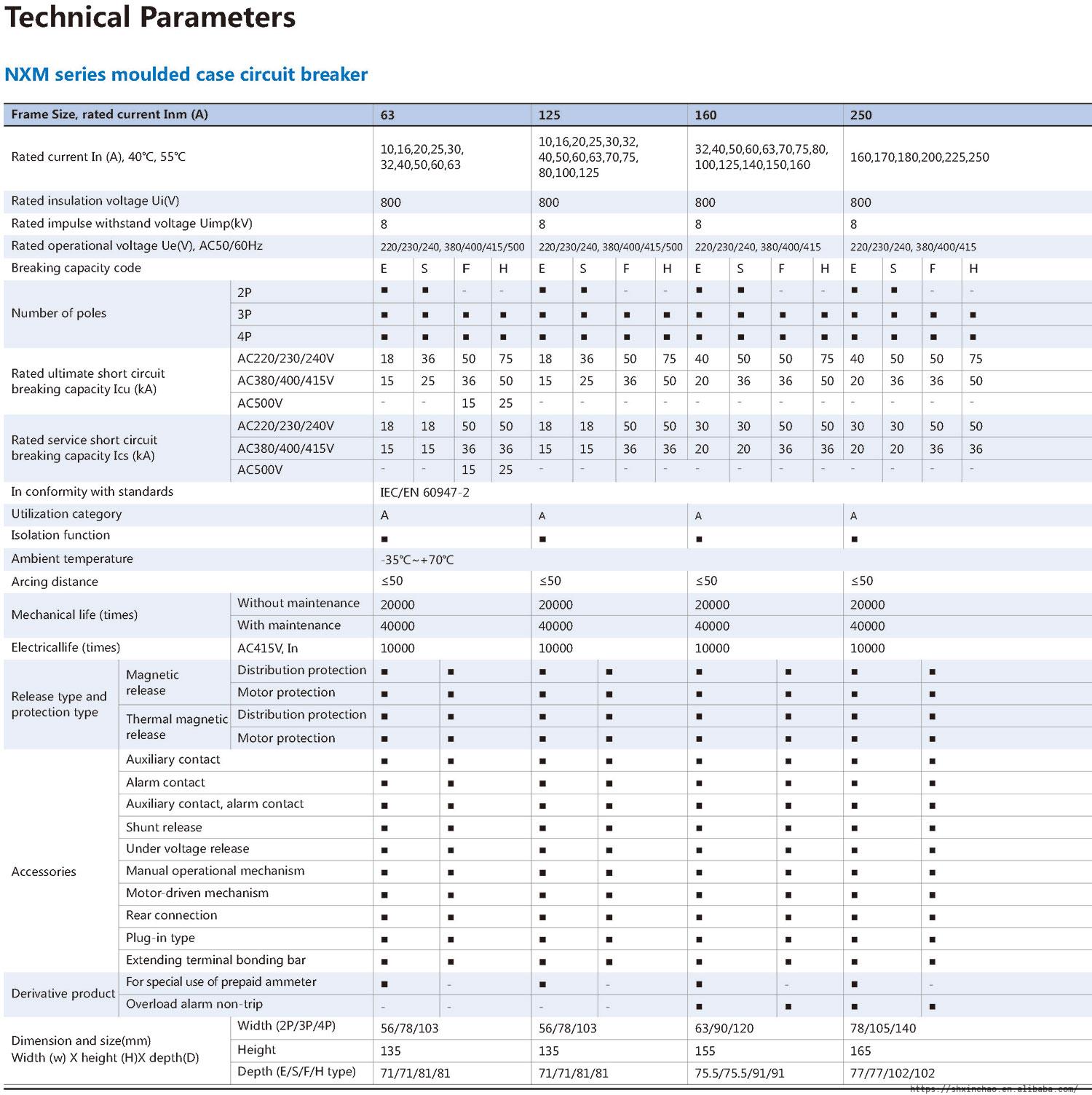

Technical Specifications

Parameter	Specification
Model Series	NXM
Type	Molded Case Circuit Breaker (MCCB)
Rated Current	10A - 1250A
Rated Voltage	690V AC
Pole Configuration	3P / 4P
Standard	IEC/EN 60947-2

Frequently Asked Questions

Q: What is the difference between MCCB and ACB?

A: MCCB (Molded Case Circuit Breaker) is used for currents up to 1600A in distribution panels. ACB (Air Circuit Breaker) handles higher currents (1000A-6300A) and is used in main power distribution boards. Choose MCCB for branch circuits and ACB for main incoming power.

Q: How do I select the right current rating?

A: Calculate your maximum load current and add 20-25% safety margin. For motor applications, consider the inrush current (typically 6-8 times rated current). NXM series offers multiple ratings from 10A - 1250A to match your needs.

Q: Can NXM be used for motor protection?

A: Yes, NXM series supports motor protection with adjustable thermal-magnetic trip units. Select a rating that accommodates the motor's starting current while providing overload protection during normal operation.

Need Technical Support? Our engineers can help you select the right model. Contact us at sales@sntelec.com or WhatsApp +86-18019187010.

Description
Additional information

Description

Chint NXM NXM-125S NXM-250S NXM-400S NXM-630S NXM-800S 3300 160A 250A 350A 400A 630A 800A CHNT MCCB Molded Case Circuit Breaker

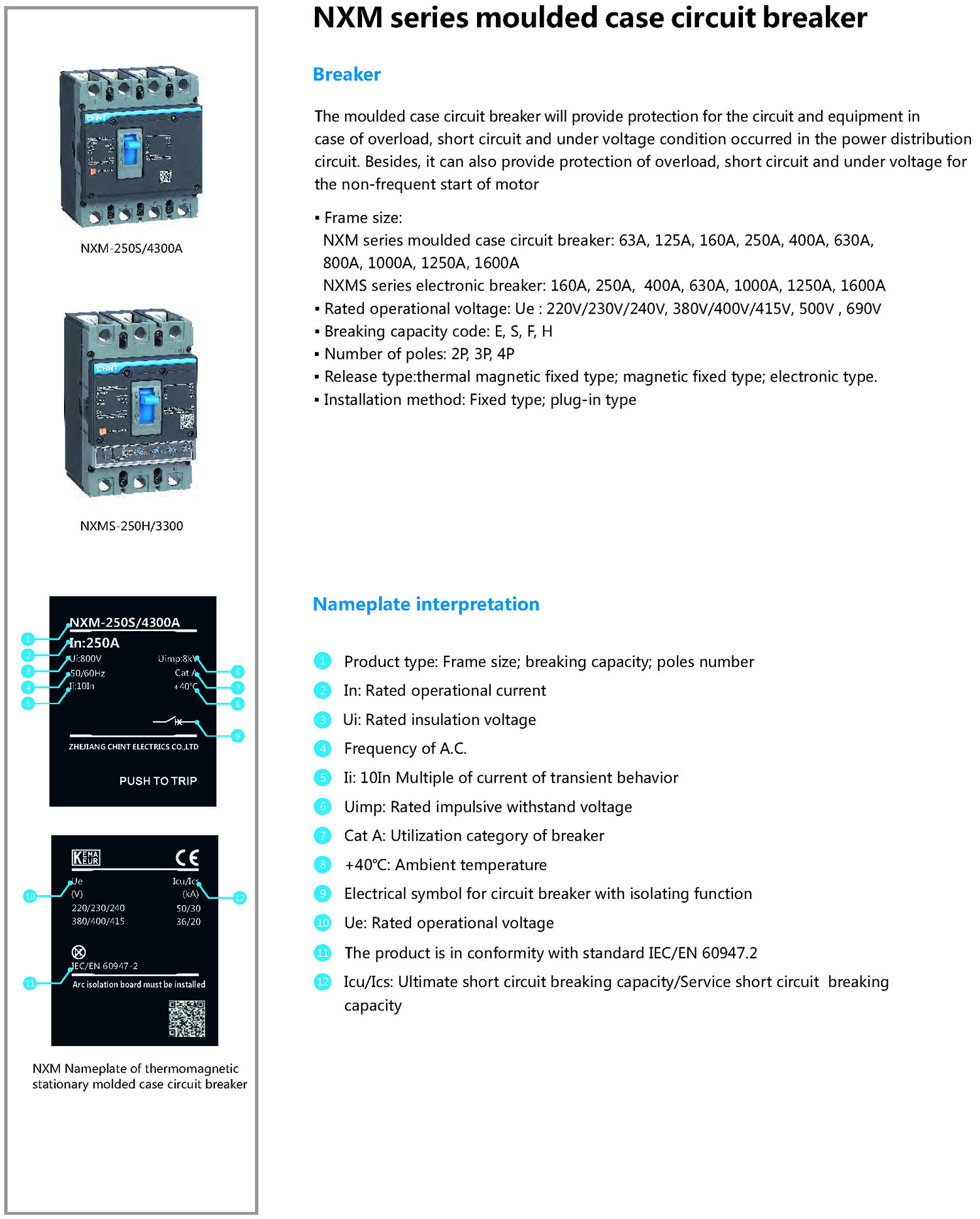

Chint NXM moulded case circuit breaker will provide protection for the circuit and equipment in case of overload, short circuit and under voltage condition occurred in the power distribution circuit. Besides, it can also provide protection of overload, short circuit and under voltage for the non-frequent start of motor

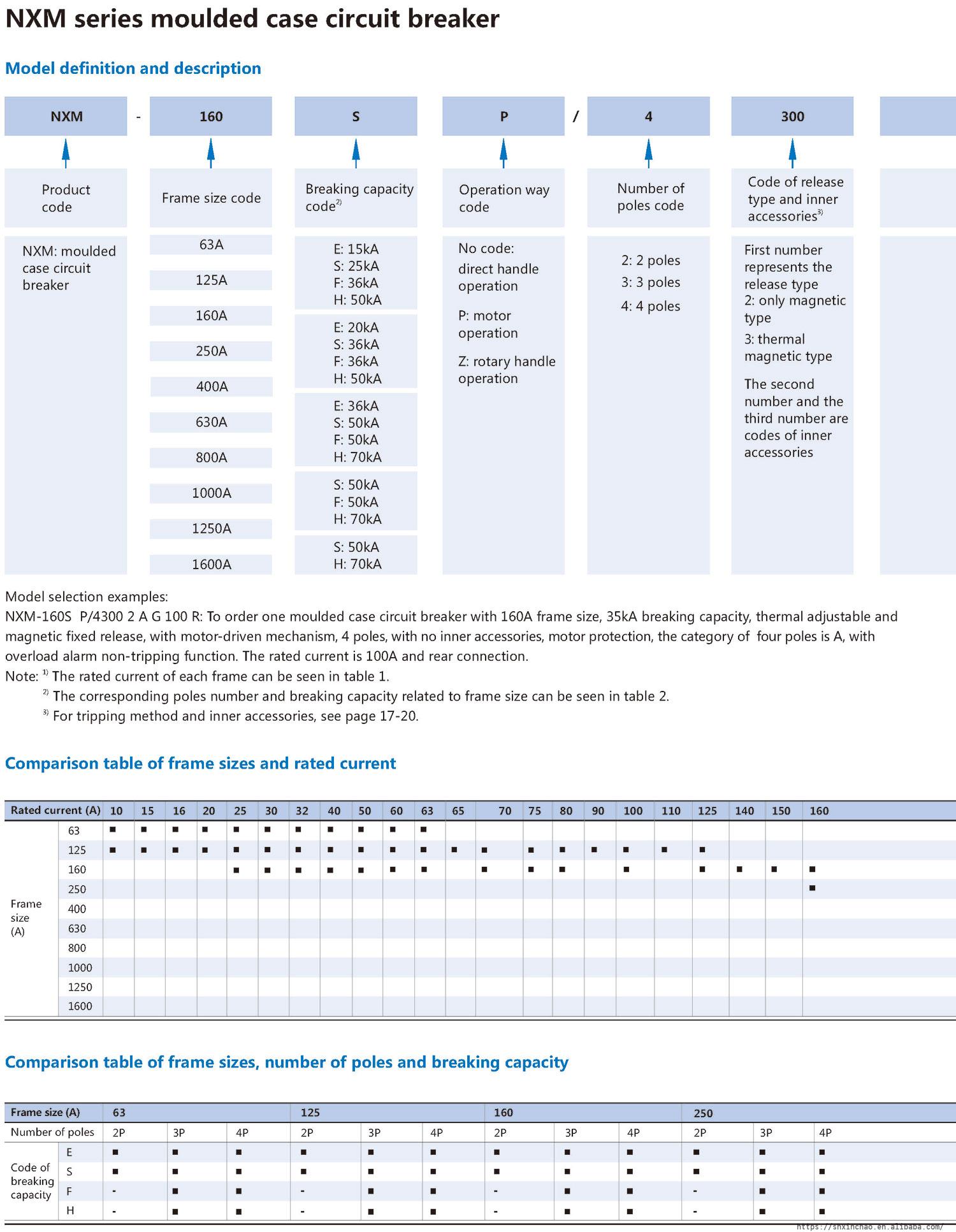

Frame size:
NXM series moulded case circuit breaker: 63A, 125A, 160A, 250A, 400A, 630A, 800A, 1000A, 1250A, 1600A

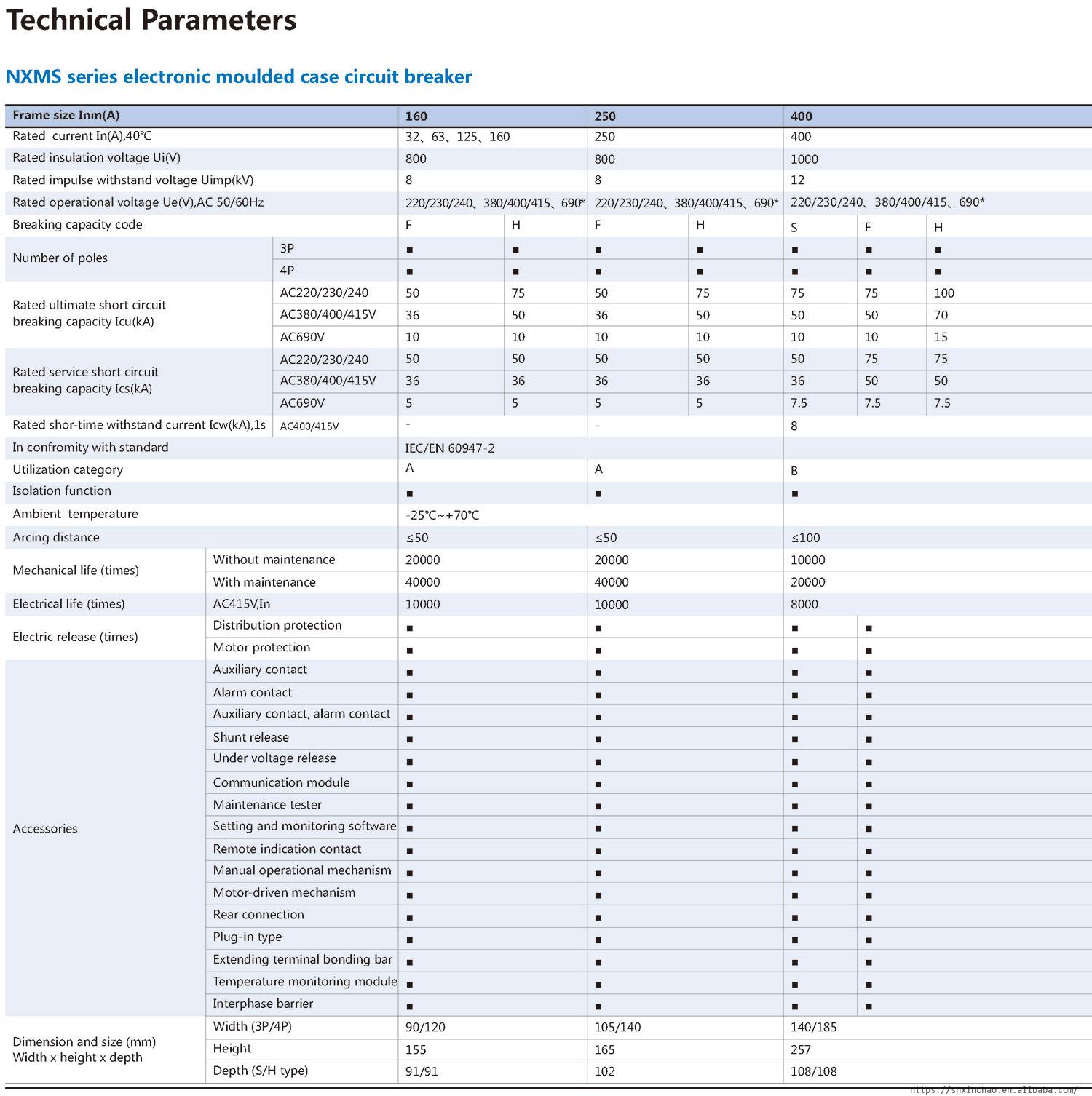

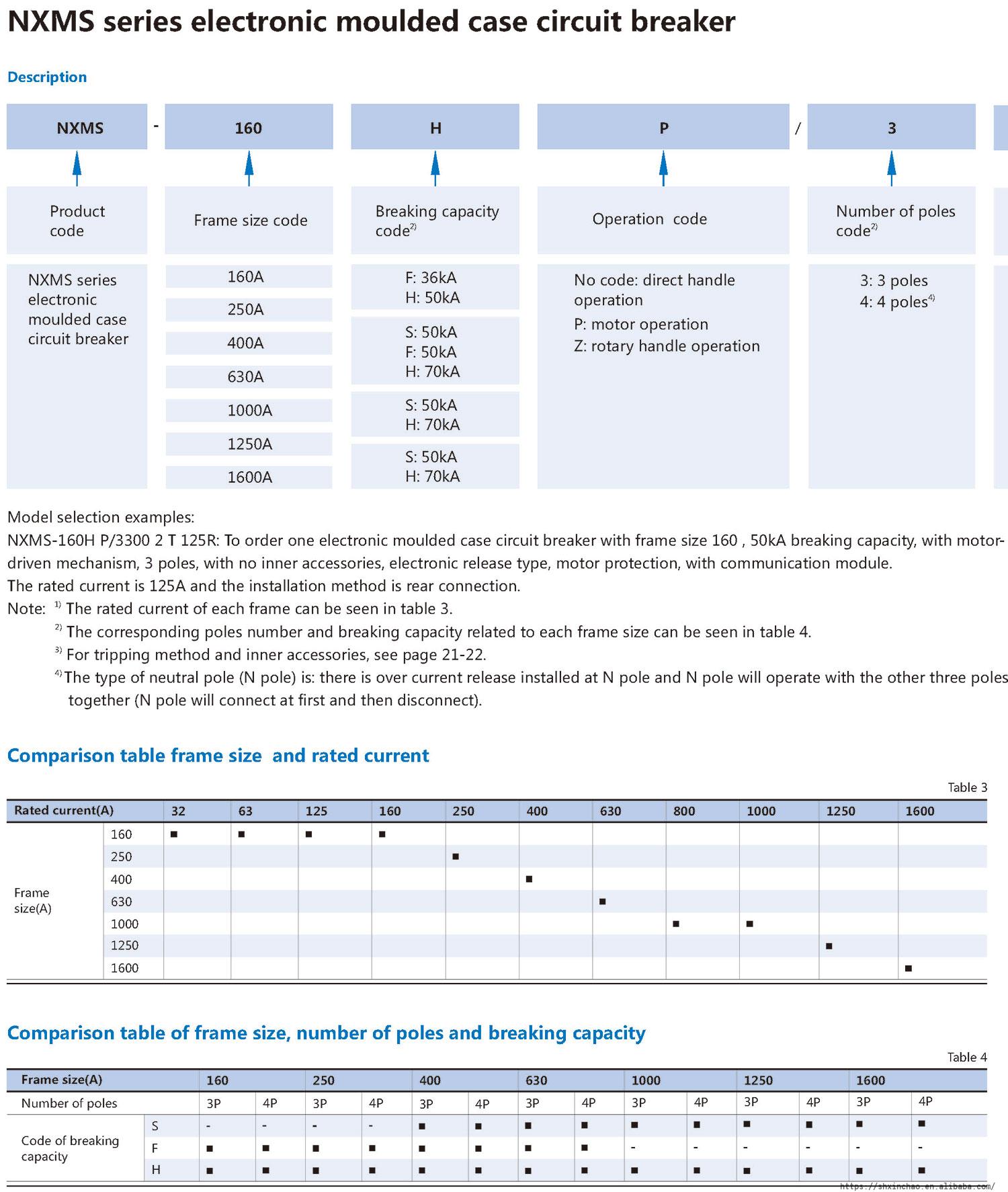

NXMS series electronic breaker: 160A, 250A, 400A, 630A, 1000A, 1250A, 1600A
Rated operational voltage: Ue : 220V/230V/240V, 380V/400V/415V, 500V , 690V
Breaking capacity code: E, S, F, H
Number of poles: 2P, 3P, 4P

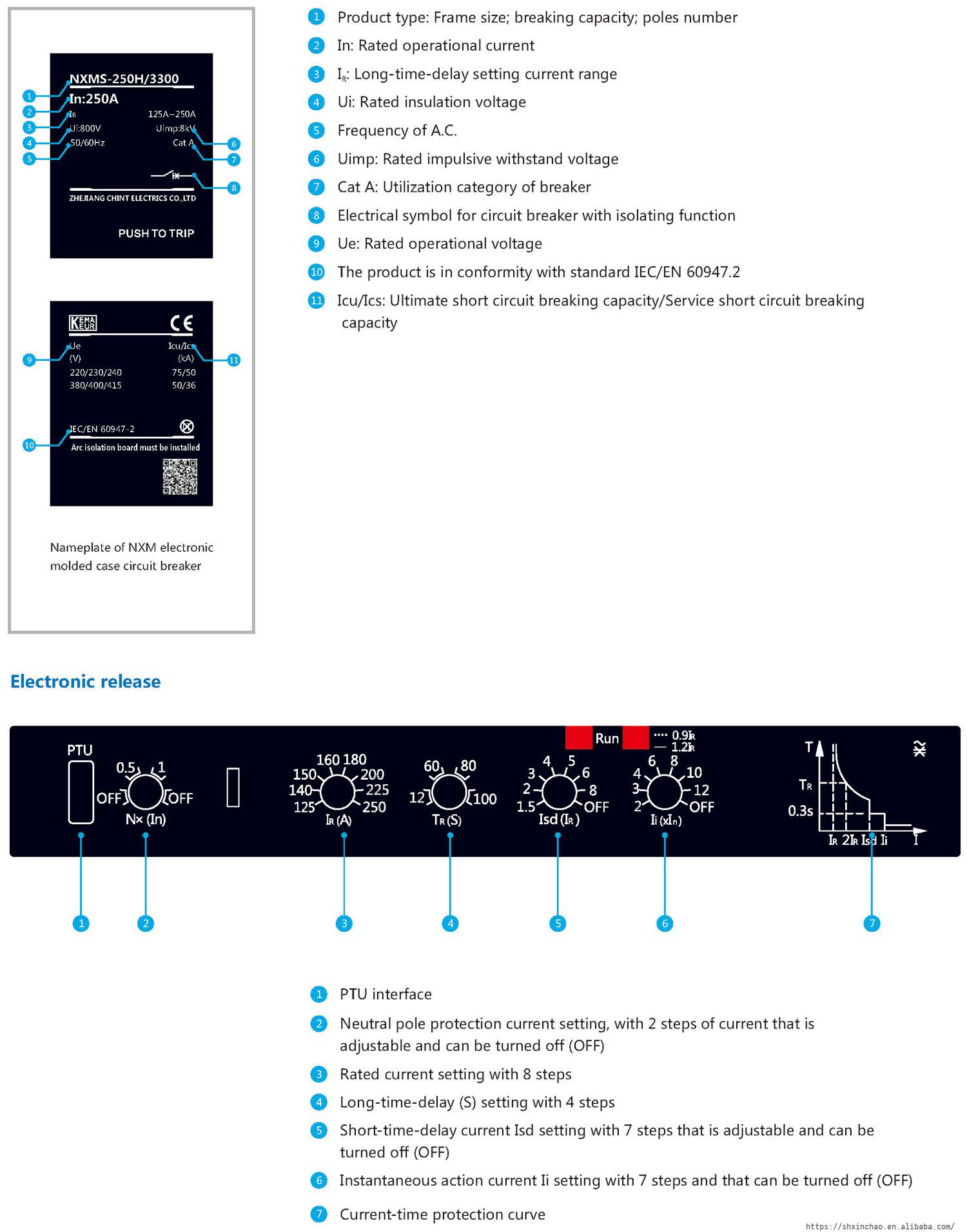

Release type:thermal magnetic fixed type; magnetic fixed type; electronic type.
Installation method: Fixed type; plug-in type
