Sensitivity

Application

Typical Use

10mA / 30mA

Personal Protection

Bathrooms, kitchens, outdoor sockets, medical locations - where human contact risk is highest

100mA

Fire Protection / Indirect Contact

General distribution circuits, sub-panels, areas with indirect contact risk

300mA

Equipment / Fire Protection

Main incoming protection, large installations, industrial equipment protection

Type

Detects

When to Use

Type AC

Pure AC only

Basic residential with standard resistive loads (heaters, incandescent lights). Most economical.

Type A (Recommended)

AC + Pulsating DC

Modern homes with electronic loads: washing machines, LED drivers, variable speed tools, computers. Recommended for new installations.

Type B

AC + All DC (incl. smooth)

Solar PV systems, EV charging, VFDs, medical equipment, DC-powered installations. Required for DC applications.

Parameter

Specification

Model Series

Chint RCCB

Device Type

RCCB/RCD (Pure Leakage Protection)

Rated Current

6A - 125A

Pole Configuration

2P / 4P

Residual Sensitivity

30mA / 100mA / 300mA

Detection Type

Type AC (pure AC)

Trip Time

≤30ms at rated residual current

Standard

IEC 61008 (RCCB) / IEC 61009 (RCBO)

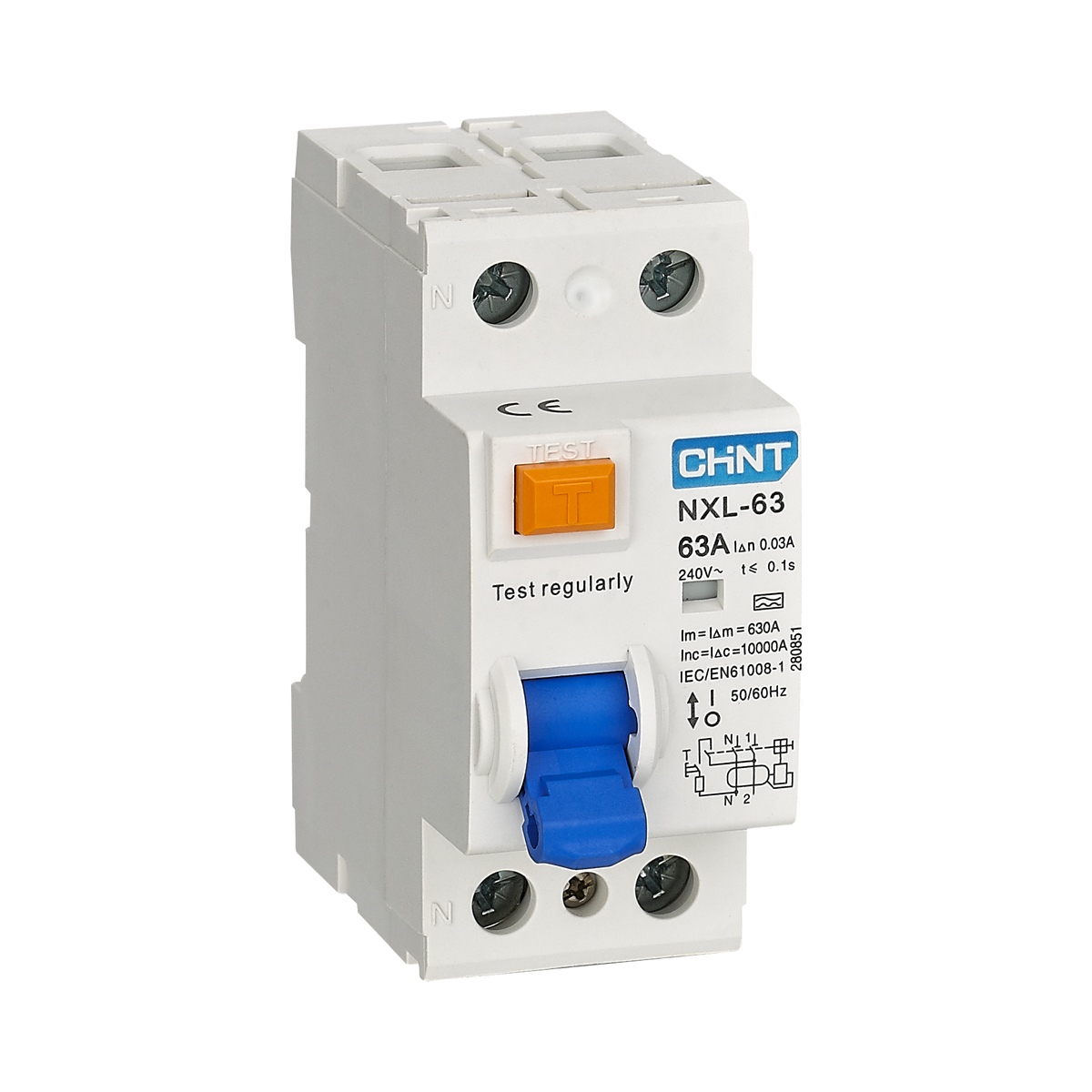

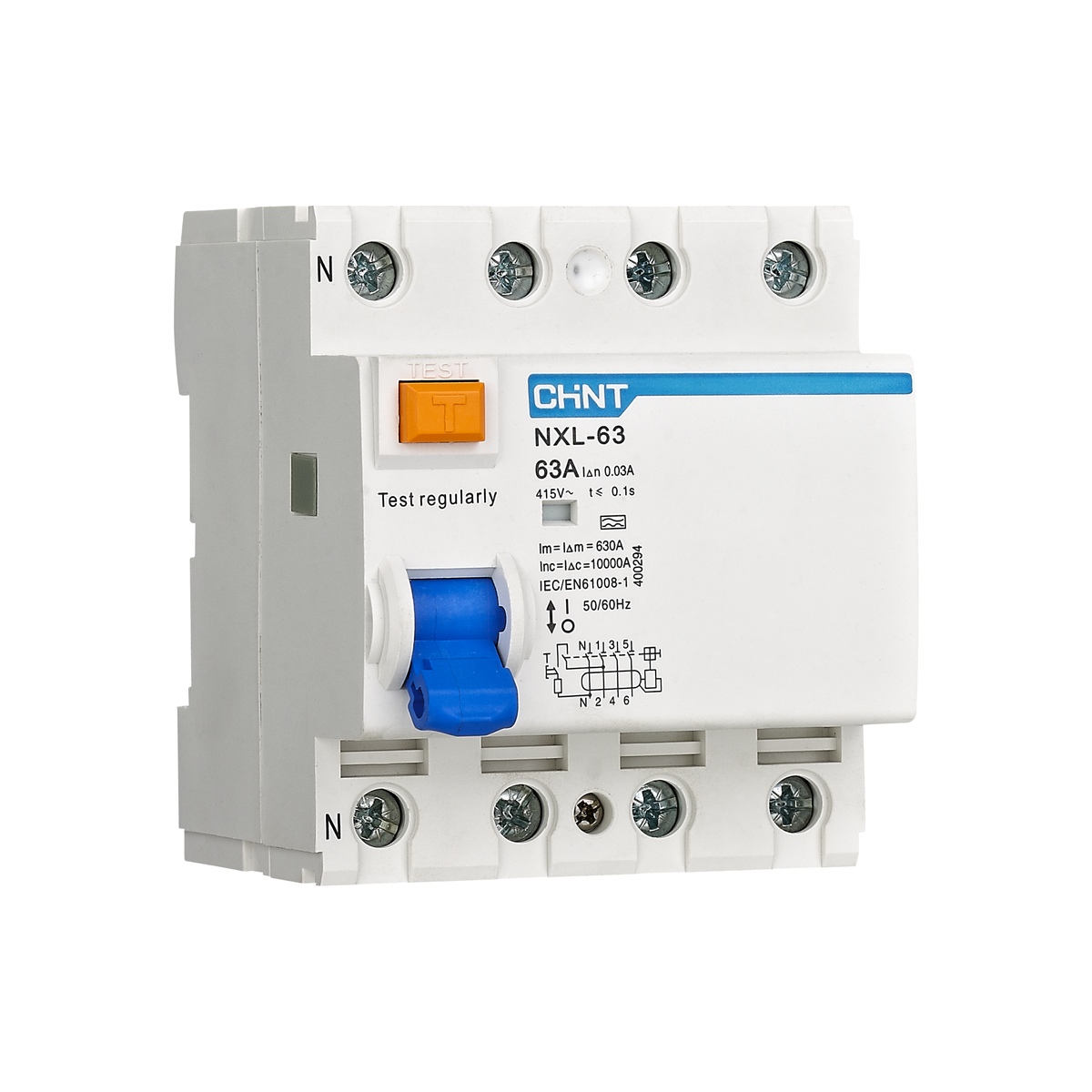

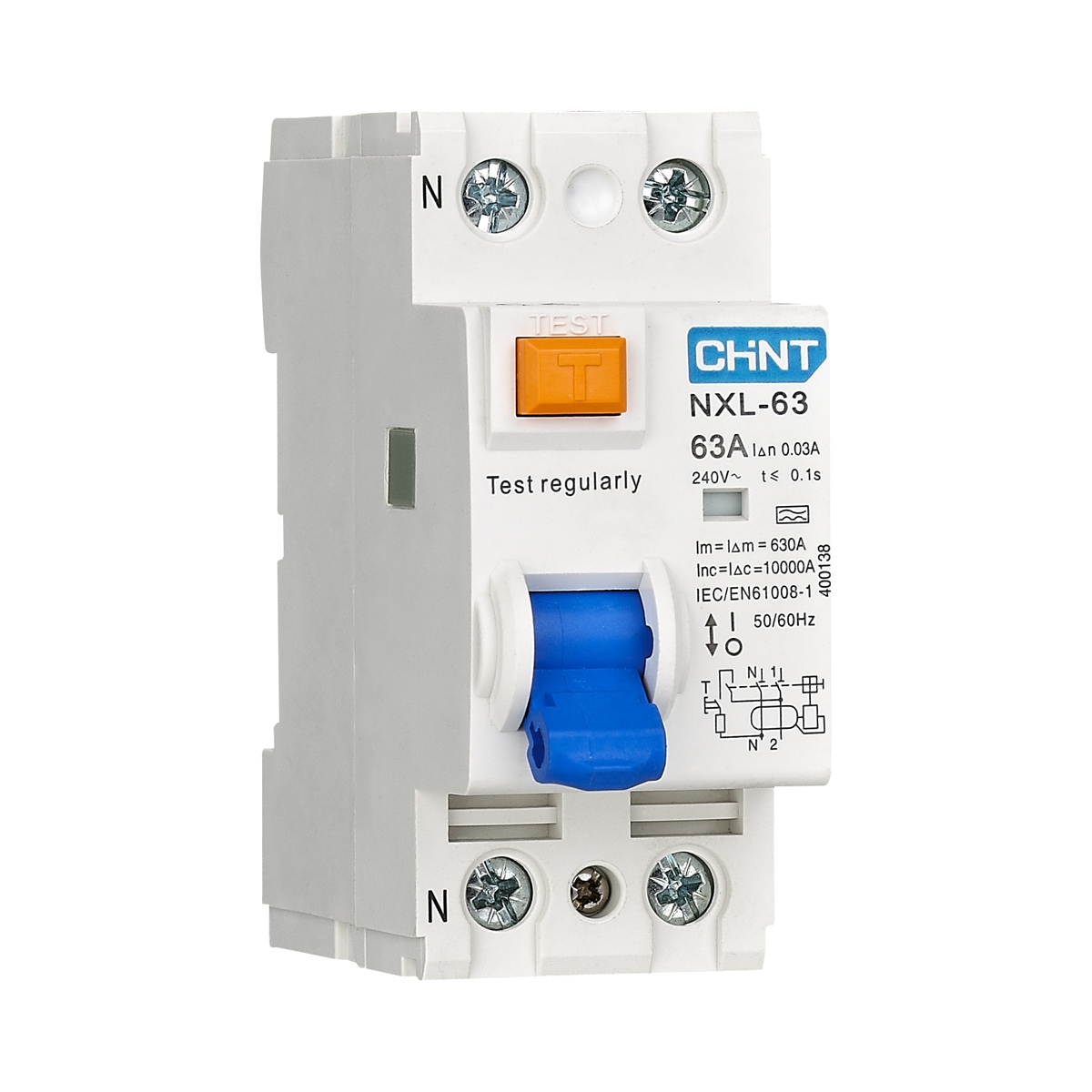

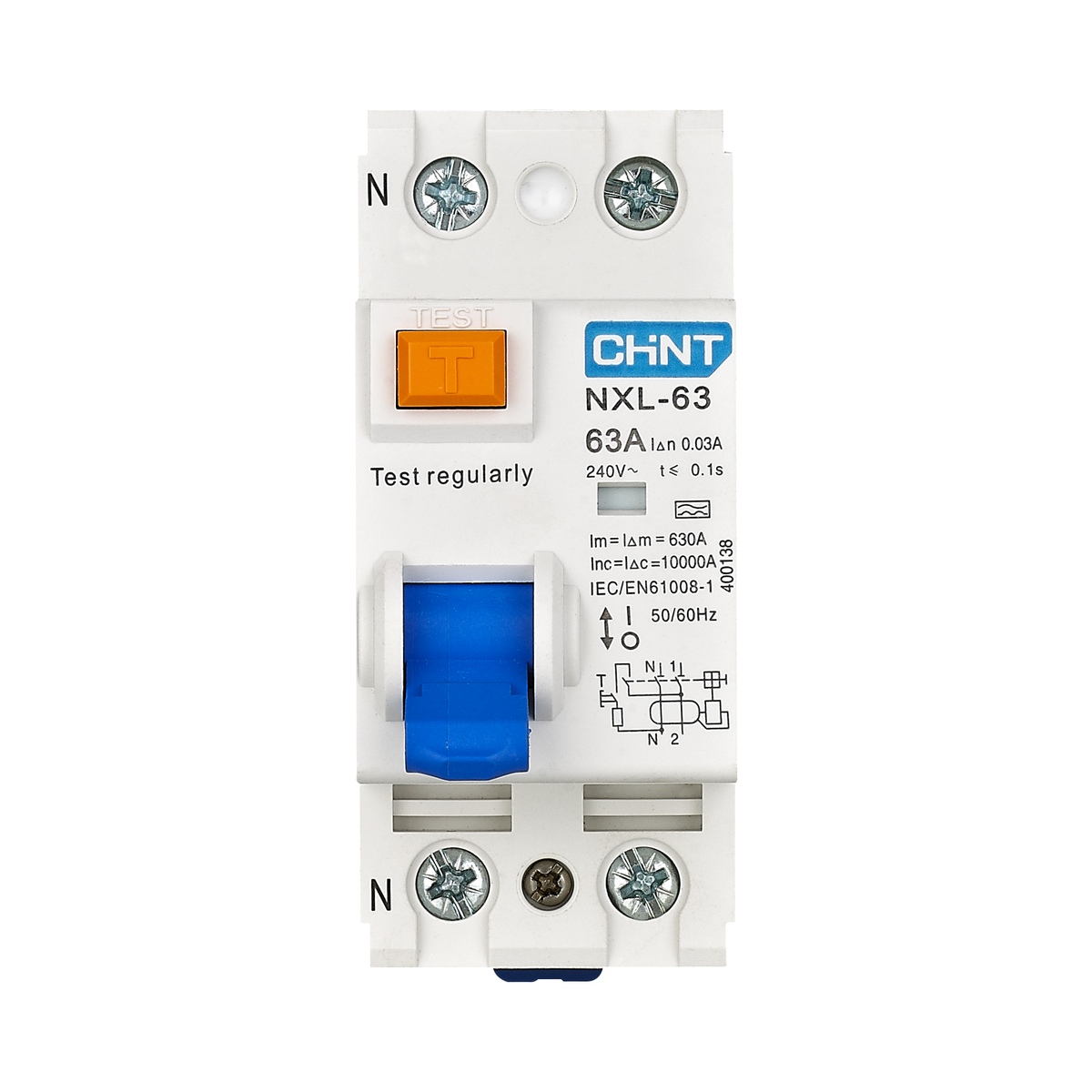

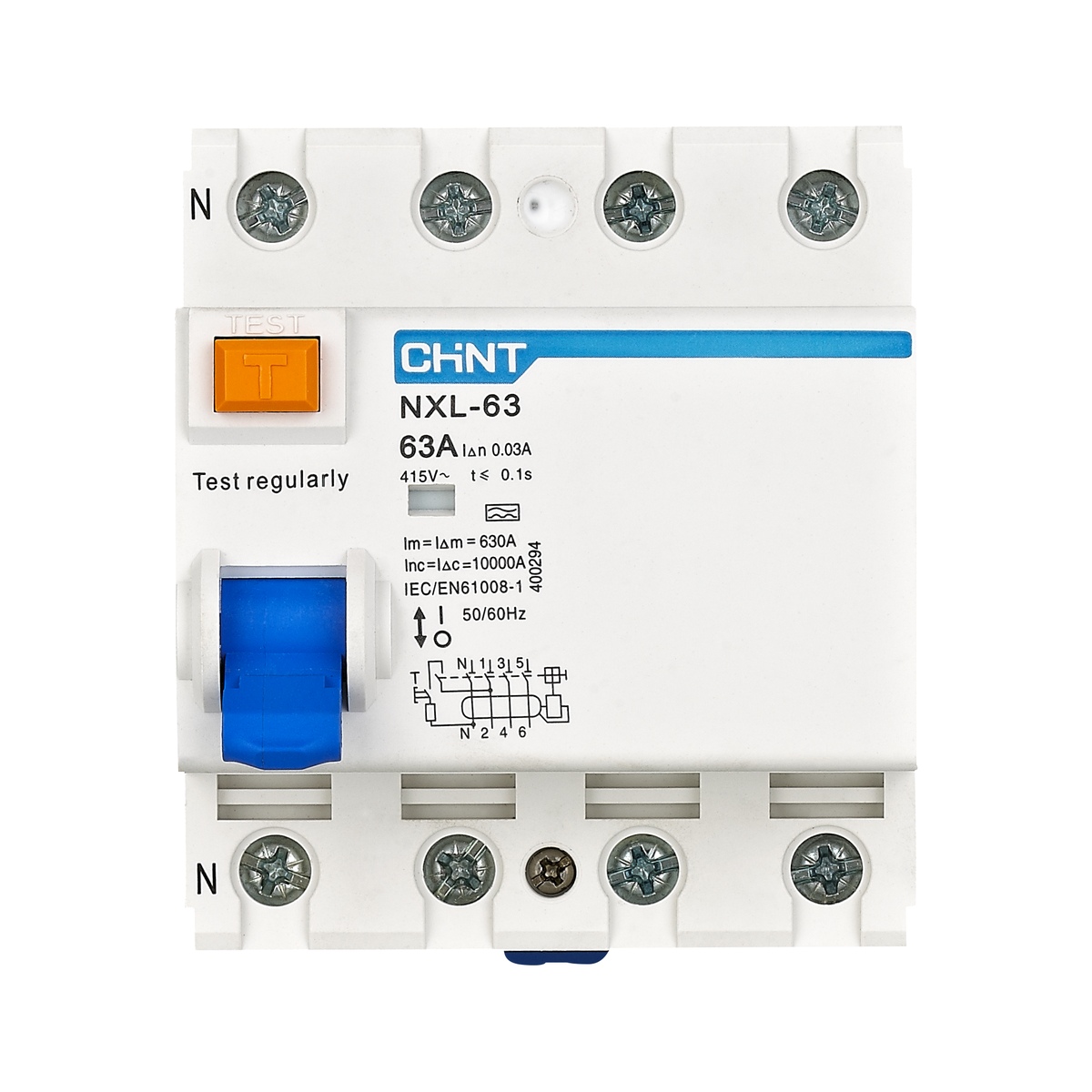

CHINT NXL-63 is an original CHINT residual current operated circuit breaker (RCBO/RCCB) designed for AC 230V/400V, 16A-63A applications. It provides reliable protection against earth leakage faults, overcurrent and short circuit conditions in low-voltage power distribution systems.

1. Product Overview

The NXL-63 RCBO/RCCB offers comprehensive protection with residual current detection and circuit breaking capabilities. It is suitable for residential, commercial and industrial electrical installations requiring protection against electric shock and fire hazards.

2. Main Features

Original CHINT NXL-63 residual current circuit breaker
Product type: Residual Current Operated Circuit Breaker
Rated voltage: AC 230V/400V, 16A-63A
Earth leakage protection
Overcurrent and short circuit protection (RCBO models)
Compact design for DIN rail mounting
Suitable for distribution boards and panel installations

3. Technical and Application Notes

Please confirm the rated current, residual current rating (30mA/100mA/300mA), breaking capacity and pole configuration before ordering. Selection should comply with local electrical regulations and installation requirements. If you need help choosing the correct CHINT RCBO/RCCB, we can assist with model matching.

4. Typical Applications

Residential electrical distribution
Commercial building panels
Industrial power distribution
Outdoor and damp location installations
Project and wholesale supply

5. Ordering Support

Send us the rated current, residual current sensitivity, breaking capacity, pole number and target market, and we can help confirm the correct CHINT RCBO/RCCB for your project.

6. Product Catalog

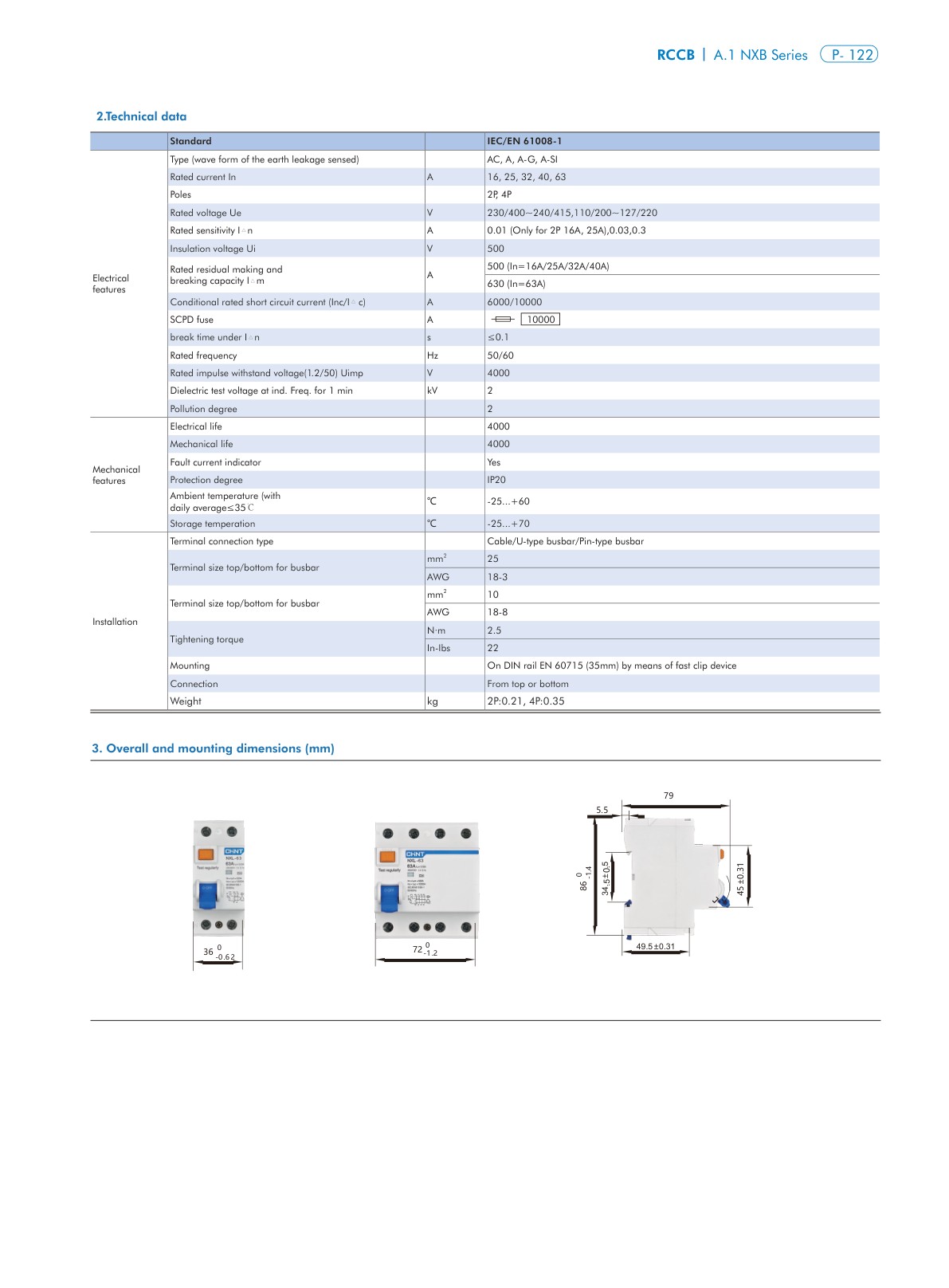

NXL-63 catalog page 1

NXL-63 catalog page 2

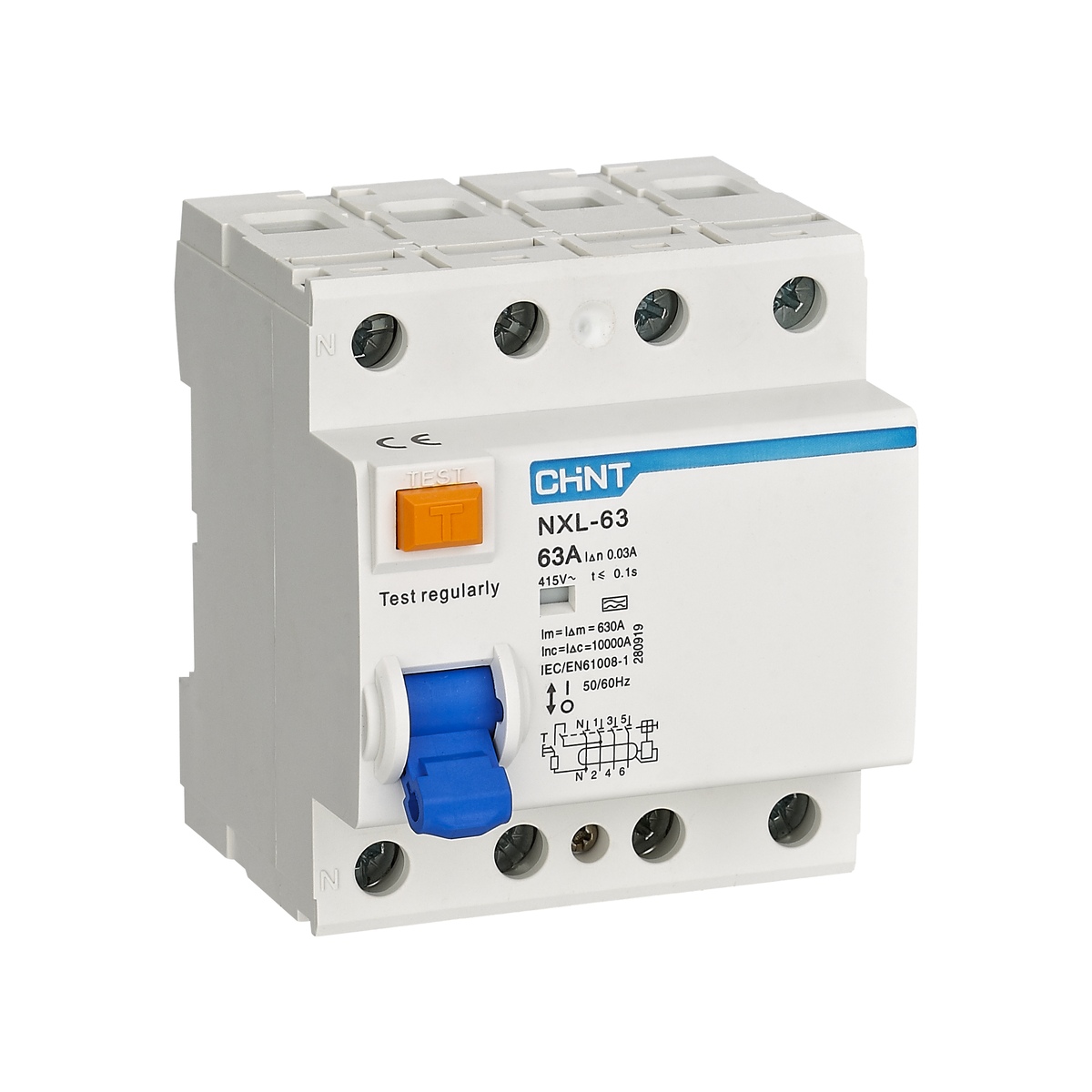

CHINT NXL-63 Residual Current Operated Circuit Breaker

Back to products

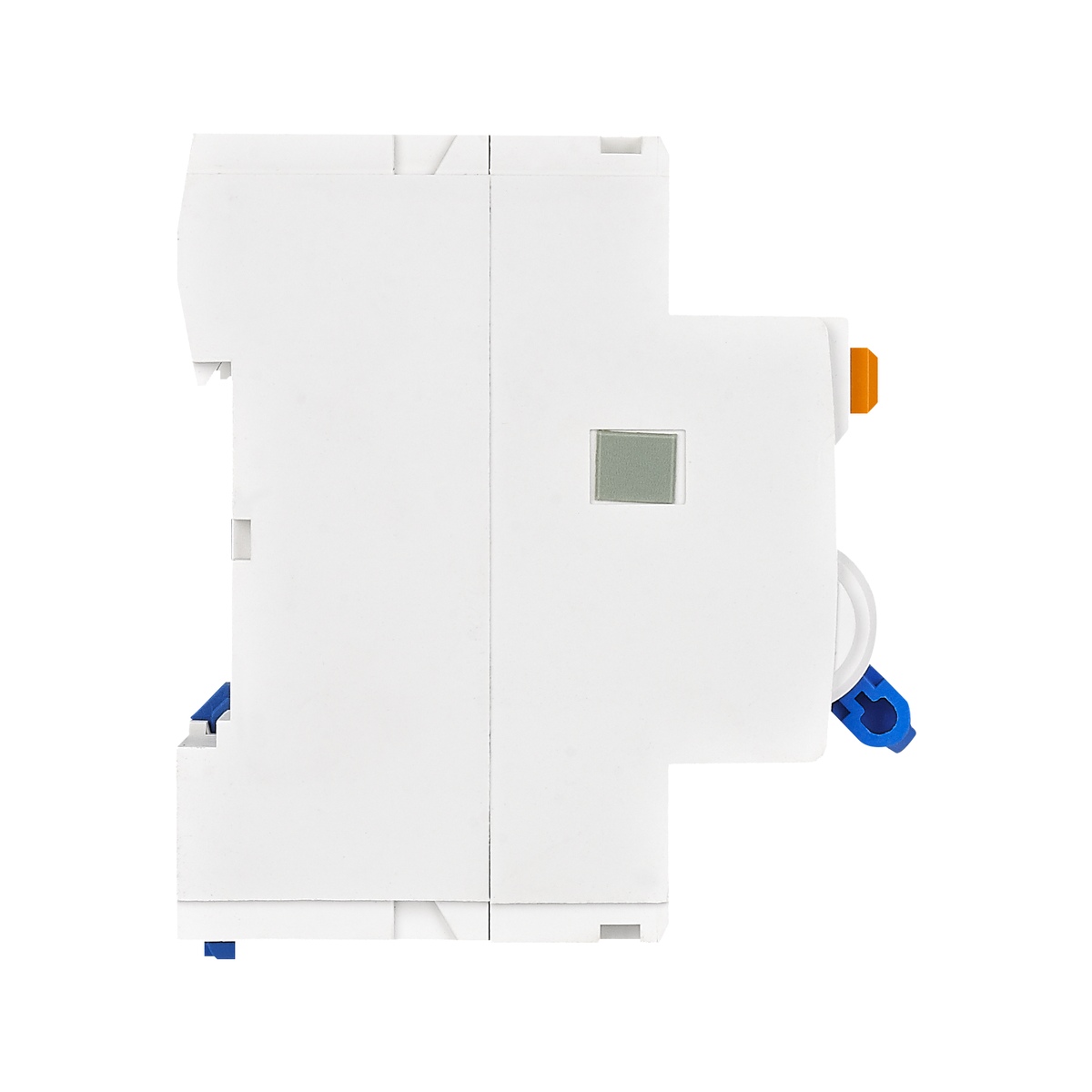

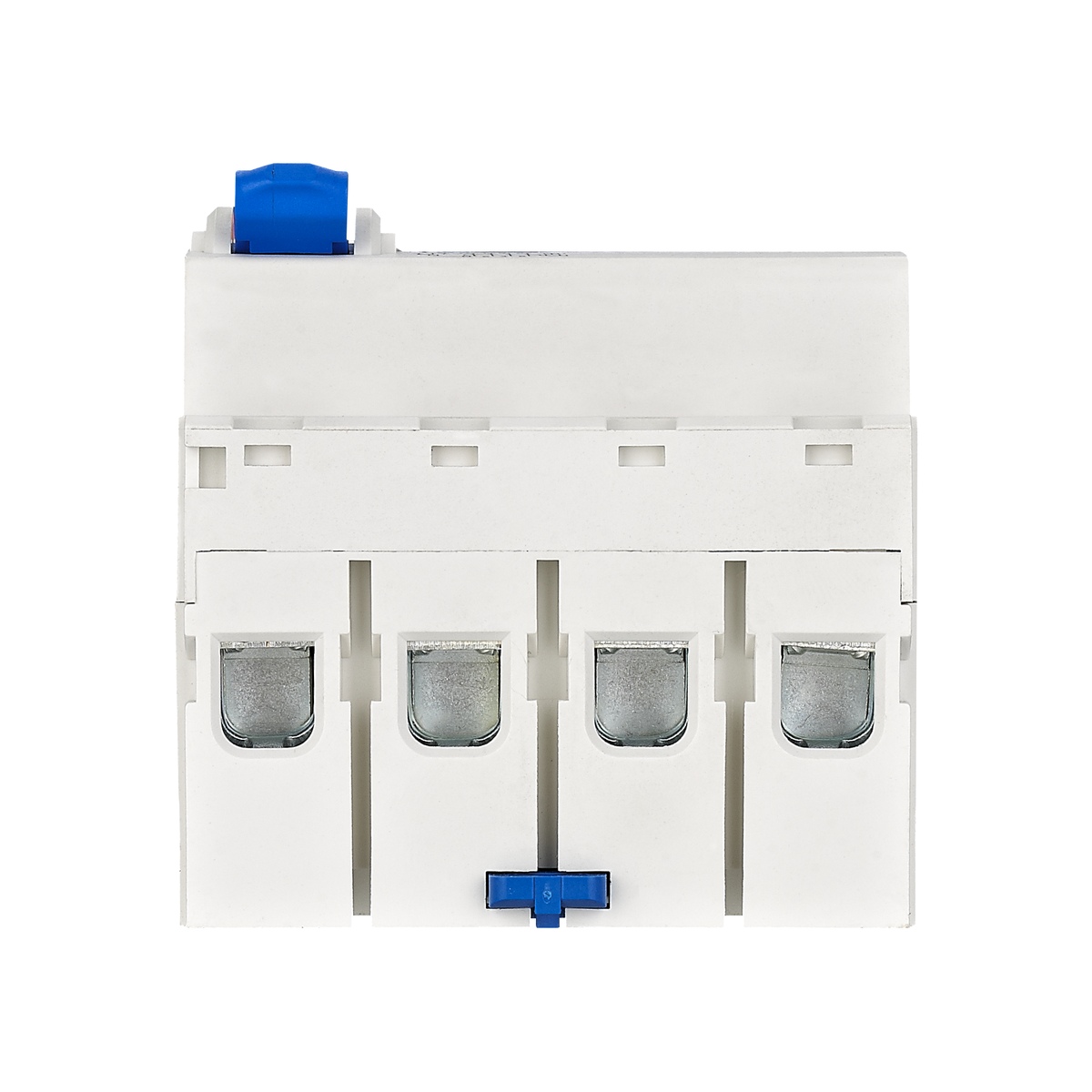

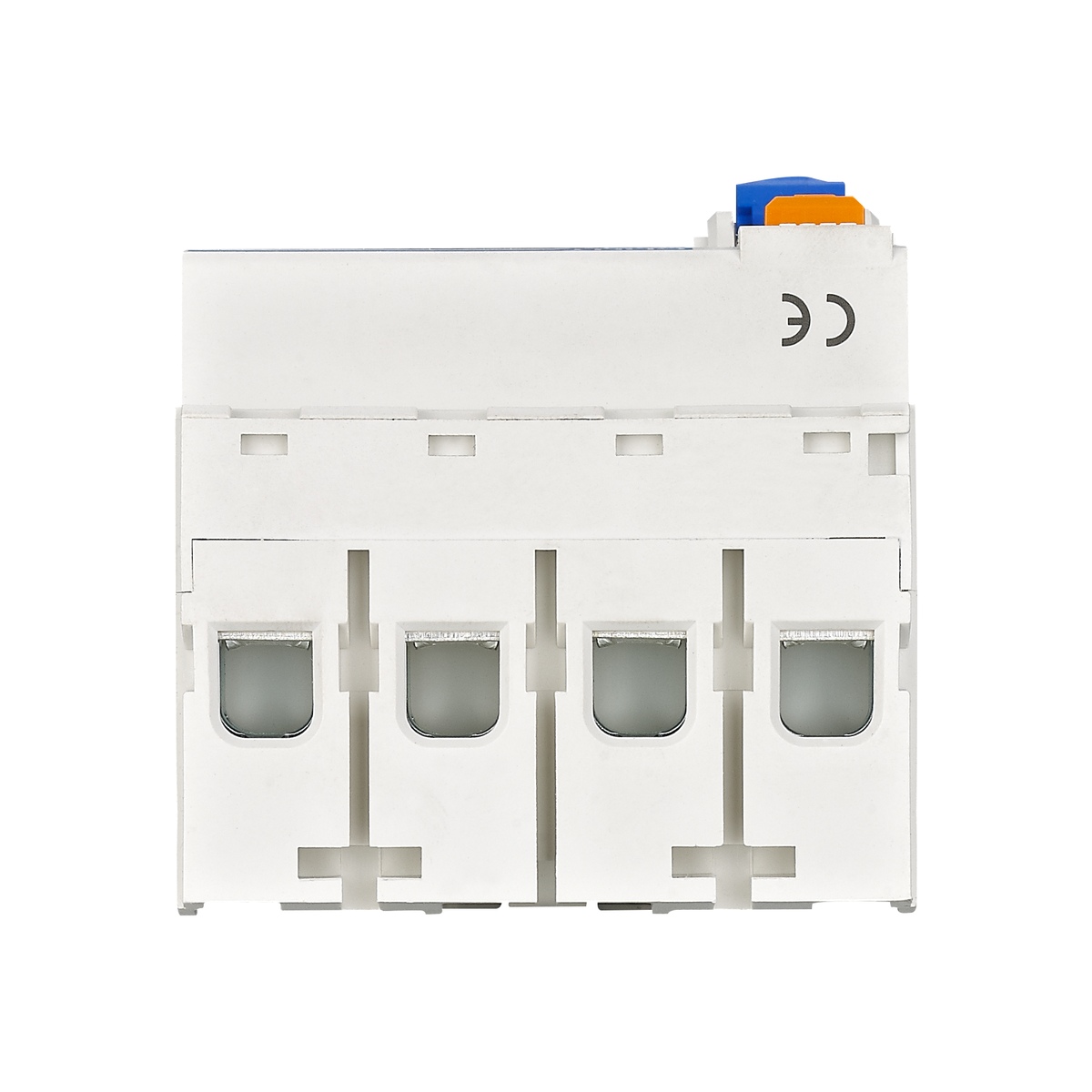

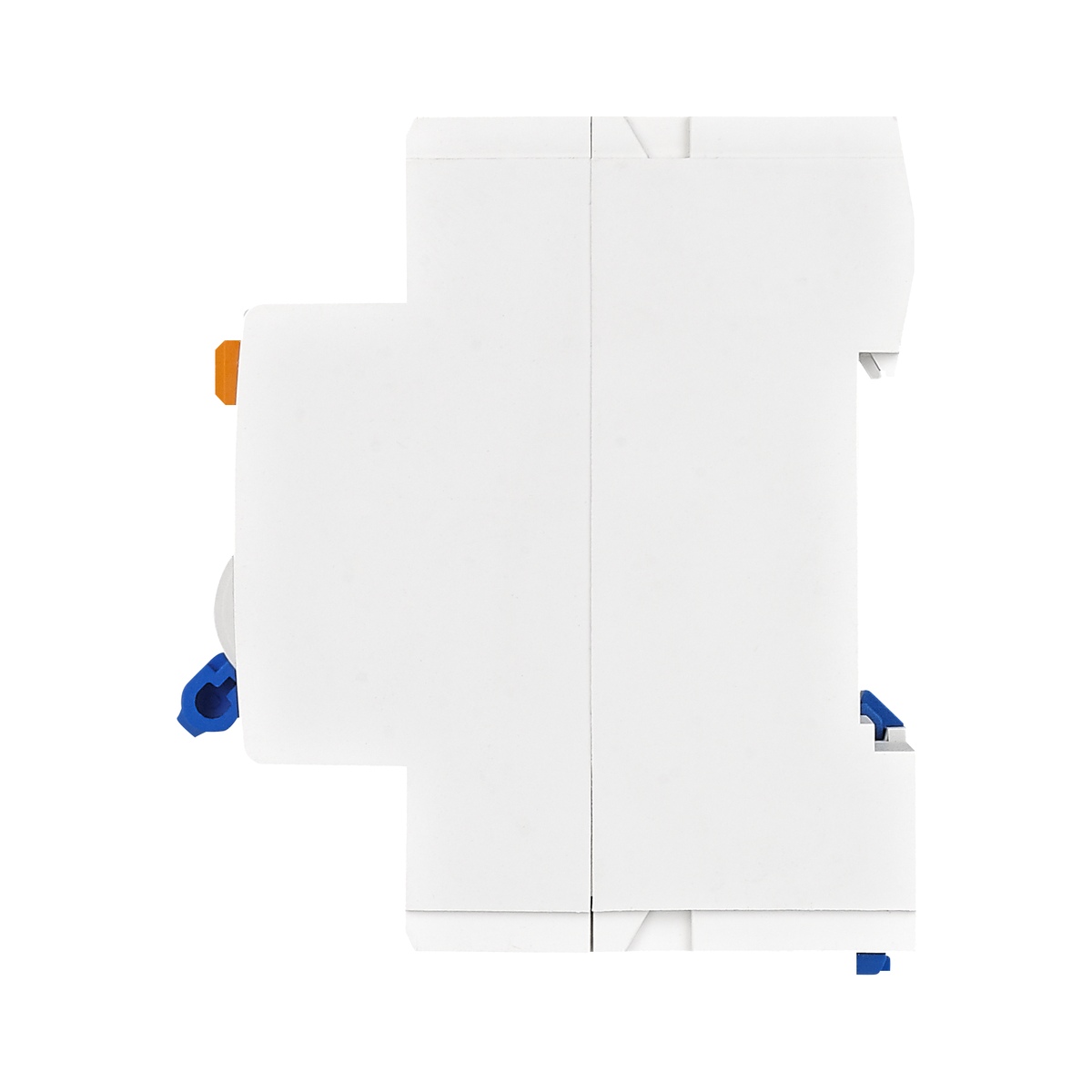

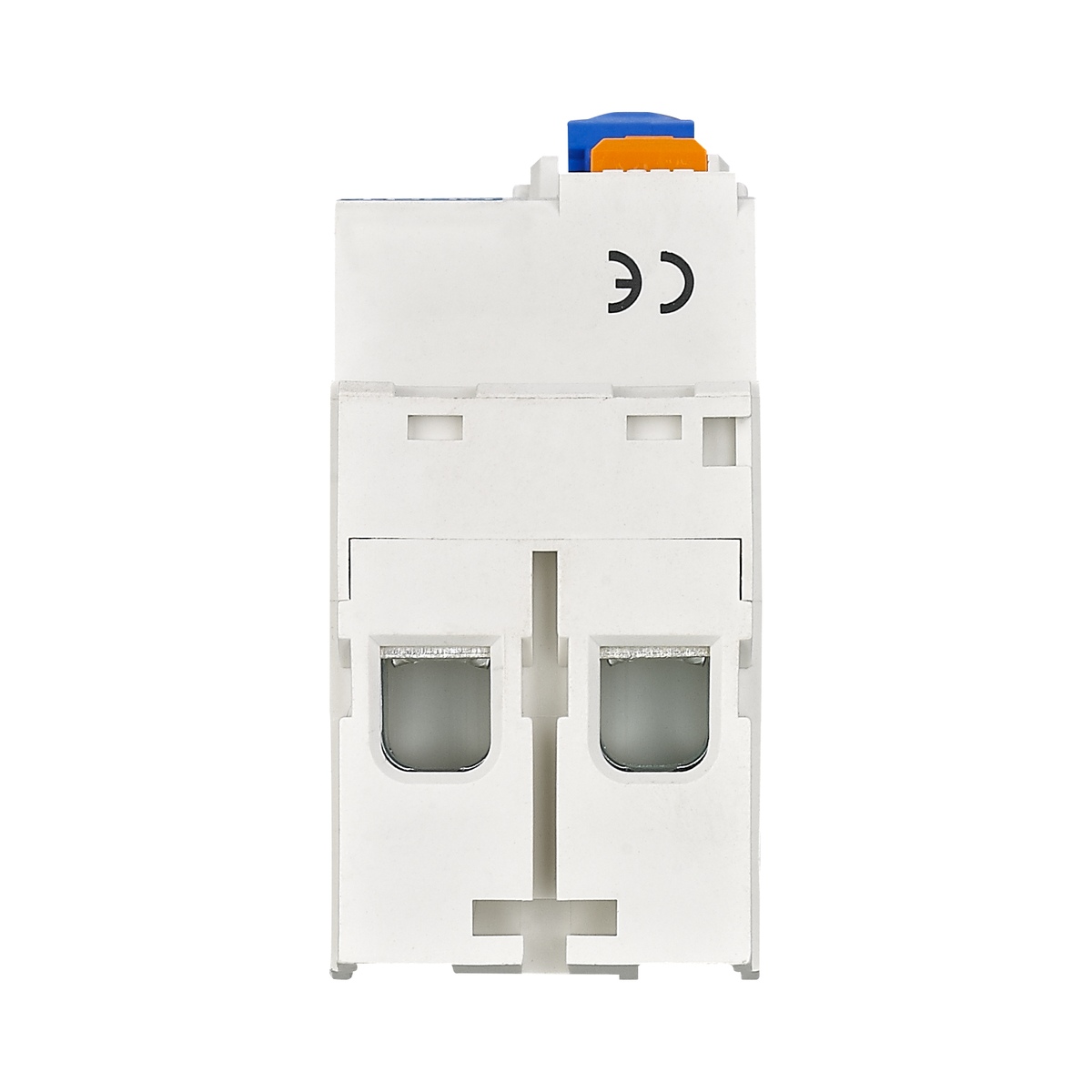

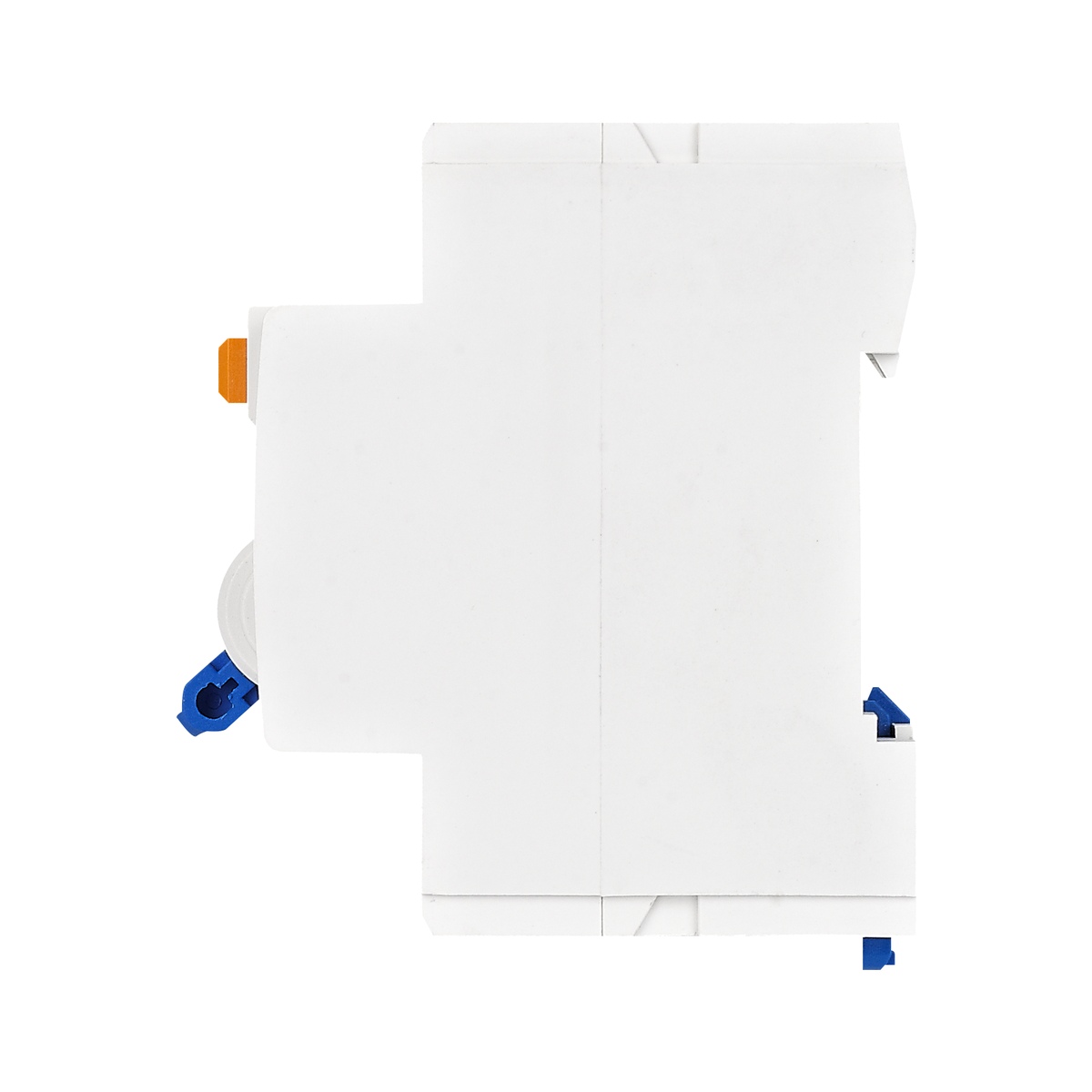

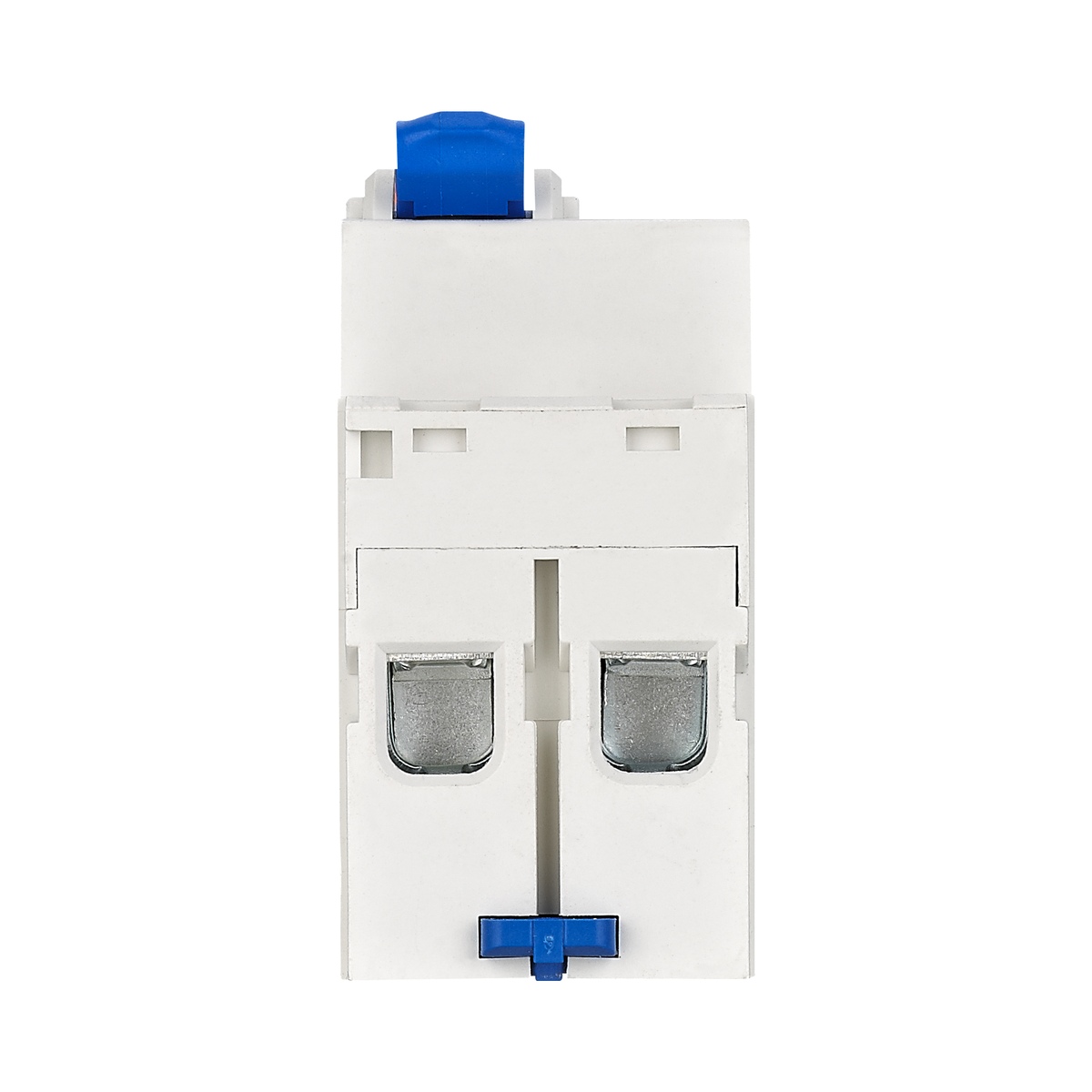

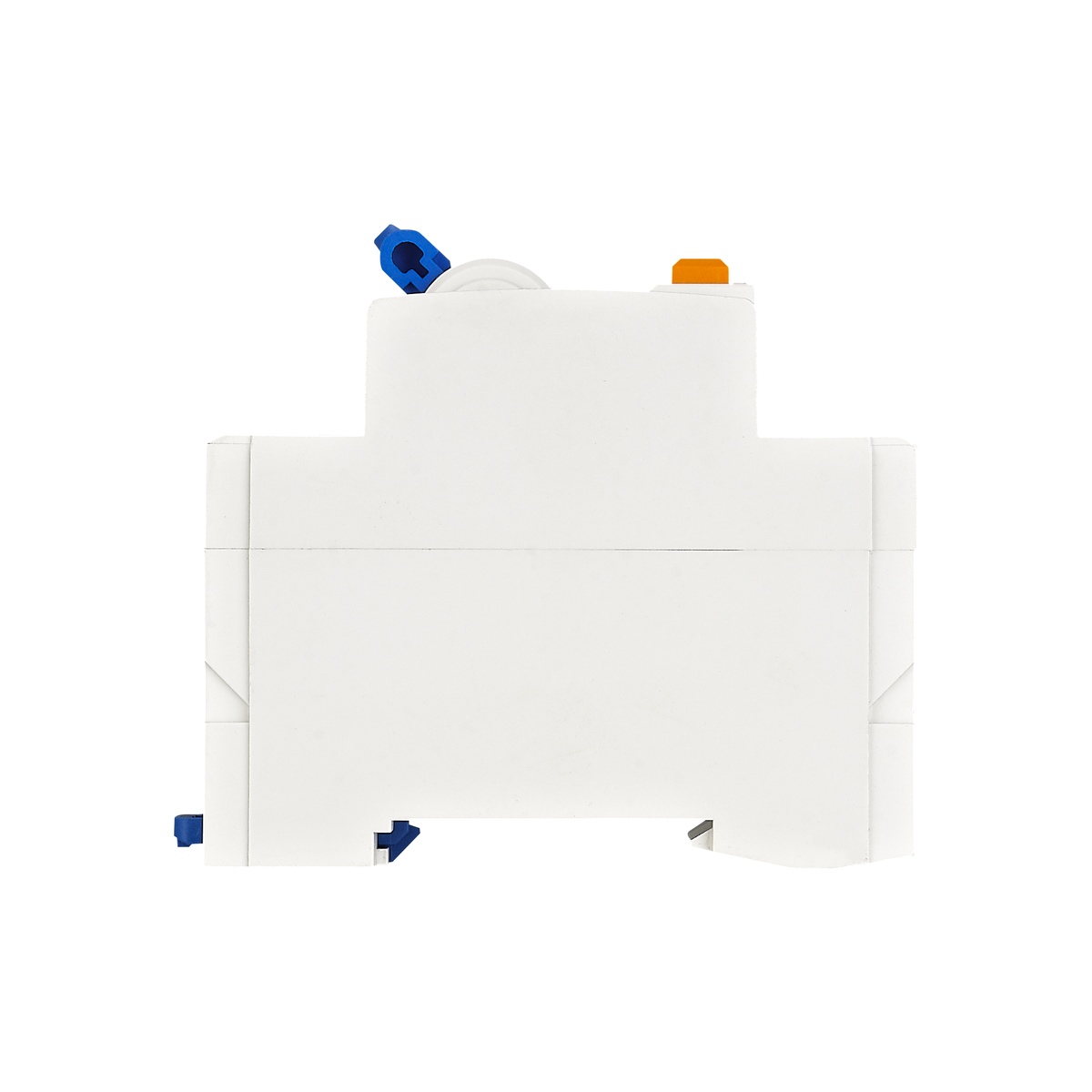

CHINT NXL-63 Residual Current Operated Circuit Breaker

Brand Name: CHINT
Product Type: Residual Current Operated Circuit Breaker

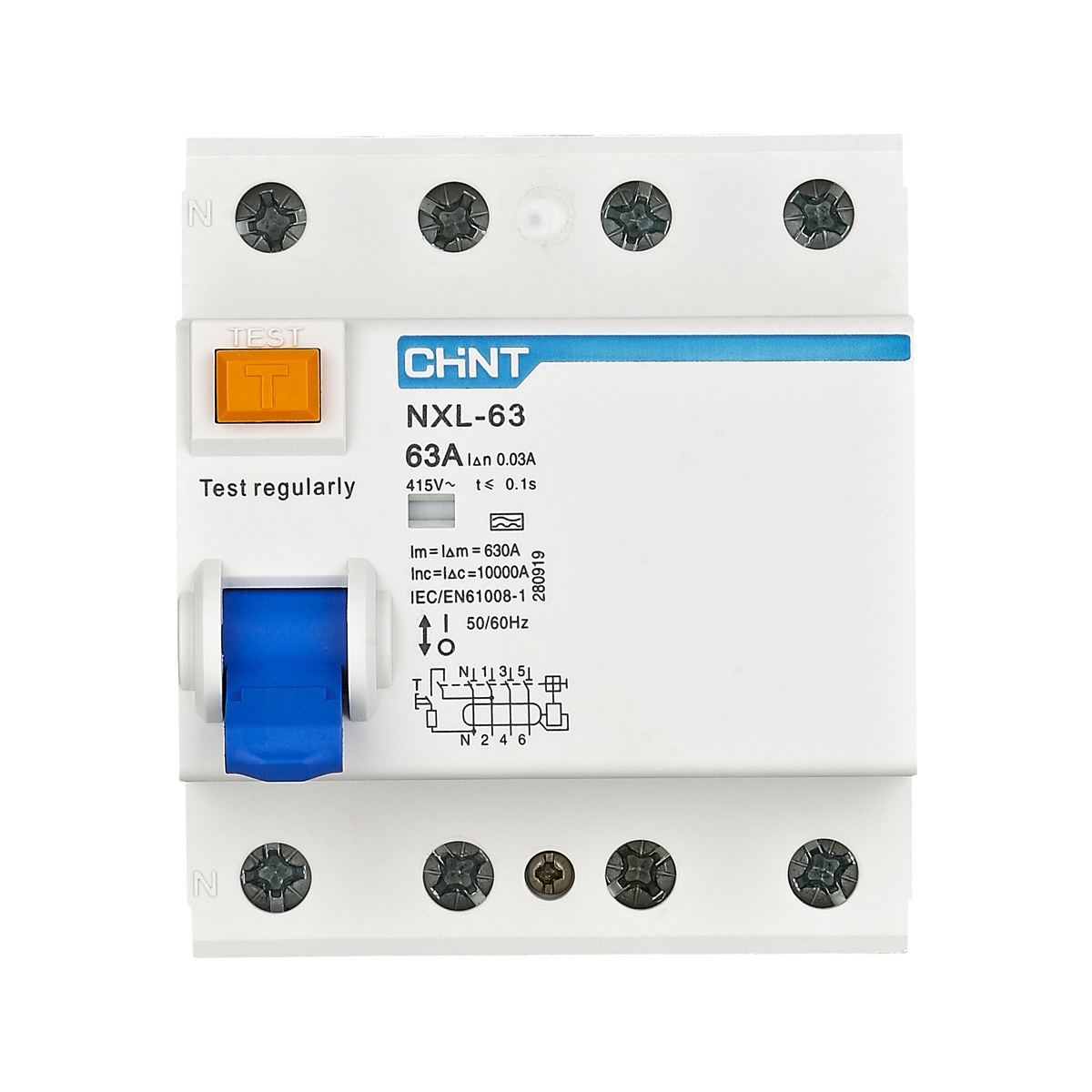

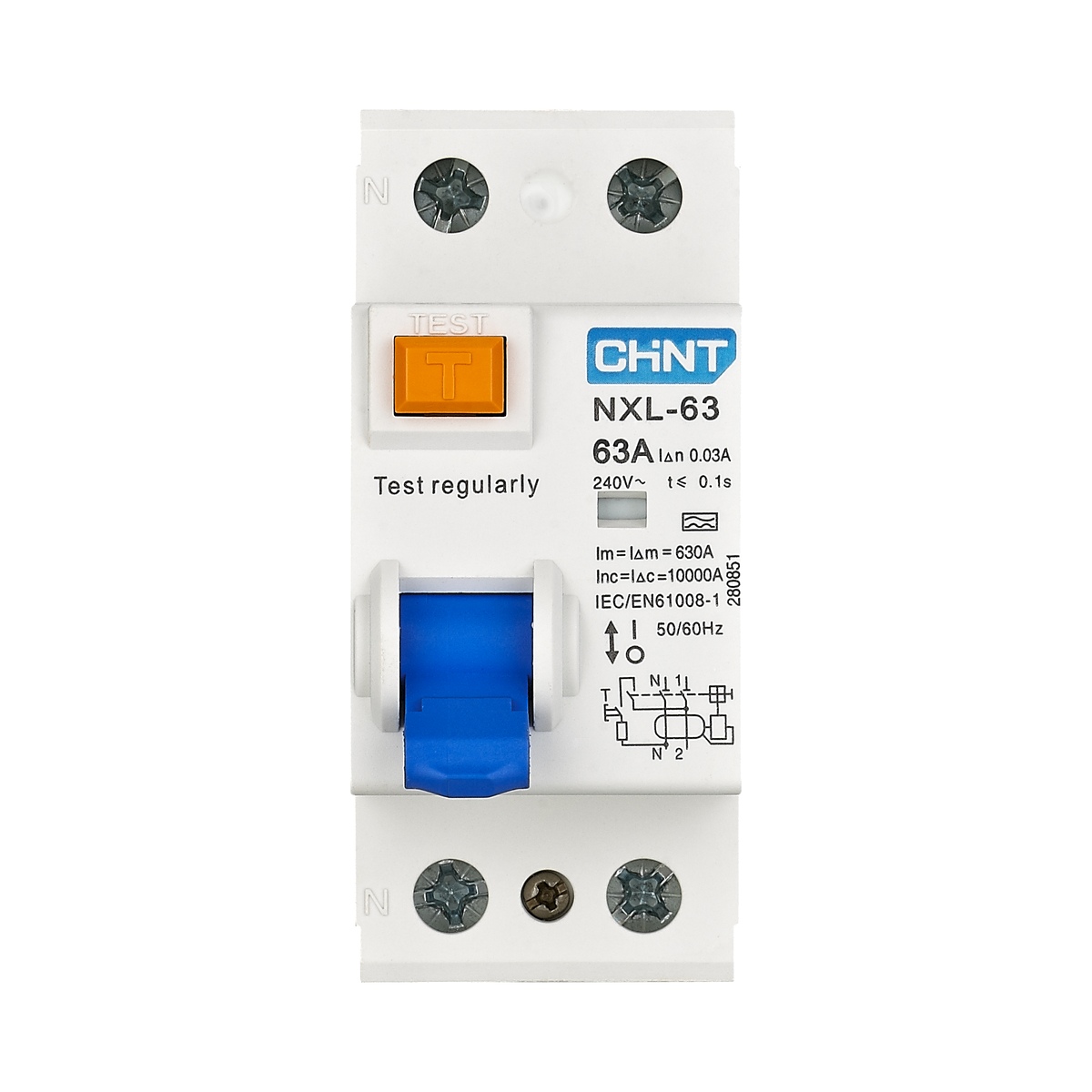

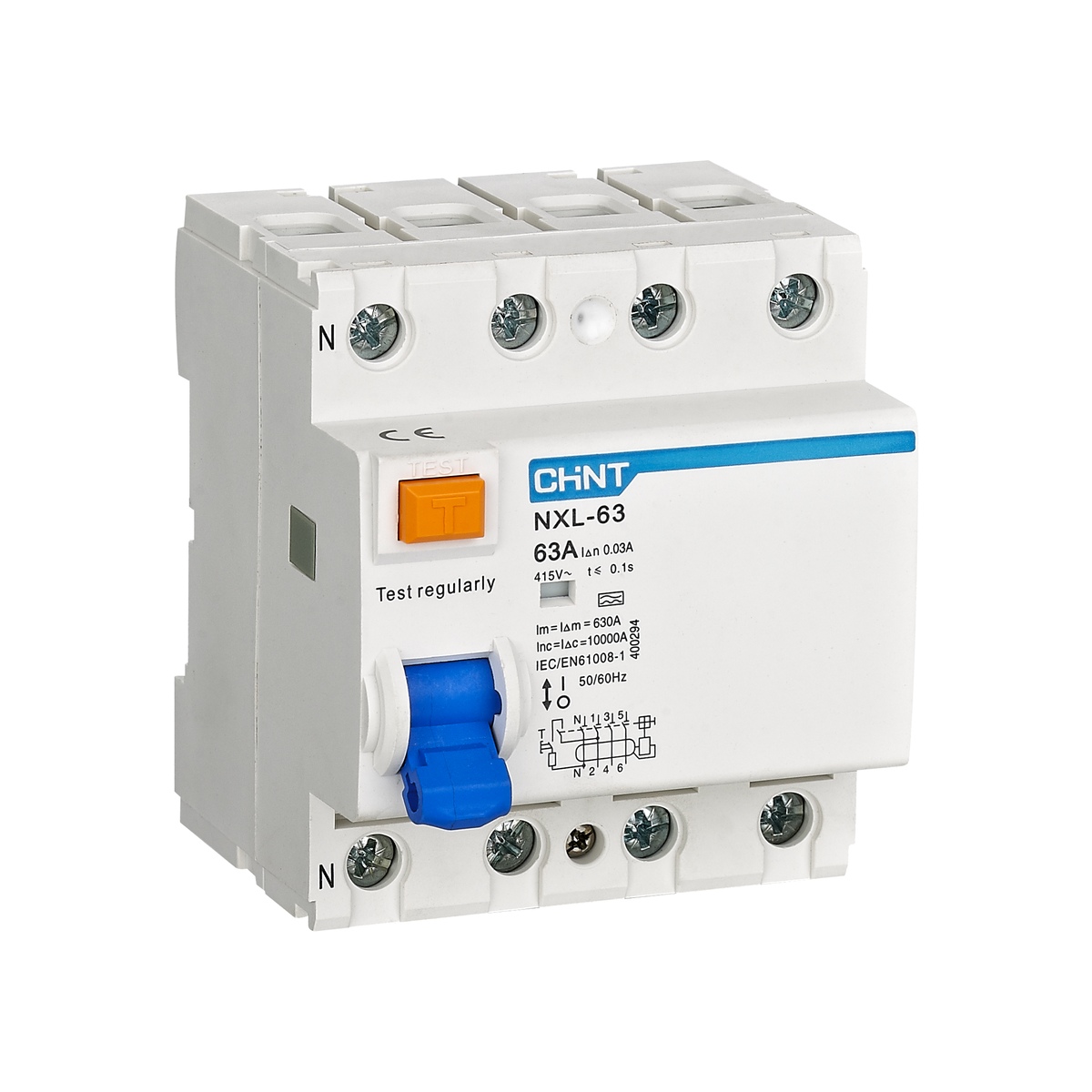

Model: NXL-63
Rated Voltage: AC 230V/400V, 16A-63A
Application: Residual current circuit breaker for low-voltage distribution panels

Category: Chint RCCB RCBO

Where to Use Chint RCCB?

The CHINT NXL-63 Residual Current Operated Circuit Breaker is a Residual Current Circuit Breaker (RCCB/RCD) designed for leakage protection and personal safety in residential electrical panels, commercial buildings, wet locations (bathrooms, kitchens), outdoor power supplies, and anywhere personal protection is critical. This RCCB provides dedicated leakage current detection with high sensitivity (30mA / 100mA / 300mA), automatically disconnecting power when dangerous leakage currents are detected, preventing electric shock hazards.

Why Choose Chint RCCB Series?

Personal Safety Protection - Detects dangerous leakage currents before they cause electric shock
Type AC (pure AC) - Standard AC detection (cost-effective for basic residential applications)
High Sensitivity Options - 30mA / 100mA / 300mA trip settings for different protection levels
Fast Response Time - Trips within 30ms when leakage is detected, well below dangerous exposure times
IEC 61008/61009 Certified - Complies with international residual current device standards
Chint Original Quality - CE, SAA, CCC approved with 2-year warranty

Sensitivity (Trip Current) Selection Guide

Choose the right sensitivity level for your application:

Sensitivity	Application	Typical Use
10mA / 30mA	Personal Protection	Bathrooms, kitchens, outdoor sockets, medical locations - where human contact risk is highest
100mA	Fire Protection / Indirect Contact	General distribution circuits, sub-panels, areas with indirect contact risk
300mA	Equipment / Fire Protection	Main incoming protection, large installations, industrial equipment protection

Type AC vs Type A vs Type B - Which One?

Type	Detects	When to Use
Type AC	Pure AC only	Basic residential with standard resistive loads (heaters, incandescent lights). Most economical.
Type A (Recommended)	AC + Pulsating DC	Modern homes with electronic loads: washing machines, LED drivers, variable speed tools, computers. Recommended for new installations.
Type B	AC + All DC (incl. smooth)	Solar PV systems, EV charging, VFDs, medical equipment, DC-powered installations. Required for DC applications.

Technical Specifications

Parameter	Specification
Model Series	Chint RCCB
Device Type	RCCB/RCD (Pure Leakage Protection)
Rated Current	6A - 125A
Pole Configuration	2P / 4P
Residual Sensitivity	30mA / 100mA / 300mA
Detection Type	Type AC (pure AC)
Trip Time	≤30ms at rated residual current
Standard	IEC 61008 (RCCB) / IEC 61009 (RCBO)

Frequently Asked Questions

Q: What is the difference between RCCB and RCBO?

A: RCCB (Residual Current Circuit Breaker) provides only leakage protection - it detects earth faults and disconnects power but doesn't protect against overloads or short circuits. RCBO (Residual Current Breaker with Overcurrent protection) combines RCD + MCB in one device - it protects against leakage AND overcurrent/overload/short-circuit. RCBO saves space in distribution boards and provides complete protection.

Q: 30mA vs 300mA - which sensitivity should I choose?

A: 30mA (or 10mA) is required for personal protection in locations with high shock risk (bathrooms, kitchens, outdoor power, medical facilities). This level protects humans from fatal electric shock. 300mA is used for equipment and fire protection on main incoming circuits - it prevents fires from insulation faults but won't protect against direct contact. Never use 300mA for socket outlet circuits where people may touch appliances.

Q: Do I need Type A or is Type AC sufficient?

A: For new installations, always choose Type A. Modern appliances (washing machines, LED lights, computers, variable speed tools) generate pulsating DC leakage currents that Type AC cannot detect. Type A provides better safety and is now required by updated electrical codes in many countries. Type AC is only suitable for basic installations with purely resistive loads (heaters, incandescent bulbs) and should be considered legacy technology.

Need Help Selecting RCCB/RCBO? Our electrical engineers can advise on the right sensitivity, type, and rating for your installation. Contact us at sales@sntelec.com or WhatsApp +86-18019187010.
