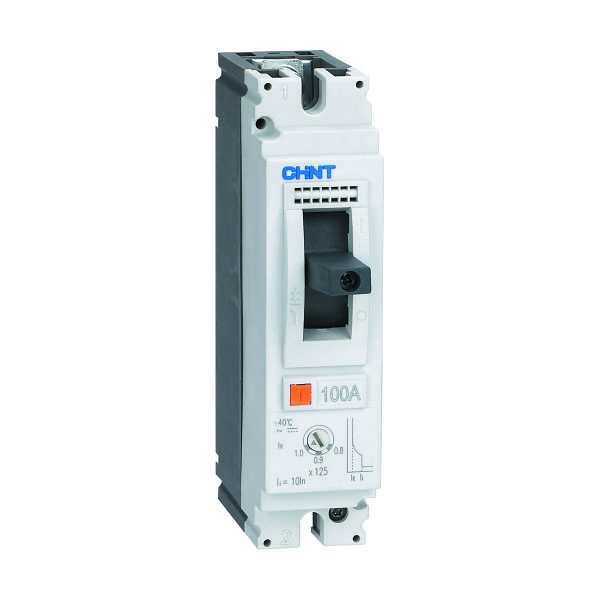

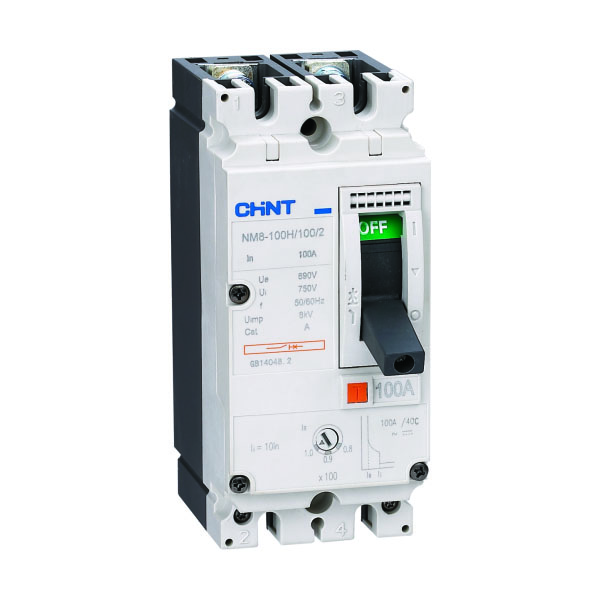

Chint NM8 NM8S MCCB NM8-250S NM8-400S NM8-630S NM8S-630S NM8-800S NM8S-800S NM8S-1250S CHNT Chint Moulded Case Circuit Breaker

Brand Name:Chint
Place of Origin:China
Model Number:NM8, NM8S
Breaking Capacity:10kA – 100kA
Rated Voltage:690V
Type:Moulded Case
SKU: 62022759875 Category:
Description

Chint NM8 NM8S MCCB NM8-250S NM8-400S NM8-630S NM8S-630S NM8-800S NM8S-800S NM8S-1250S CHNT Chint Moulded Case Circuit Breaker





– Chint NM8 Thermal Magnetic type

– Chint NM8S Electronic type



Application:



Certificates: CE, DNV, KEMA, UKrSEPRO, EAC, RCC;

Electric ratings: AC50/60Hz, AC220V~690  16A~1600A;

Standard: IEC/EN 60947-2.

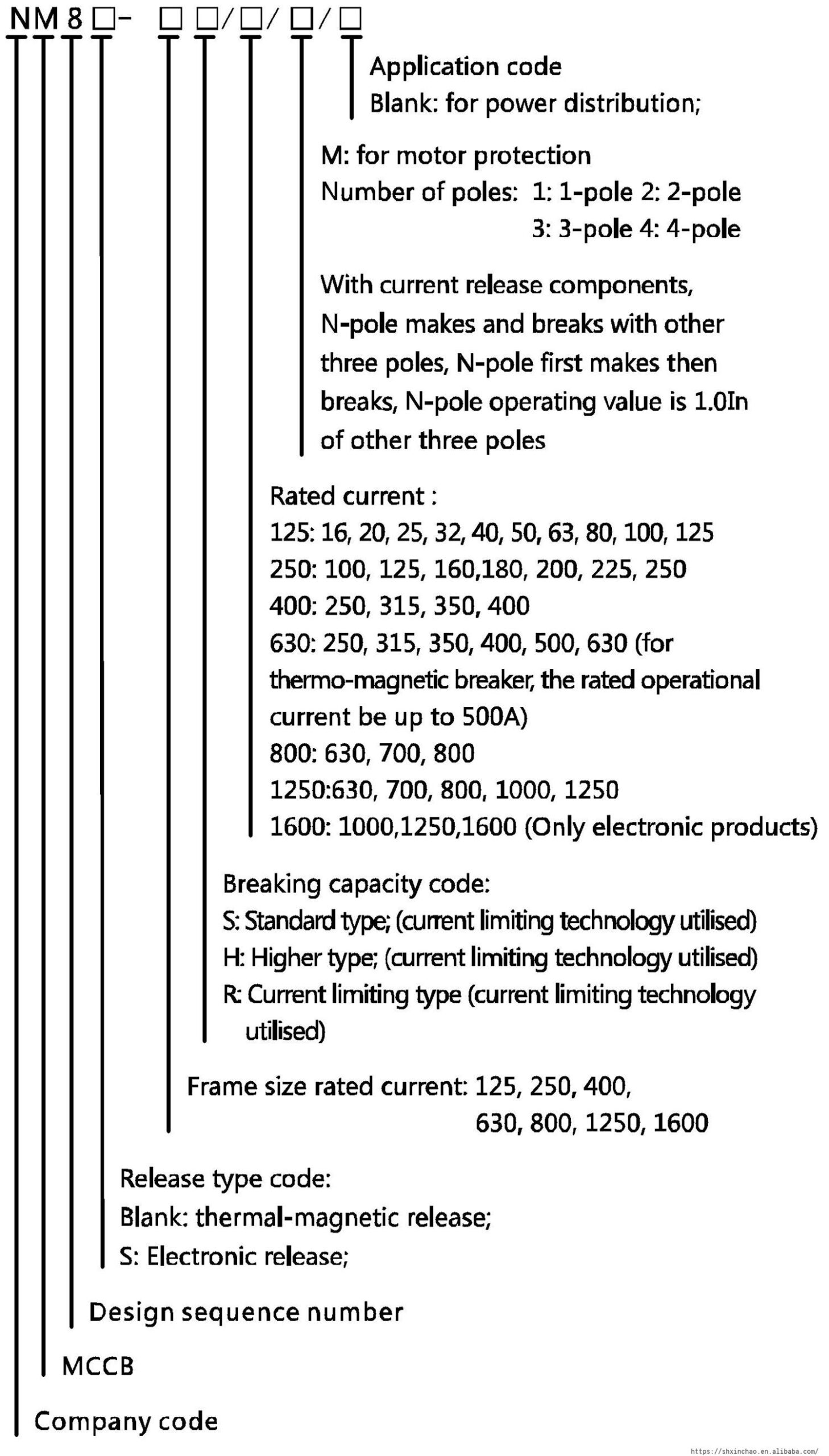

Type Designation

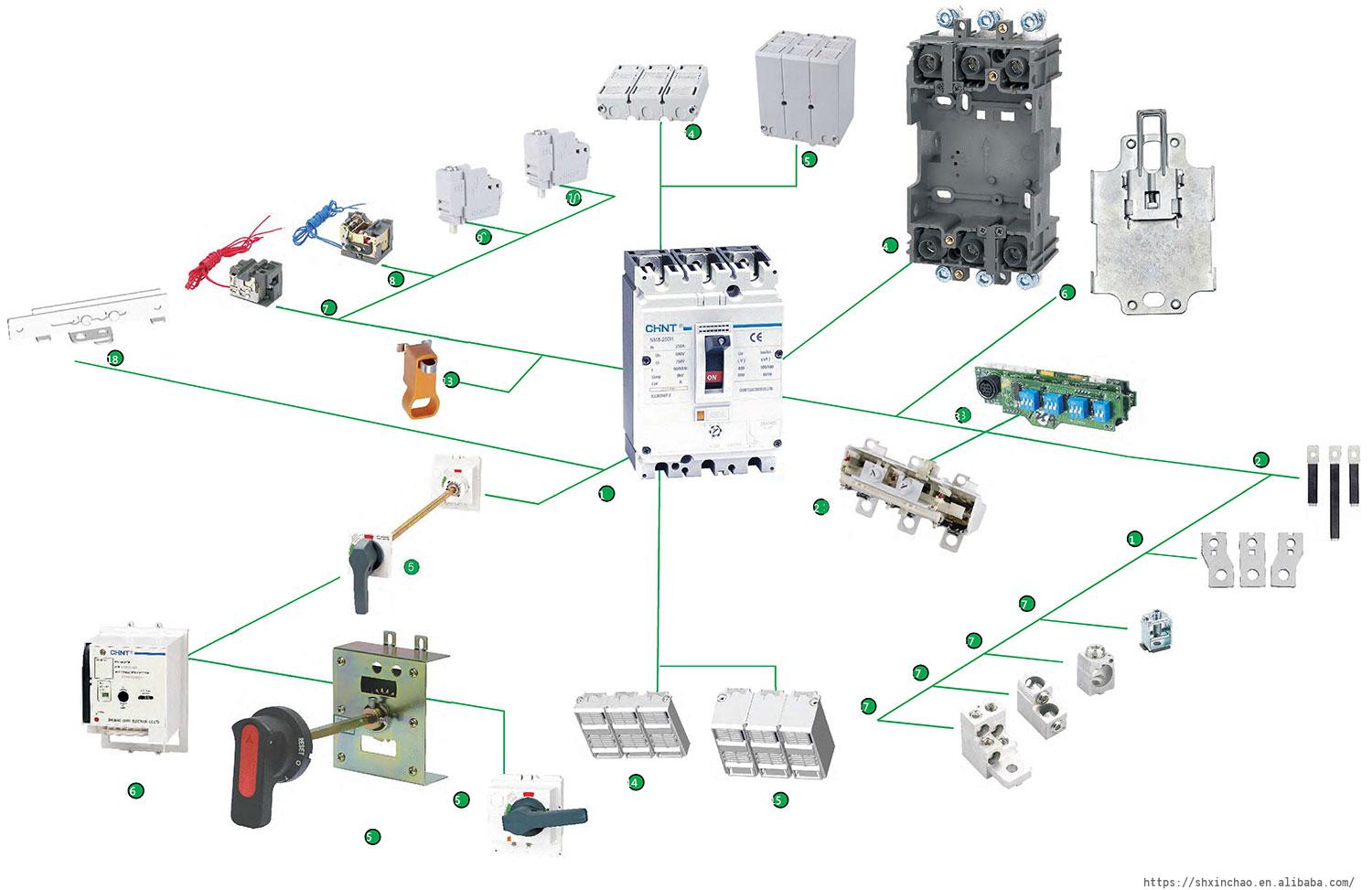

Product Overview

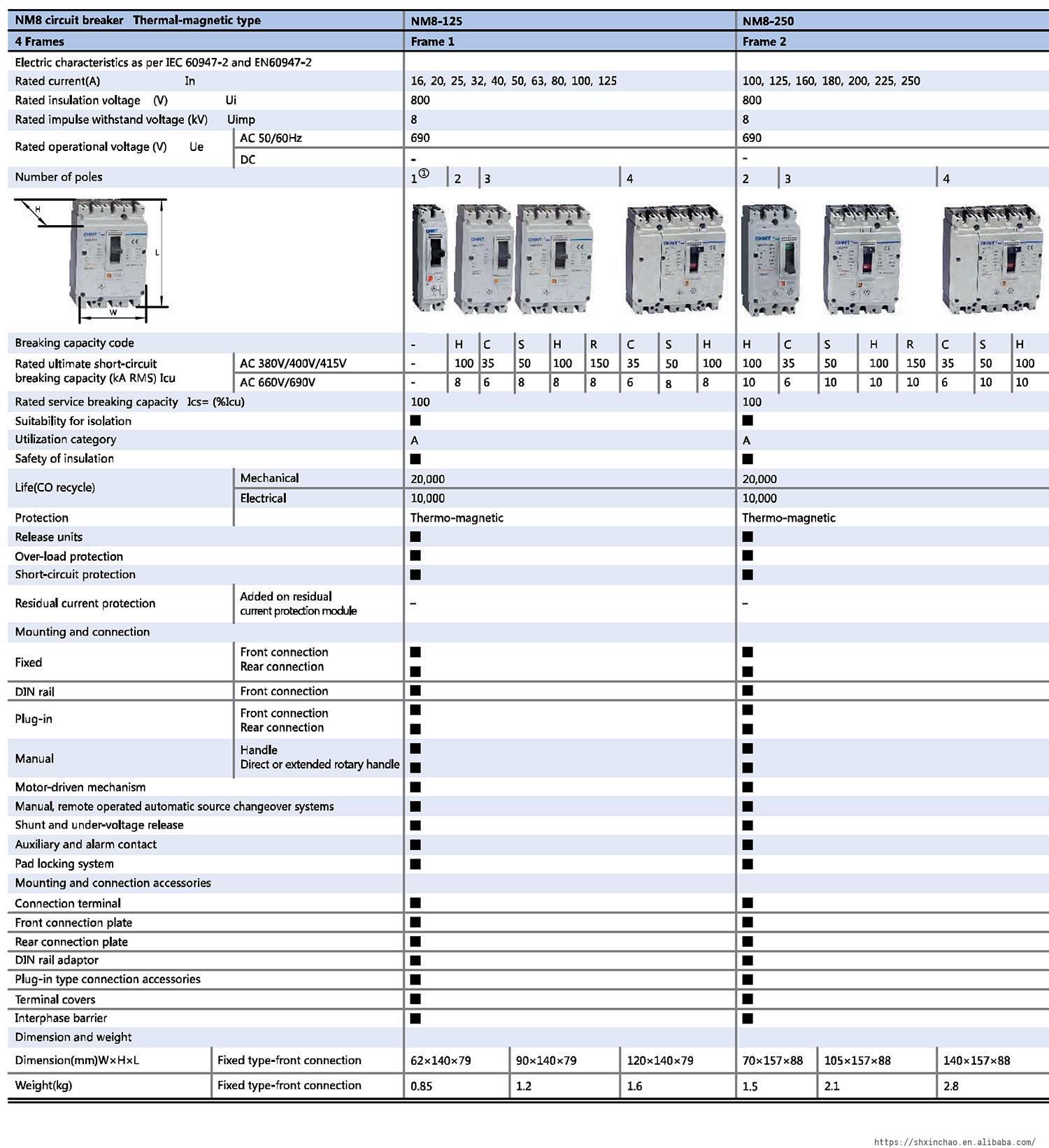

Specification:





Additional information
Weight 2 kg
Dimensions 25 × 25 × 25 cm
Rated Current

16A ~ 1250A
Poles Number

3, 2, 4
