Meter Main Center 100A 125A Single Phase 4 Jaws MM0202ML1100S CHM2100MR2 Overhead Underground Combination Electric Meter Socket
Back to products
Newtrend NOARK Electric Circuit Breaker Circuit Breaker - DIN Rail Mount for Home and Commercial Electrical Distribution, UL CE Certified

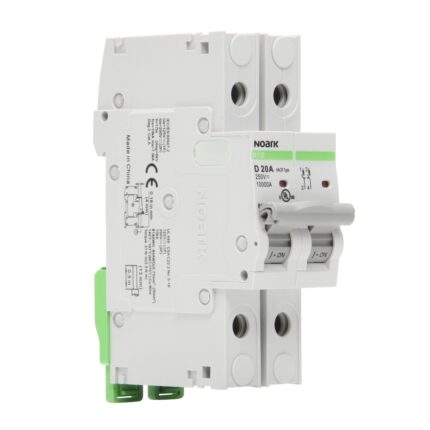

Noark Electric B1D series UL489 listed 125Vdc 250Vdc 1A to 63A DC MCB DIN Rail Miniature Circuit Breaker

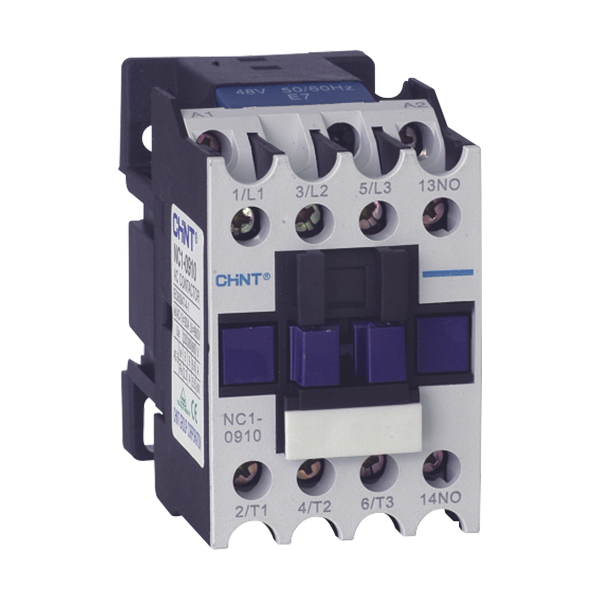

Chint NC1 NC1-0910 NC1-1210 NC1-1810 NC1-2510 NC1-2508 NC1-3210 NC1-4011 NC1-5011 NC1-6511 NC1-8011 NC1-9511 CHNT AC Contactor

Electricity Type:AC
Brand Name:Chint
Place of Origin:China
Model Number:NC1
Phase:3
Main Circuit Rating Current:9A – 95A
SKU: 62457643409 Category:
Description

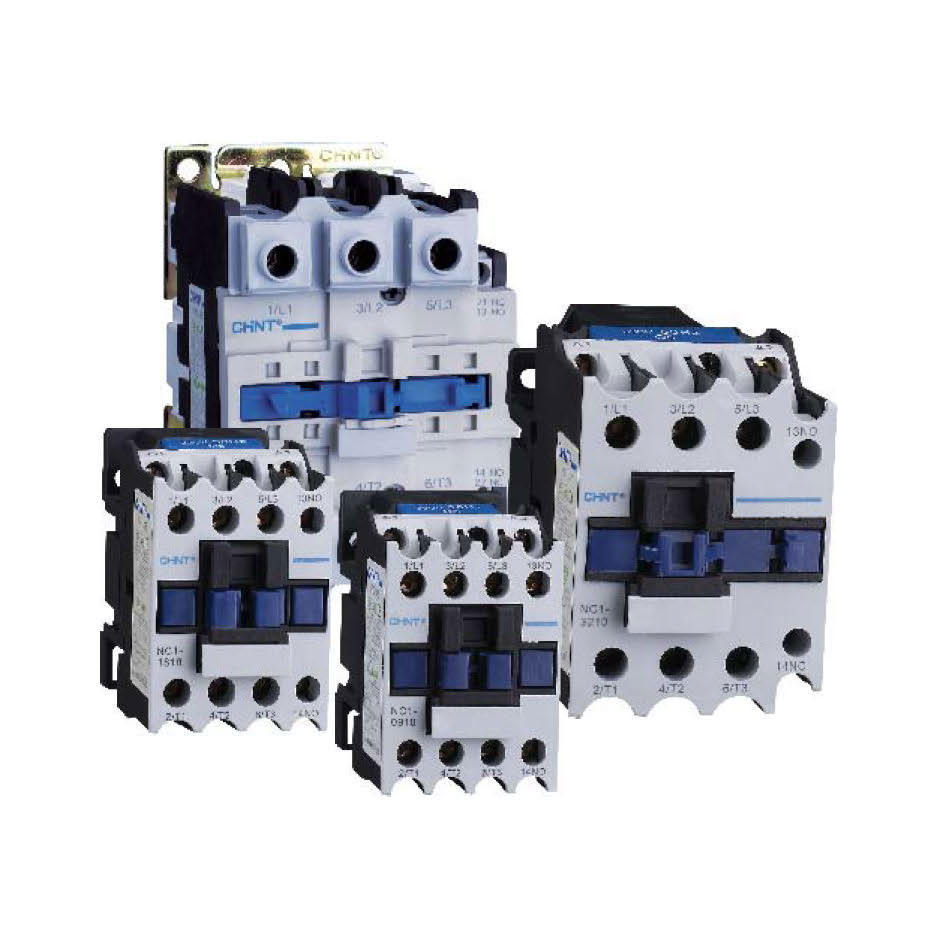

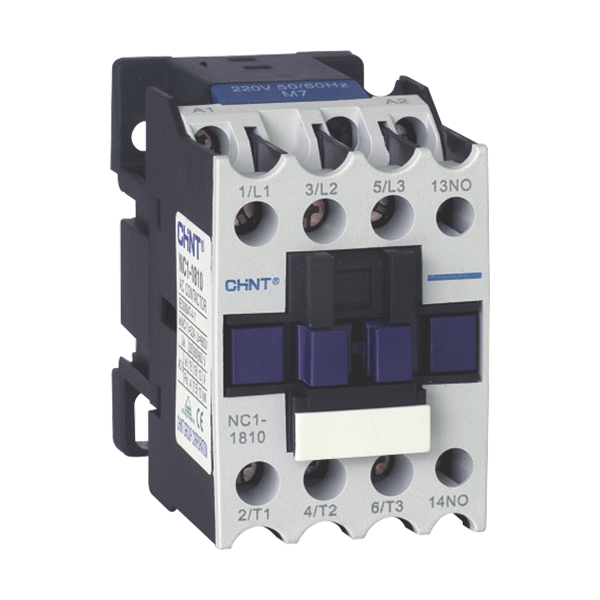

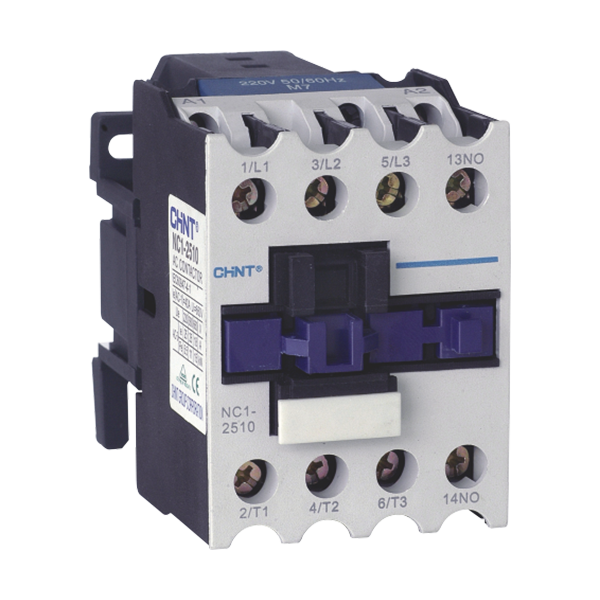

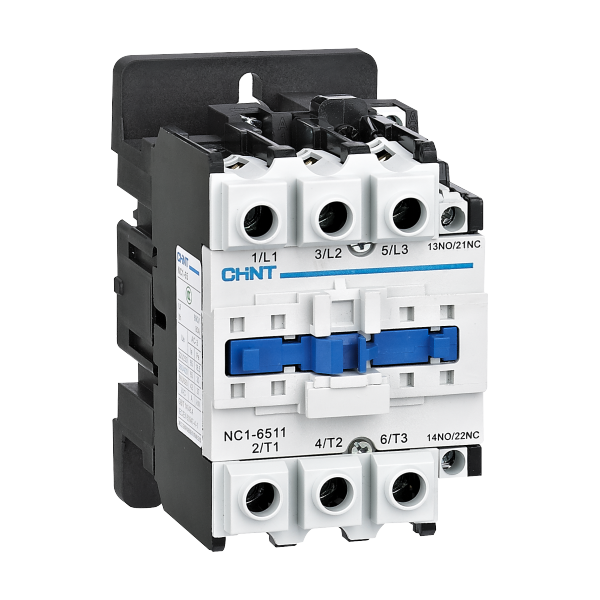

Chint NC1 NC1-0910 NC1-1210 NC1-1810 NC1-2510 NC1-2508 NC1-3210 NC1-4011 NC1-5011 NC1-6511 NC1-8011 NC1-9511 CHNT Contactor


Product Description

Electrical ratings: AC 50/60Hz, 690V, up to 95A

Application: frequent start-up and control of AC motors, remote making & breaking circuits, protect circuit from overload when assembling with thermal overload relay.

Utilization category: AC-3, AC-4

Altitude: ≤2000m

Ambient temperature: -5℃ ~ +40℃

Mounting category: III

Mounting conditions: inclination between the mounting plane and the vertical plane should not exeed ±5°

Standard: IEC/EN 60947-4-1

Type designation

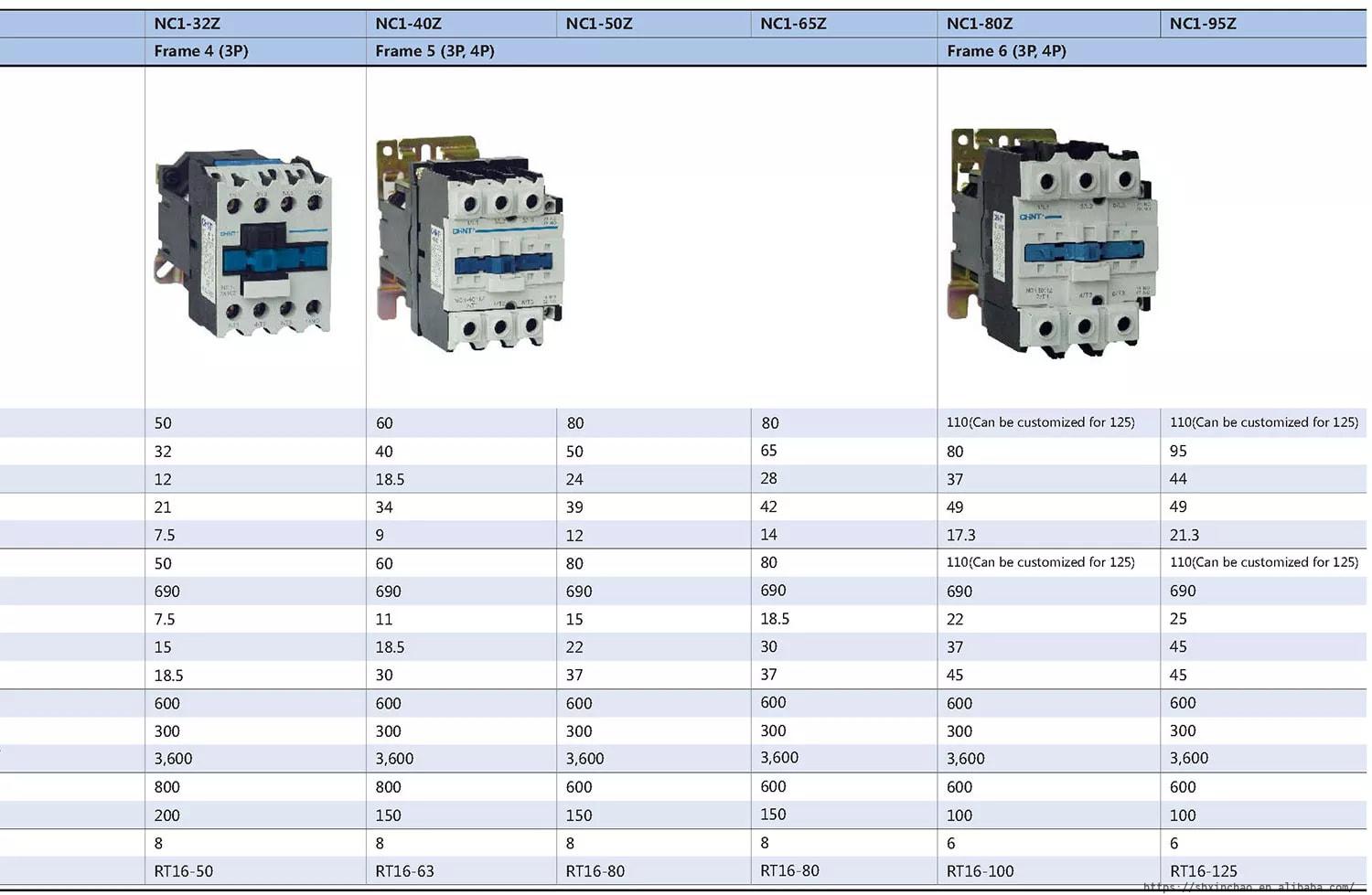

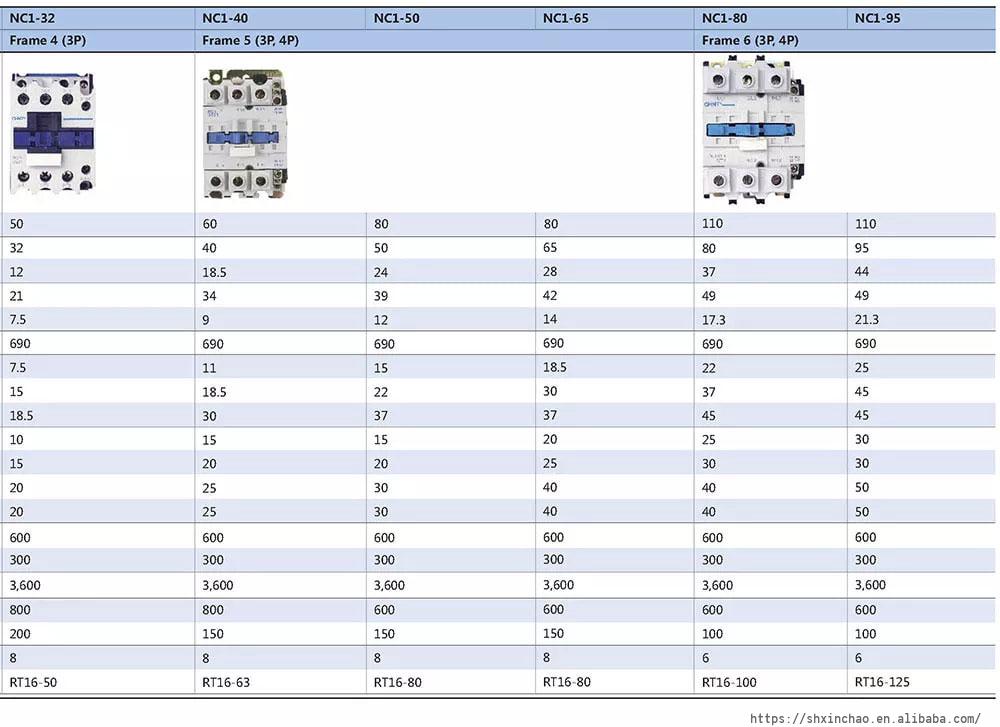

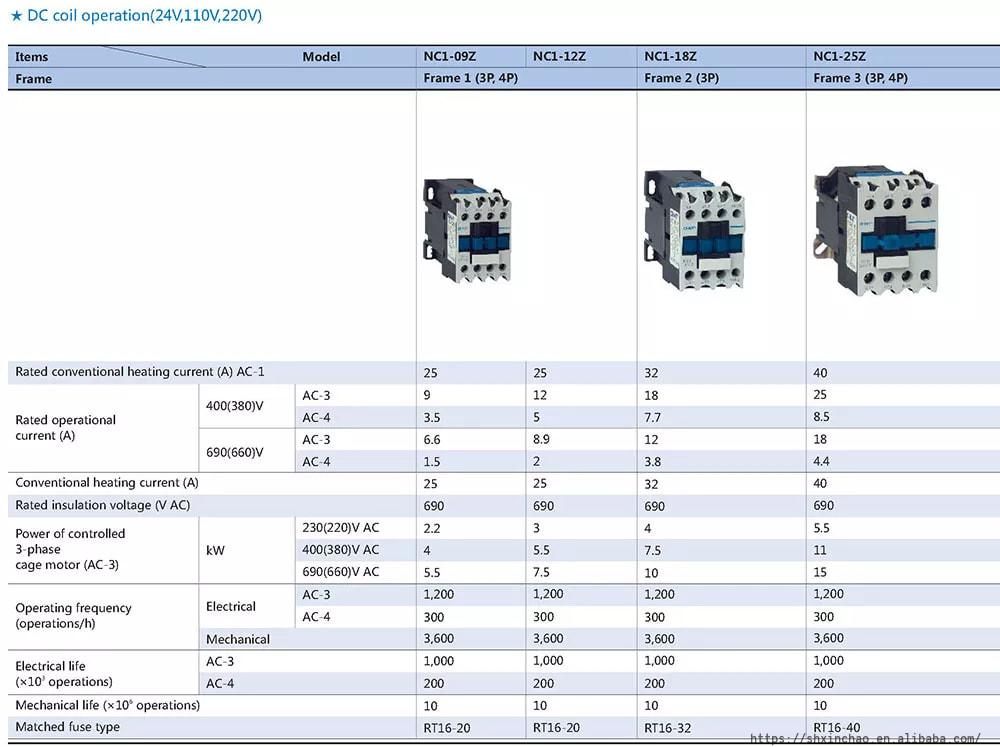

Specification:



Additional information
Weight 2 kg
Dimensions 25 × 25 × 25 cm
Number of Pole

3
Main Circuit Rating Voltage

380V, 240v, 230v, 220v, 120v, 24v
