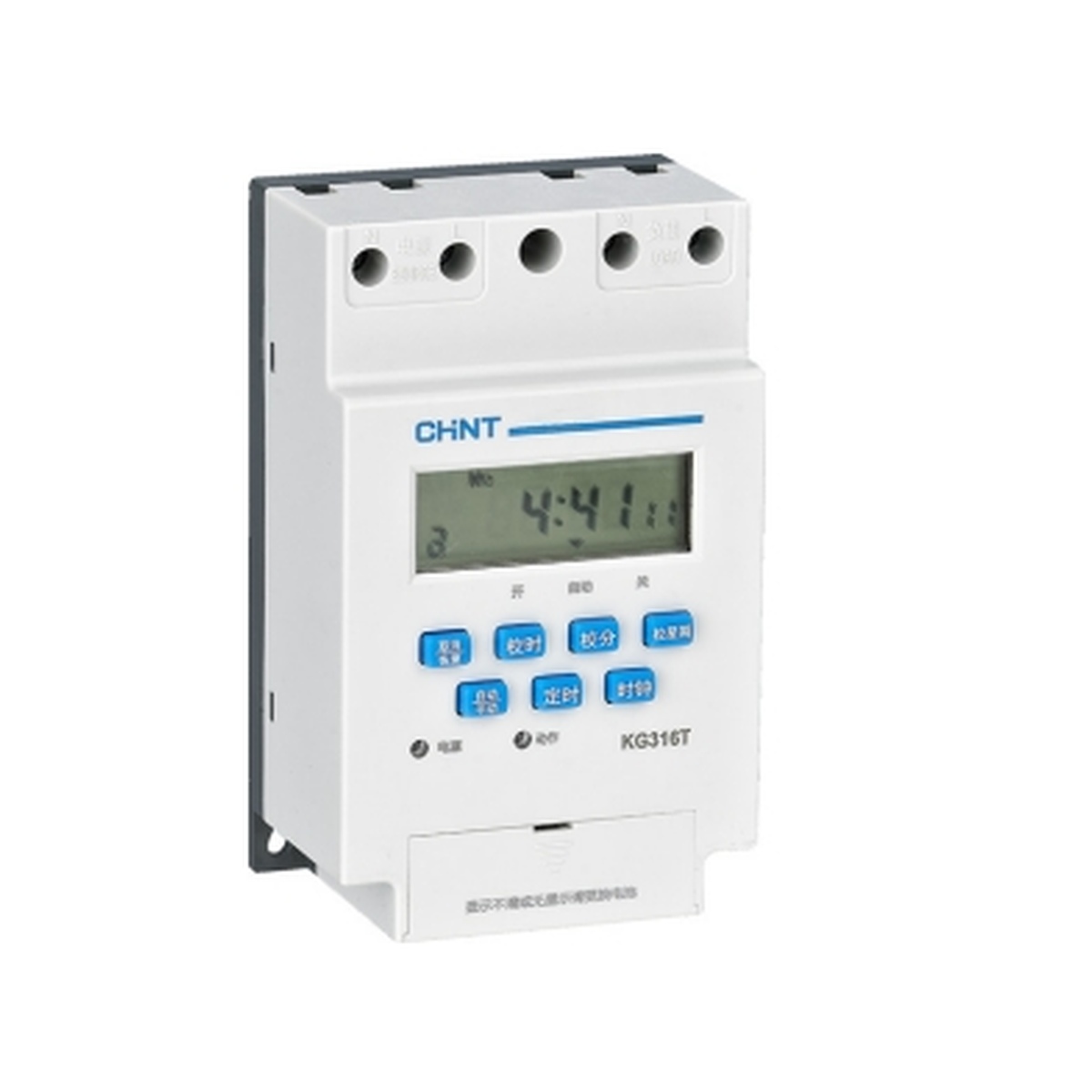

Product Overview
The KG316T Time Switch is used to automatically turn electrical devices ON or OFF at preset times. It is commonly applied to streetlights, advertising boards, and factory equipment, providing reliable timing control for various applications.
Main Features
- 16 Programmable Groups: Up to 16 ON/OFF timing schedules
- Battery Backup: Replaceable AAA battery preserves settings during power loss
- Flexible Installation: Wall or panel installation options
- Three-Phase Control: Can control 3-phase equipment via external contactor
- Multiple Voltage Support: Compatible with 220V and 380V systems
- KG316T-D Option: DIN-rail mounting version available
Technical Specifications
| Parameter | Specification |
|---|---|
| Timing Programs | 16 ON/OFF groups |
| Power Supply | AC 220V (standard) |
| Backup Battery | Replaceable AAA battery |
| Installation | Wall or panel mount (KG316T), DIN rail (KG316T-D) |
| Control Capability | Single-phase or 3-phase via external contactor |
Technical and Application Notes
The KG316T time switch provides reliable automatic control for electrical devices. By connecting an external AC contactor, it can control three-phase loads powered by 220V or 380V systems. The replaceable AAA battery ensures that time settings and schedules are maintained even during extended power outages.
Typical Applications
- Streetlight automatic control
- Advertising billboard lighting
- Factory equipment scheduling
- Building lighting automation
- Irrigation system control
- Ventilation system timing
Ordering Support
When ordering KG316T time switches, please specify:
- Mounting type (wall/panel KG316T or DIN rail KG316T-D)
- Control voltage requirements
- Single-phase or three-phase control needed
- External contactor requirements (if controlling 3-phase loads)
Product Catalog

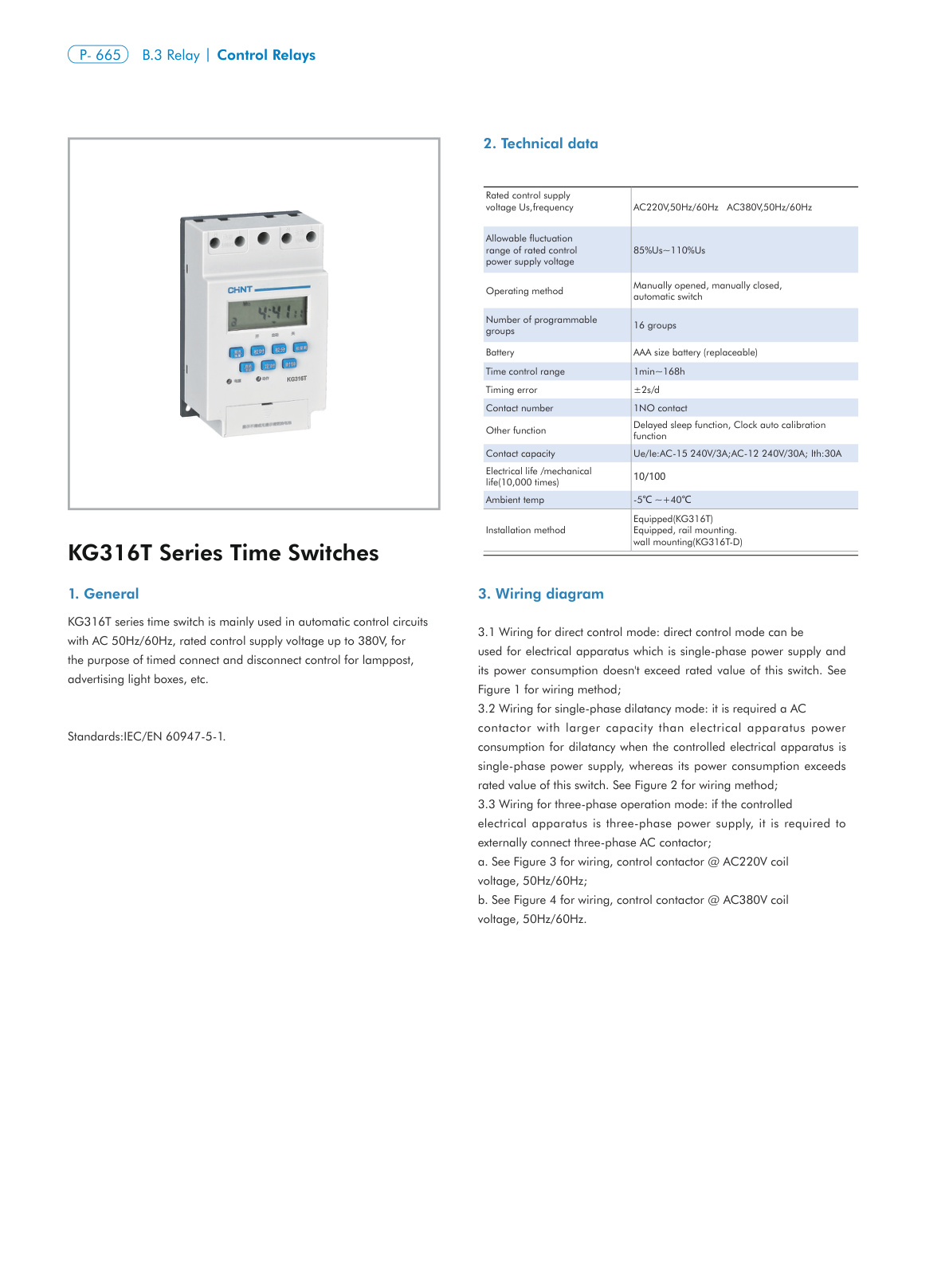

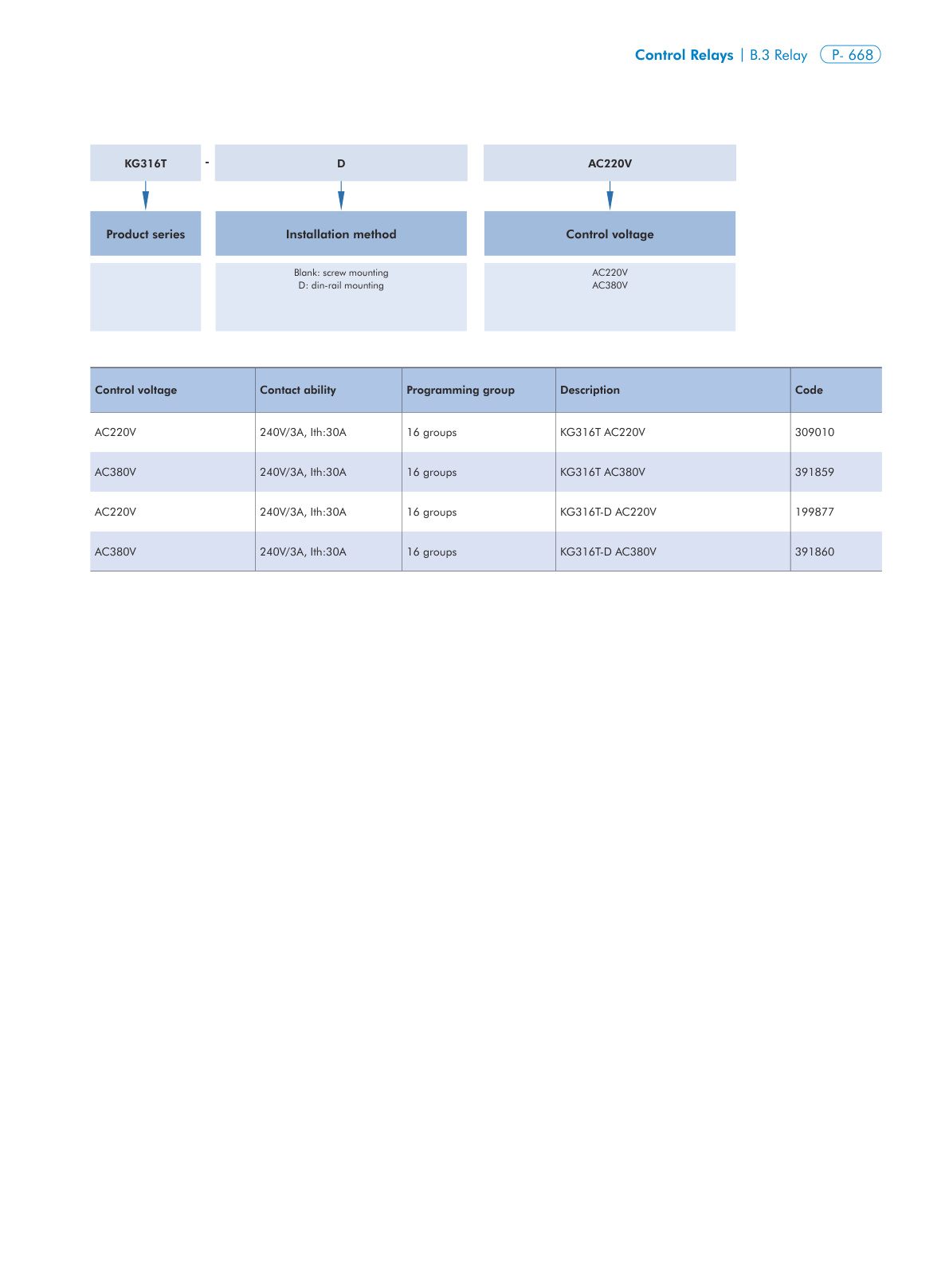

For detailed specifications and technical data, please refer to the product catalog below.
