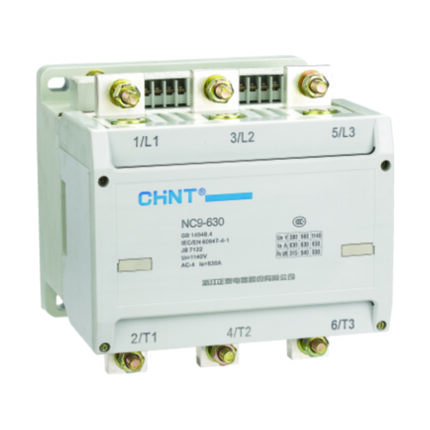

Chint original NC9 NC9-160 NC9-250 NC9-400 NC9-630 NC9-800 NC9-1000 160A 250A 400A 630A 800A 1000A CHNT Vacuum Contactor
Back to products
Newtrend H883c4da543af4821b79620d61b06e47bq - UL CE Certified Low Voltage Electrical Product, 20+ Years Manufacturing Experience
Chint original NCK5 Definite Purpose Contactor NCK5-25 NCK5-32 NCK5-40 CHNT Air Conditioner Contactor

Chint CJ20 CJ20-10 CJ20-16 CJ20-25 CJ20-40 CJ20-63 CJ20-100 CJ20-160 CJ20-250 CJ20-400 CJ20-630 CJ20-630J CHNT Contactor

Electricity Type:AC
Brand Name:Chint
Place of Origin:China
Model Number:CJ20
Phase:3
Main Circuit Rating Current:10A ~ 630A
SKU: 1600877188657 Category:
Description

Chint CJ20 CJ20-10 CJ20-16 CJ20-25 CJ20-40 CJ20-63 CJ20-100 CJ20-160 CJ20-250 CJ20-400 CJ20-630 CJ20-630J CHNT Contactor



Chint CJ20 AC Contactor (hereinafter referred to as contactor) is mainly used in circuits of AC 50Hz (or 60Hz), and rated voltage up to 660V, and rated operating current up to 630A, for long-distance switching on/off the circuits, and it can be used with appropriate thermal overload relay in a combined way, in order to protect circuits that may subject to operating overload.



Standard: IEC 60947-4-1.

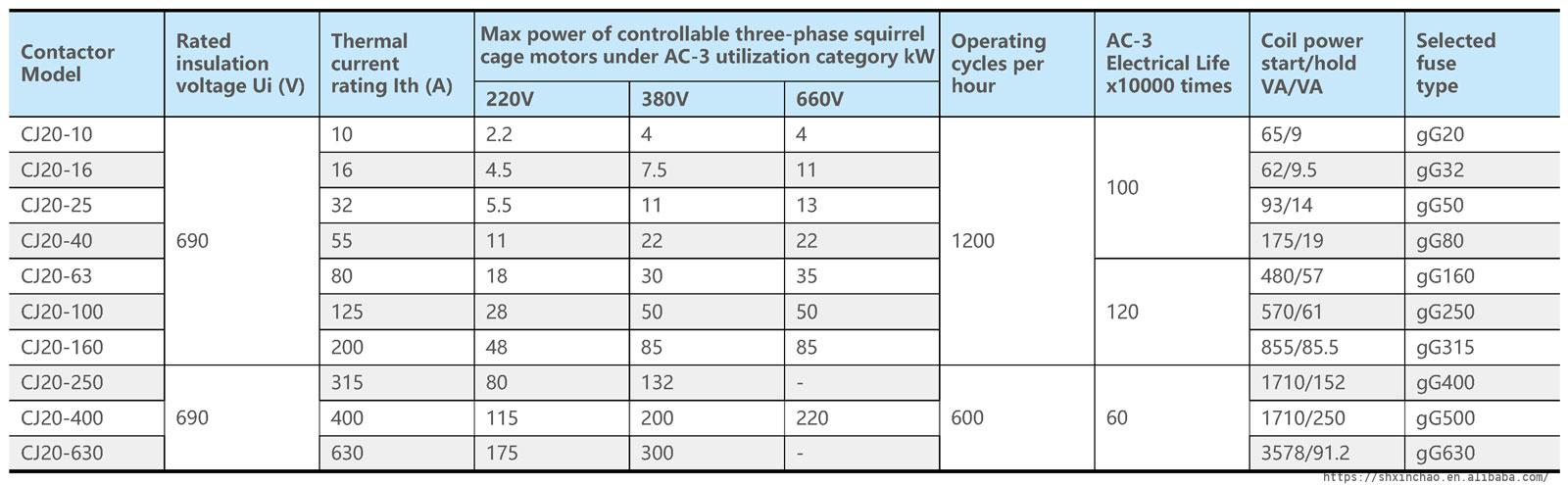

Technical parameters:

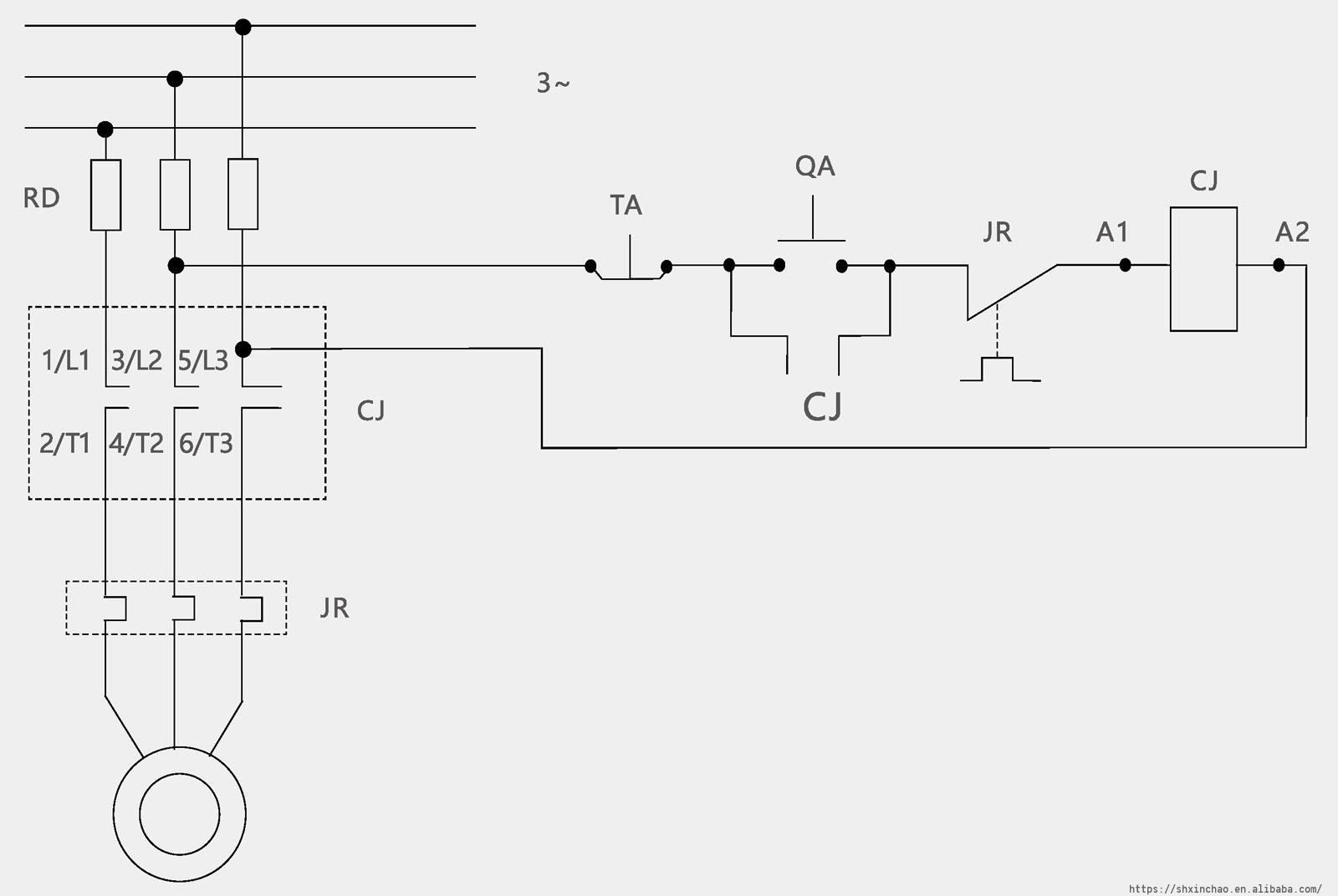

Wiring diagram:

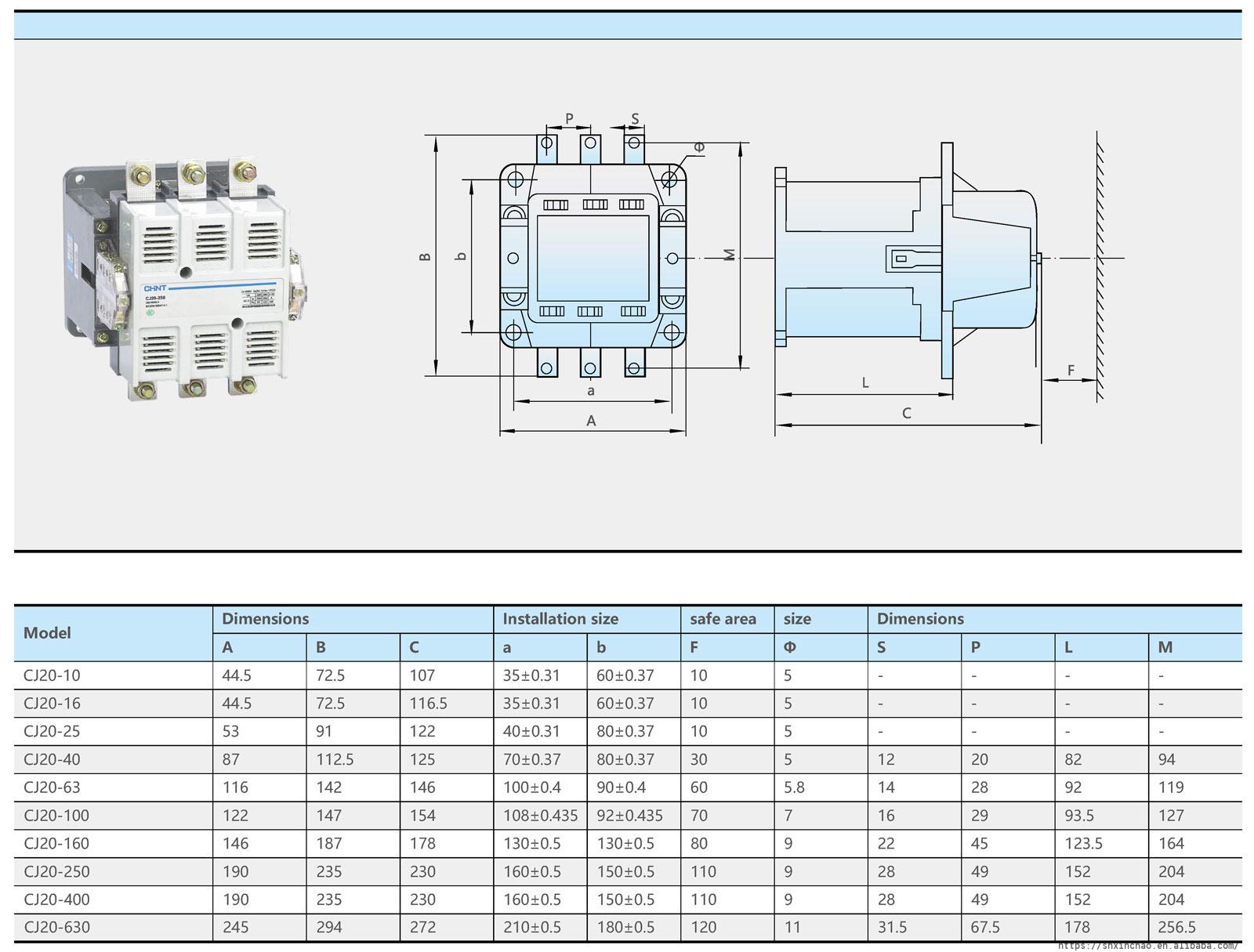

Dimensions:

Additional information
Weight 2 kg
Dimensions 25 × 25 × 25 cm
Number of Pole

3
Main Circuit Rating Voltage

24V, 110V, 220V, 380V
