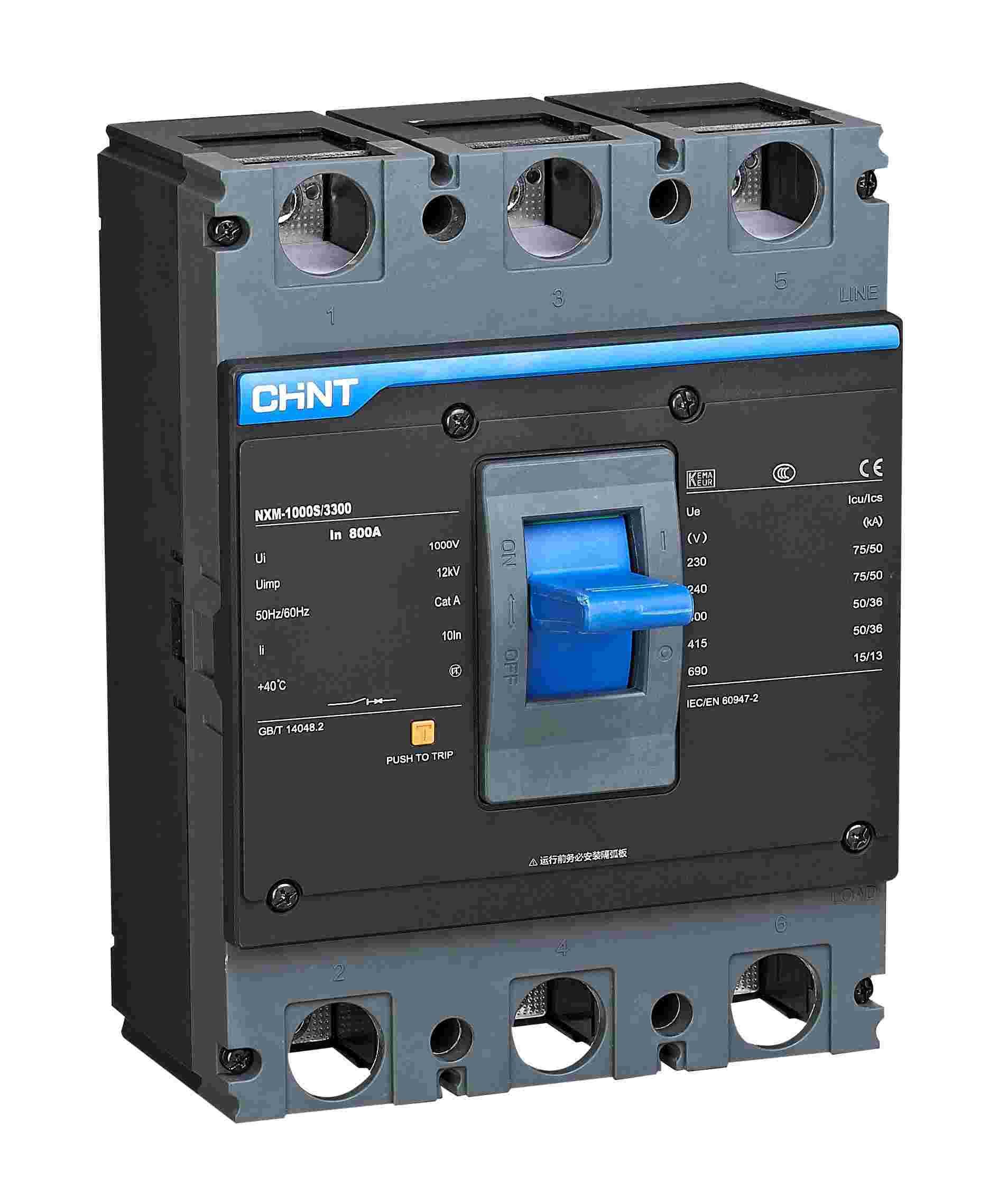

Chint NXM NXM-125S NXM-250S NXM-400S NXM-630S NXM-800S 3300 160A 250A 350A 400A 630A 800A CHNT MCCB Molded Case Circuit Breaker
Chint NXM moulded case circuit breaker will provide protection for the circuit and equipment in case of overload, short circuit and under voltage condition occurred in the power distribution circuit. Besides, it can also provide protection of overload, short circuit and under voltage for the non-frequent start of motor.
Frame size:
NXM series moulded case circuit breaker: 63A, 125A, 160A, 250A, 400A, 630A, 800A, 1000A, 1250A, 1600A
NXMS series electronic breaker: 160A, 250A, 400A, 630A, 1000A, 1250A, 1600A
Rated operational voltage: Ue : 220V/230V/240V, 380V/400V/415V, 500V , 690V
Breaking capacity code: E, S, F, H
Number of poles: 2P, 3P, 4P

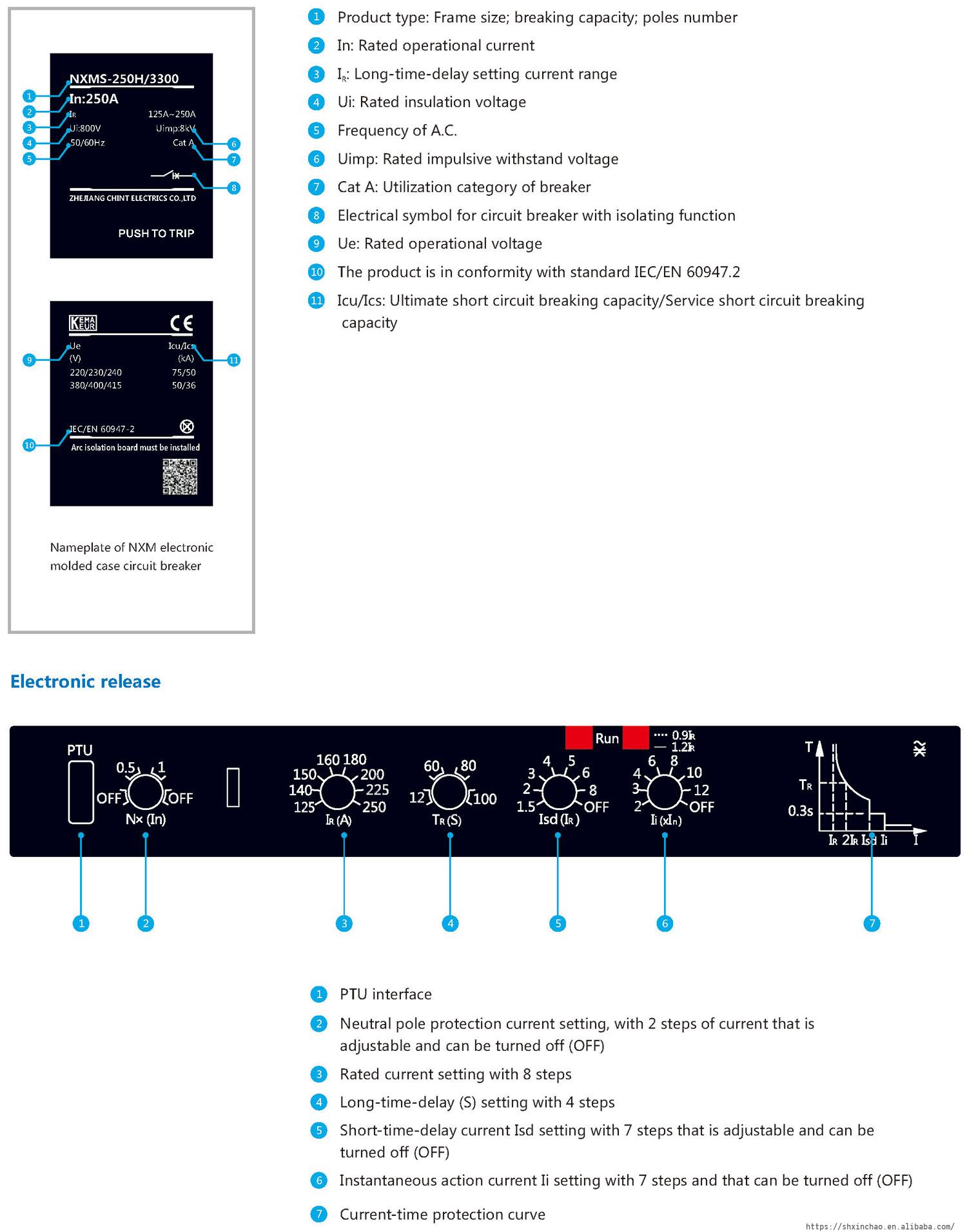

Release type:thermal magnetic fixed type; magnetic fixed type; electronic type.
Installation method: Fixed type; plug-in type
