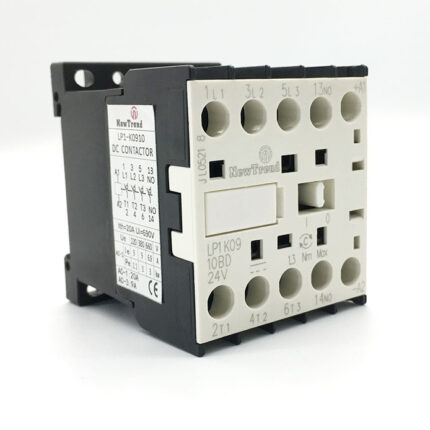

LP1K06 LP1K09 LP1K12 3P NO LP1K0610BD LP1K0910BD LP1K1210BD 6A 9A 12A NC LP1K0601BD LP1K0901BD LP1K1201BD 24VDC LP1K Contactor
Back to products
Newtrend HTB1iB3MJpXXXXXpXFXXq6xXFXXXN-1 - UL CE Certified Low Voltage Electrical Product, 20+ Years Manufacturing Experience
Circular solderless terminal RED BLUE YELLOW crimp terminal Stud 3mm 4mm 5mm 6mm 8mm 10mm RV Pre Insulated Ring Terminals

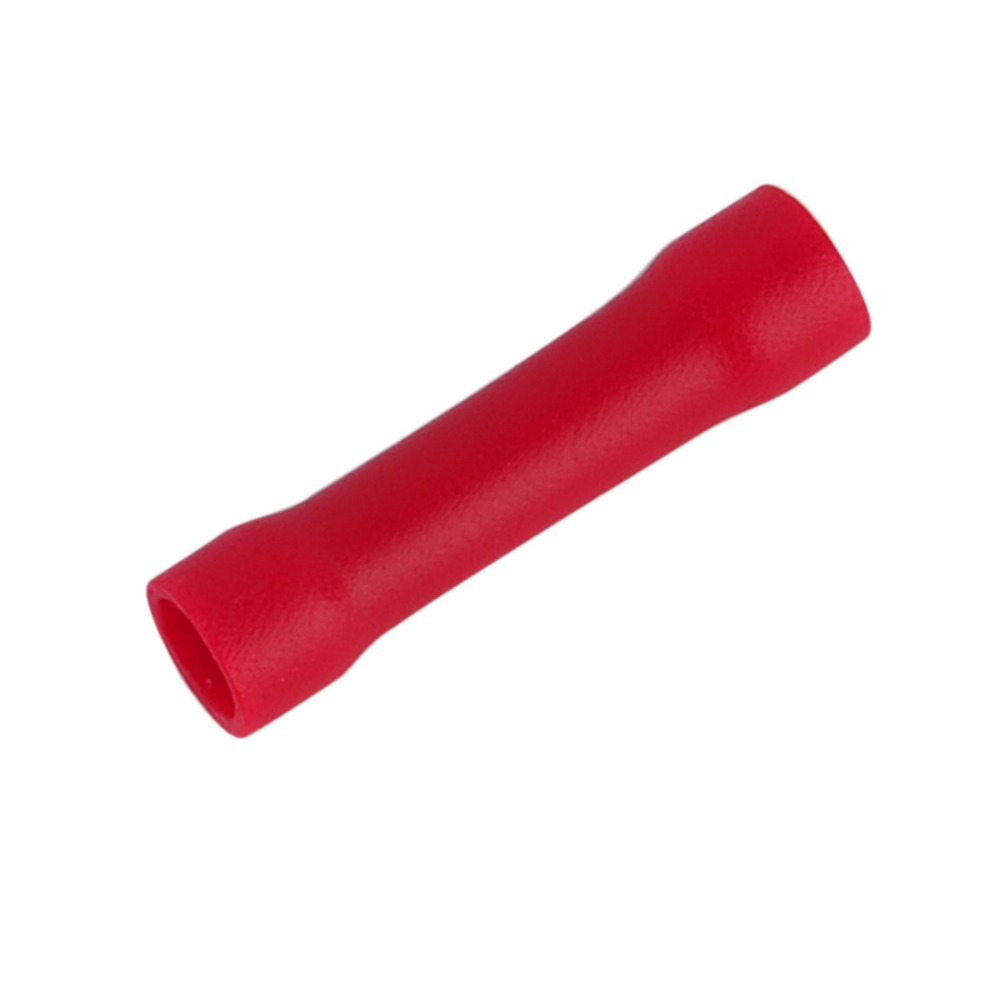

Butt Crimp Terminal BV1.25 BV2 BV5.5 BV8 BV14 BV22 BV38 splice Electrical wiring Vinyl Insulated Butt Connector

Type:SPLICE
Brand Name:Newtrend or OEM brand
Place of Origin:China
Model Number:BV1.25 BV2 BV5.5 BV8 BV14 BV22 BV38
SKU: 1770408865674829824 Category:
Description

Butt Crimp Terminal BV1.25 BV2 BV5.5 BV8 BV14 BV22 BV38 splice Electrical wiring Vinyl Insulated Butt Connector

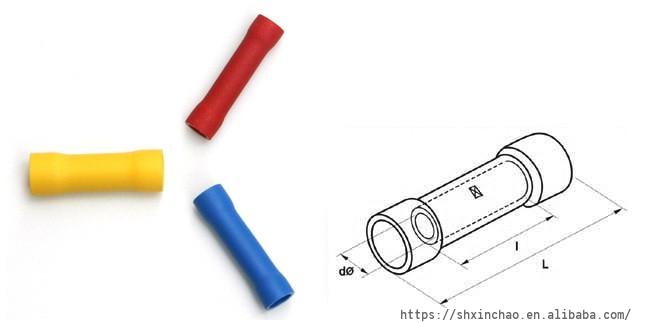

ITEM NO Cable Size DIMENSION Imax INSULATION
COLOR
A.W.G mm2 l dφ L
mm mm mm
BV1.25 22-16 0.5-1.5 15 4.4 26 16A Red
BV2 16-14 1.5-2.5 15 5.1 26 27A Blue
BV5.5 12-10 4-6 15 6.8 26 48A Yellow
BV8 #8 6-10 21 8.5 32 62A Red
BV14 #6 10-16 26 9.5 42 88A Blue
BV22 #4 16-25 29 10.5 50 115A Yellow
BV38 #2 35-50 32 14.5 55 160A Red
