Combined RCD MCB Magnetic or Electronic type Australia ESV Two Pole 30mA 100mA AC or A type 10KA 6KA RCBO with CE CB certificate
– real 6KA and 10KA breaking capacity
– same shell make magnetic or electronic type, electronic type could pass Australia ESV test
– AC type or A type

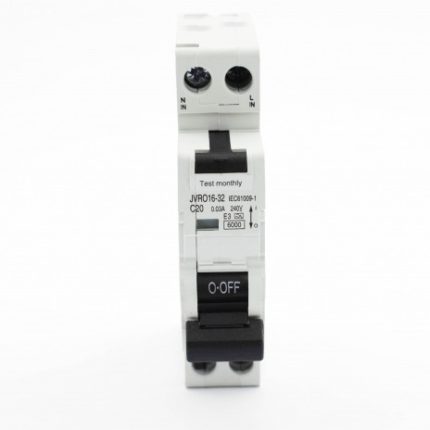

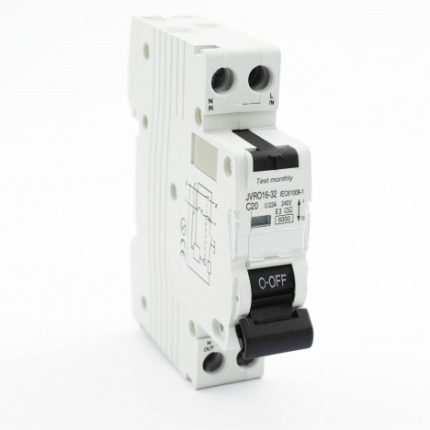

RCBO-2P Residual Current Circuit Breaker with Overload Protection
Construction and Feature:
– Provides protection against earth fault/leakage current, short circuit, overload and function of isolation.
– Provides complementary protection again direct contact by human body
– Effectively protects electric equipment against insulating failure
– Provides comprehensive protection to household and commercial distribution systems
Technical Data:
– Type: Electro-magnetic type or Electronic type
– Residual current characteristics: AC, A
– Pole No.: 1P+N
– Tripping curve: B, C, D
– Rated short-circuit capacity: 10KA
– Rated current (A): 1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40
– Rated Voltage: 240VAC or 110V/240VAC
– Rated Frequency: 50/60Hz
– Rated residual operating current: 10mA, 30mA, 100mA, 300mA
– Tripping duration: instantaneous ≤0.1s
– Electro-mechanical endurance: 4000 cycles
– Connection terminal: pillar terminal with clamp
– Connection capacity:
Rigid conductor 16mm2
Terminal connection height: 21.5mm
– Installation:
On symmetrical DIN rail 35mm
Panel Mounting
Wiring Diagram
Overall & Installation Dimensions:
Characteristic Curve:
Wiring Diagram:
Overload Current Protection Characteristics:
Rated Current Action Breaking Time:
