Product Overview
The KG10M Time Switch is designed for automatically controlling electrical circuits such as street lights, advertising lamps, and industrial systems, switching them ON or OFF at preset times. It provides flexible scheduling for daily or weekly operation with high precision timing.
Main Features
- 16 Programmable Groups: Up to 16 ON/OFF timing programs
- High Precision: ±2 seconds per day accuracy
- Power Loss Protection: Built-in rechargeable battery preserves settings
- Panel Mount Design: 45.5mm × 45.5mm opening for easy integration
- Flexible Scheduling: Daily and weekly program options
- Wide Application: Street lights, advertising boards, factory equipment
Technical Specifications
| Parameter | Specification |
|---|---|
| Timing Programs | 16 ON/OFF groups |
| Timing Accuracy | ±2 seconds per day |
| Power Supply | AC 220V (standard) |
| Backup Power | Built-in rechargeable battery |
| Mounting | Panel mount (45.5mm × 45.5mm) |
Technical and Application Notes
The KG10M time switch is mainly used for the timed connection and disconnection control of street lamps, advertising lamps, and industrial equipment. Its panel-mount design allows easy integration into control panels or switchboards. The built-in rechargeable battery ensures that timing programs and settings are preserved during power interruptions.
Typical Applications
- Street lighting control
- Advertising lamp scheduling
- Industrial equipment timing
- Building automation systems
- Irrigation system control
- Factory equipment scheduling
Ordering Support
When ordering KG10M time switches, please specify:
- Control voltage (220V AC standard, other voltages available)
- Panel cutout dimensions confirmation
- Number of timing programs required
- Any special function requirements

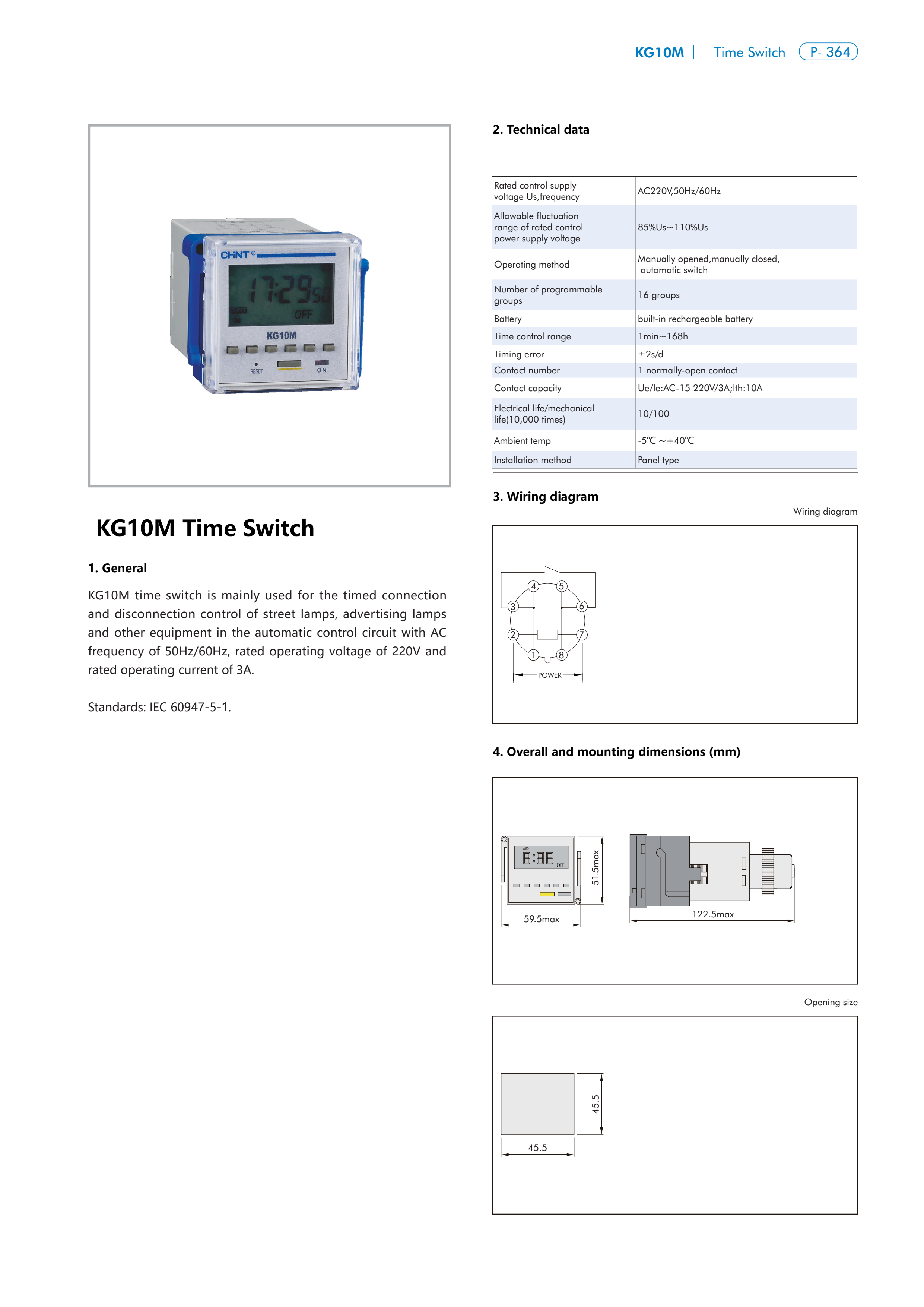

Product Catalog
For detailed specifications and technical data, please refer to the product catalog below.
